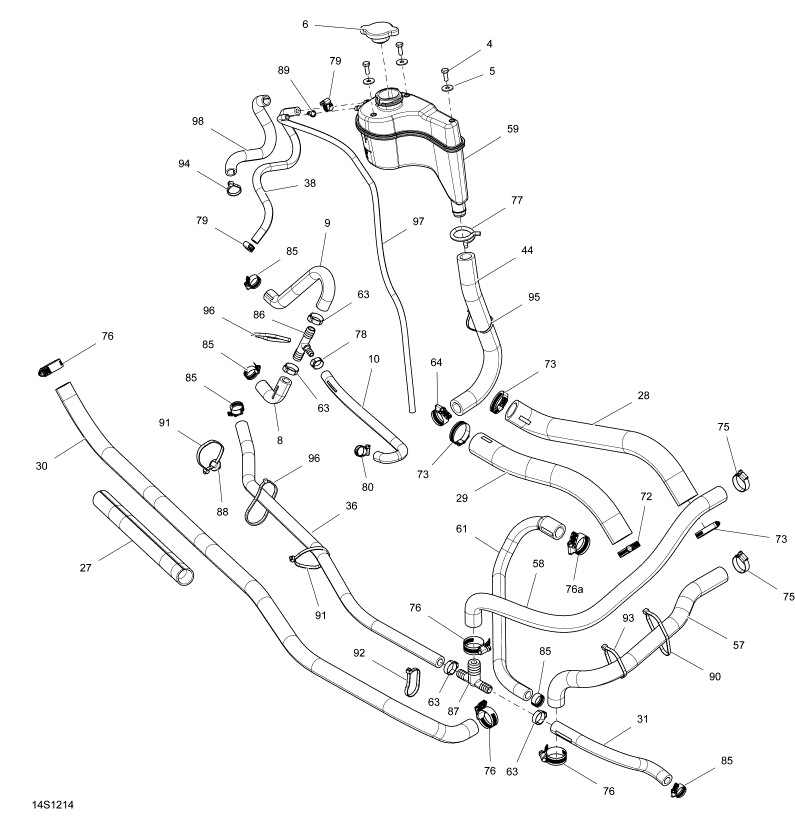

見出番号 |
部品番号 |
部品名 |
数量 |
4 |
207361660 |
SCREW-HEX.CAP DIN.933A2 S.GRIP
Hex.
|
|
5 |
234062600 |
WASHER-FLAT DIN.9021B-A2
Flat
|
|
6 |
276000100 |
PRESSURE CAP ASSY
Pressure
|
|
8 |
276000245 |
HOSE-FORMED
Lower
|
|
9 |
276000244 |
HOSE-FORMED
Formed
|
|
10 |
276000246 |
HOSE-FORMED
Formed
|
|
27 |
409902200 |
TUBING-25MM
Tubing
|
|
28 |
276000240 |
HOSE
Radiator
|
|
29 |
276000241 |
HOSE
Radiator
|
|
30 |
276000238 |
HOSE-FORMED
Formed
|
|
31 |
276000239 |
HOSE
Formed
|
|
36 |
276000151 |
HOSE-12 5MM (PC=1M)
Hose
|
|
38 |
275500549 |
HOSE-1/4 (10M/PAC)
Hose
|
|
44 |
276000099 |
HOSE-19MM
Hose
|
|
57 |
276000099 |
HOSE-19MM
Hose
|
|
58 |
276000099 |
HOSE-19MM
Hose
|
|
59 |
276000265 |
TANK-COOLANT
Coolant
|
|
61 |
276000305 |
HOSE-FORMED
Formed
|
|
63 |
293650012 |
CLAMP-OETIKER
Oetiker
|
|
64 |
293650019 |
CLAMP-TRIDON
Tridon
|
|
72 |
293650185 |
CLAMP-TRIDON
Tridon
|
|
73 |
293650185 |
CLAMP-TRIDON
Tridon
|
|
75 |
293650051 |
CLAMP-TRIDON
Tridon
|
|
76 |
293650051 |
CLAMP-TRIDON
Tridon
|
|
77 |
293650115 |
CLAMP-SPRING
Spring
|
|
78 |
293650030 |
CLAMP-OETIKER 185
Oetiker
|
|
79 |
293650170 |
HOSE CLAMP
Tridon
|
|
80 |
293650171 |
HOSE CLAMP
Tridon
|
|
85 |
293650172 |
HOSE CLAMP
Tridon
|
|
86 |
293710116 |
FITTING-T
T-Fitting
|
|
87 |
293710132 |
FITTING-T
T-Fitting
|
|
88 |
293730040 |
DART-MOUNT
Mount
|
|
89 |
293750001 |
TIE-RAP 94MM
Tie-Rap
|
|
90 |
293750008 |
TIE-RAP 350MM
Tie-Rap
|
|
91 |
293750008 |
TIE-RAP 350MM
Tie-Rap
|
|
92 |
293750008 |
TIE-RAP 350MM
Tie-Rap
|
|
93 |
293750008 |
TIE-RAP 350MM
Tie-Rap
|
|
94 |
293750001 |
TIE-RAP 94MM
Tie-Rap
|
|
95 |
414115200 |
TIE-RAP 180MM
Tie-Rap
|
|
96 |
293750008 |
TIE-RAP 350MM
Tie-Rap
|
|
97 |
415080200 |
POLYURETHANE HOSE
Hose,
|
|
98 |
409901800 |
TUBING - INSULATING 13 MM
Tubing
|
|
76a |
293650172 |
HOSE CLAMP
Tridon
|
|
|
