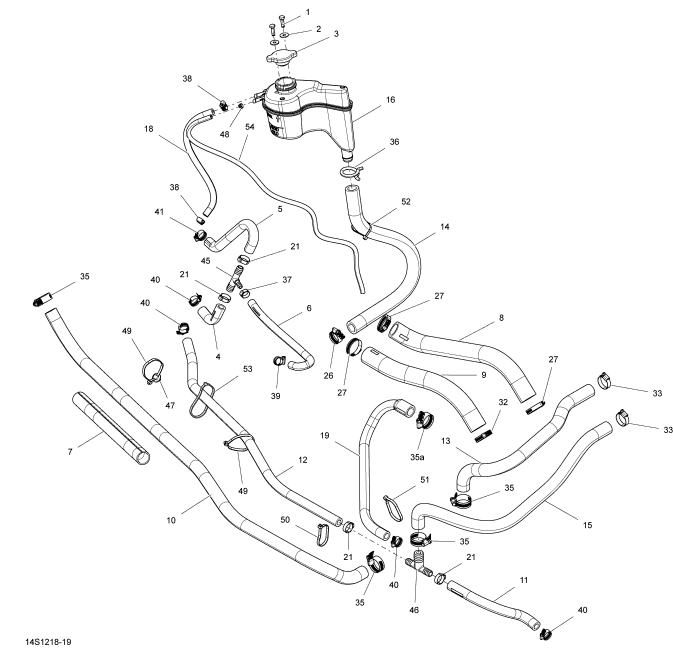

見出番号 |
部品番号 |
部品名 |
数量 |
1 |
207362060 |
SCREW-HEX CAP DIN933A2
Hex.
|
|
2 |
234062600 |
WASHER-FLAT DIN.9021B-A2
Flat
|
|
3 |
276000100 |
PRESSURE CAP ASSY
Pressure
|
|
4 |
276000245 |
HOSE-FORMED
Lower
|
|
5 |
276000244 |
HOSE-FORMED
Formed
|
|
6 |
276000246 |
HOSE-FORMED
Formed
|
|
7 |
409902200 |
TUBING-25MM
Tubing
|
|
8 |
276000240 |
HOSE
Radiator
|
|
9 |
276000241 |
HOSE
Radiator
|
|
10 |
276000238 |
HOSE-FORMED
Formed
|
|
11 |
276000239 |
HOSE
Formed
|
|
12 |
276000151 |
HOSE-12 5MM (PC=1M)
Hose
|
|
13 |
276000099 |
HOSE-19MM
Hose
|
|
14 |
276000099 |
HOSE-19MM
Hose
|
|
15 |
276000099 |
HOSE-19MM
Hose
|
|
16 |
276000265 |
TANK-COOLANT
Coolant
|
|
18 |
275500549 |
HOSE-1/4 (10M/PAC)
Hose
|
|
19 |
276000305 |
HOSE-FORMED
Formed
|
|
21 |
293650012 |
CLAMP-OETIKER
Oetiker
|
|
26 |
293650019 |
CLAMP-TRIDON
Tridon
|
|
27 |
293650185 |
CLAMP-TRIDON
Tridon
|
|
32 |
293650185 |
CLAMP-TRIDON
Tridon
|
|
33 |
293650051 |
CLAMP-TRIDON
Tridon
|
|
35 |
293650051 |
CLAMP-TRIDON
Tridon
|
|
36 |
293650115 |
CLAMP-SPRING
Spring
|
|
37 |
293650030 |
CLAMP-OETIKER 185
Oetiker
|
|
38 |
293650170 |
HOSE CLAMP
Tridon
|
|
39 |
293650171 |
HOSE CLAMP
Tridon
|
|
40 |
293650172 |
HOSE CLAMP
Tridon
|
|
41 |
293650172 |
HOSE CLAMP
Tridon
|
|
45 |
293710116 |
FITTING-T
T-Fitting
|
|
46 |
293710132 |
FITTING-T
T-Fitting
|
|
47 |
293730040 |
DART-MOUNT
Mount
|
|
48 |
293750001 |
TIE-RAP 94MM
Tie-Rap
|
|
49 |
293750008 |
TIE-RAP 350MM
Tie-Rap
|
|
50 |
293750008 |
TIE-RAP 350MM
Tie-Rap
|
|
51 |
293750008 |
TIE-RAP 350MM
Tie-Rap
|
|
52 |
414115200 |
TIE-RAP 180MM
Tie-Rap
|
|
53 |
293750008 |
TIE-RAP 350MM
Tie-Rap
|
|
54 |
415080200 |
POLYURETHANE HOSE
Hose,
|
|
35a |
293650172 |
HOSE CLAMP
Tridon
|
|
|
