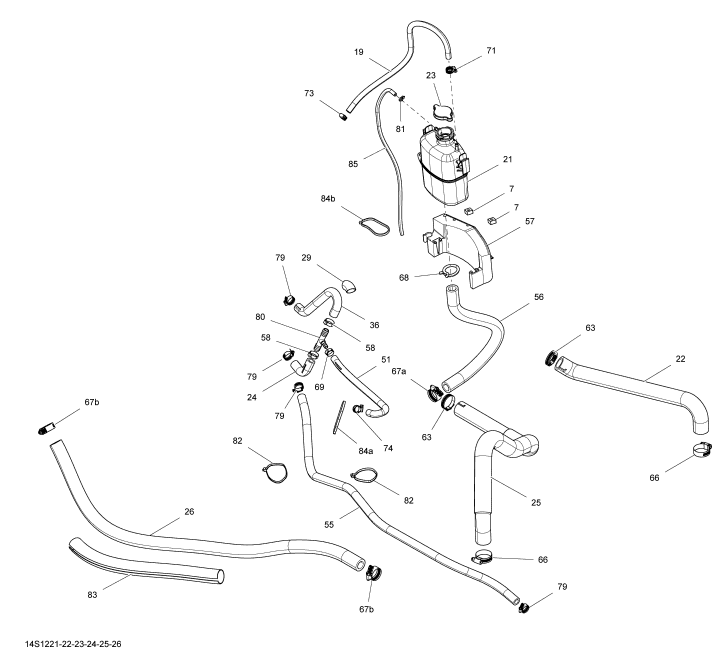

見出番号 |
部品番号 |
部品名 |
数量 |
7 |
269501166 |
HOUSING-NUT
Nut
|
|
19 |
204300184 |
HOSE-1/4
Hose
|
|
21 |
276000086 |
TANK-COOLANT
Coolant
|
|
22 |
276000248 |
HOSE-RIGHT
RH
|
|
23 |
276000100 |
PRESSURE CAP ASSY
Pressure
|
|
24 |
276000245 |
HOSE-FORMED
Lower
|
|
25 |
276000249 |
HOSE-LEFT
LH
|
|
26 |
276000158 |
HOSE-19MM (PC=1M)
Hose
|
|
29 |
276000162 |
SHRINK TUBING
Protector
|
|
36 |
276000244 |
HOSE-FORMED
Formed
|
|
51 |
276000246 |
HOSE-FORMED
Formed
|
|
55 |
276000151 |
HOSE-12 5MM (PC=1M)
Hose
|
|
56 |
276000099 |
HOSE-19MM
Hose
|
|
57 |
291003082 |
SUPPORT ASSY
Support
|
|
58 |
293650012 |
CLAMP-OETIKER
Oetiker
|
|
63 |
293650185 |
CLAMP-TRIDON
Tridon
|
|
66 |
293650185 |
CLAMP-TRIDON
Tridon
|
|
68 |
293650115 |
CLAMP-SPRING
Spring
|
|
69 |
293650030 |
CLAMP-OETIKER 185
Oetiker
|
|
71 |
293650170 |
HOSE CLAMP
Tridon
|
|
73 |
293650170 |
HOSE CLAMP
Tridon
|
|
74 |
293650171 |
HOSE CLAMP
Tridon
|
|
79 |
293650172 |
HOSE CLAMP
Tridon
|
|
80 |
293710116 |
FITTING-T
T-Fitting
|
|
81 |
293750001 |
TIE-RAP 94MM
Tie-Rap
|
|
82 |
293750008 |
TIE-RAP 350MM
Tie-Rap
|
|
83 |
409902200 |
TUBING-25MM
Tubing
|
|
85 |
415080200 |
POLYURETHANE HOSE
Hose,
|
|
67a |
293650019 |
CLAMP-TRIDON
Tridon
|
|
67b |
293650051 |
CLAMP-TRIDON
Tridon
|
|
84a |
293750008 |
TIE-RAP 350MM
Tie-Rap
|
|
84b |
414115200 |
TIE-RAP 180MM
Tie-Rap
|
|
|
