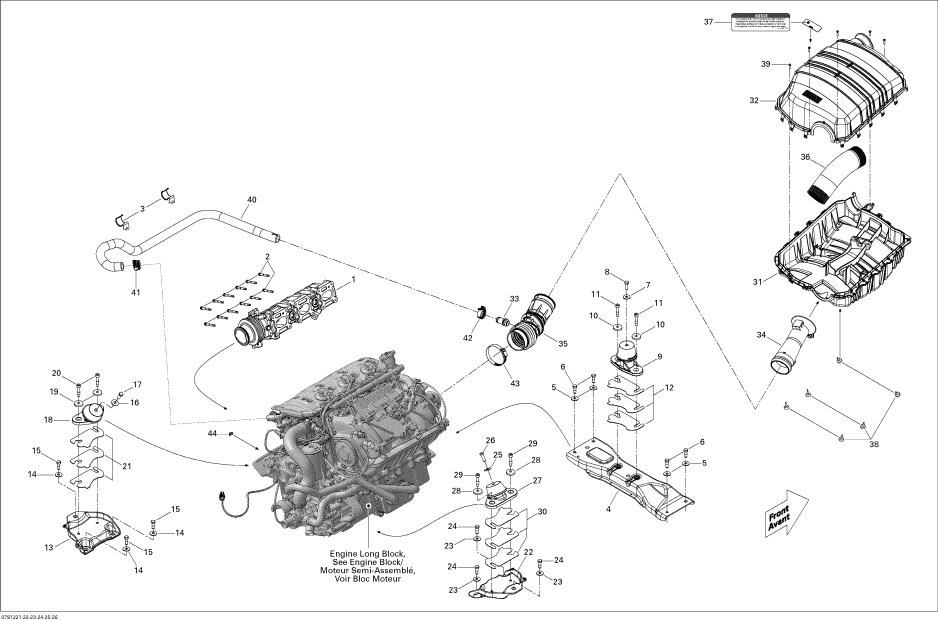

見出番号 |
部品番号 |
部品名 |
数量 |
1 |
274001434 |
MANIFOLD
Exhaust
|
|
2 |
420641198 |
TORX FLANGE SCREW
Flanged
|
|
3 |
275500664 |
RETAINER
Retainer
|
|
4 |
270000818 |
SPACER FRONT
Front
|
|
5 |
234082600 |
WASHER-FLAT DIN.9021B-A2
Flat
|
|
6 |
250000525 |
SCREW-HEX CAP DIN
Hex.
|
|
7 |
234082600 |
WASHER-FLAT DIN.9021B-A2
Flat
|
|
8 |
207382560 |
SCREW-HEX.CAP DIN.933A2 S.GRIP
Hex.
|
|
9 |
270000885 |
RUBBER MOUNT
Rubber
|
|
10 |
250200018 |
WASHER-CONE
Cone
|
|
11 |
250000334 |
SCREW-SOCKET DIN
Socket
|
|
12 |
270000762 |
SHIM 1-3MM
Shim
|
|
13 |
270000815 |
SPACER REAR
Rear
|
|
14 |
234082600 |
WASHER-FLAT DIN.9021B-A2
Flat
|
|
15 |
250000525 |
SCREW-HEX CAP DIN
Hex.
|
|
16 |
234082600 |
WASHER-FLAT DIN.9021B-A2
Flat
|
|
17 |
207382560 |
SCREW-HEX.CAP DIN.933A2 S.GRIP
Hex.
|
|
18 |
270000882 |
RUBBER MOUNT
Rubber
|
|
19 |
250200018 |
WASHER-CONE
Cone
|
|
20 |
250000334 |
SCREW-SOCKET DIN
Socket
|
|
21 |
270000762 |
SHIM 1-3MM
Shim
|
|
22 |
270000815 |
SPACER REAR
Rear
|
|
23 |
234082600 |
WASHER-FLAT DIN.9021B-A2
Flat
|
|
24 |
250000525 |
SCREW-HEX CAP DIN
Hex.
|
|
25 |
234082600 |
WASHER-FLAT DIN.9021B-A2
Flat
|
|
26 |
207382560 |
SCREW-HEX.CAP DIN.933A2 S.GRIP
Hex.
|
|
27 |
270000882 |
RUBBER MOUNT
Rubber
|
|
28 |
250200018 |
WASHER-CONE
Cone
|
|
29 |
250000334 |
SCREW-SOCKET DIN
Socket
|
|
30 |
270000762 |
SHIM 1-3MM
Shim
|
|
31 |
273000298 |
AIRBOX BASE
Air
|
|
32 |
273000297 |
AIRBOX COVER
Air
|
|
33 |
273000234 |
BREATHER
Breather
|
|
34 |
273000291 |
INTAKE TUBE
Intake
|
|
35 |
273000292 |
CONNECT HOSE
Hose
|
|
36 |
273000290 |
TUBE
Air
|
|
37 |
219903177 |
NOTICE LABEL
Notice
|
|
38 |
708000759 |
STOPPER-RUBBER
Rubber
|
|
39 |
250000287 |
SCREW-PT.FLANGE PAN HDTORX.K40 X 16
Flanged
|
|
40 |
270000809 |
HOSE-FORMED
Formed
|
|
41 |
293650051 |
CLAMP-TRIDON
Tridon
|
|
42 |
293650051 |
CLAMP-TRIDON
Tridon
|
|
43 |
293650179 |
CLAMP-TRIDON
Tridon
|
|
44 |
293750002 |
TIE-RAP 130MM
Tie-Rap
|
|
