見出番号 |
部品番号 |
部品名 |
数量 |

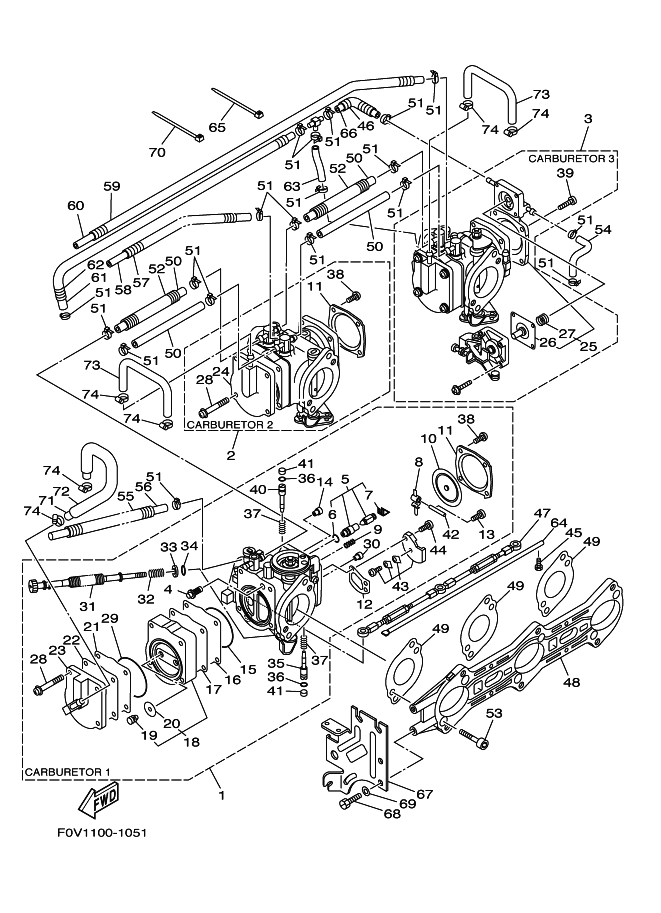

1 |
67X-14301-03 |
ｷﾔﾌﾞﾚﾀｱｾﾝﾌﾞﾘ 1
|
|
2 |
67X-14302-03 |
ｷﾔﾌﾞﾚﾀｱｾﾝﾌﾞﾘ 2
|
|
3 |
67X-14303-03 |
ｷﾔﾌﾞﾚﾀｱｾﾝﾌﾞﾘ 3
|
|
4 |
6R7-14569-00 |
ｽﾄﾚ-ﾅ
|
|
5 |
64T-14916-00 |
NEEDLE
|
|
6 |
8F2-14147-00 |
O-RING
|
|
7 |
7EG-14159-00 |
CLIP
|
|
8 |
6K8-14547-01 |
ｱ-ﾑ,ﾌﾛ-ﾄ
|
|
9 |
6R7-14253-00 |
ｽﾌﾟﾘﾝｸﾞ
|
|
10 |
6R7-14541-00 |
ﾀﾞｲﾔﾌﾗﾑ,ﾎﾟﾝﾌﾟ
|
|
11 |
6R7-14542-00 |
ﾎﾞﾃﾞ-,ﾎﾟﾝﾌﾟ 1
CARBURETOR-1/2
|
|
12 |
6K8-14536-11 |
ｶﾞｽｹﾂﾄ
|
|
13 |
6K8-14503-02 |
ｽｸﾘｭｰ
|
|
14 |
3G2-1423A-74 |
JET, MAIN (#1175)
|
|
15 |
66E-14563-01 |
O-RING
|
|
16 |
66E-24471-00 |
DIAPHRAGM
|
|
17 |
66E-24411-00 |
DIAPHRAGM
|
|
18 |
66E-24413-01 |
BODY 2
|
|
19 |
65U-24492-00 |
ﾌﾞｯｼｭ,ﾌｭｴﾙﾎﾟﾝﾌﾟ
|
|
20 |
66E-24362-00 |
VALVE, CHECK 1
|
|
21 |
66E-24421-00 |
VALVE, CHECK
|
|
22 |
66E-24431-00 |
GASKET, FUEL PUMP 1
|
|
23 |
66V-24452-00 |
COVER
CARBURETOR-1
|
|
24 |
66V-24452-10 |
COVER
CARBURETOR-2/3
|
|
25 |
66E-14280-00 |
COVER, CARBURETOR
CARBURETOR-3
|
|
26 |
66E-14170-00 |
DIAPHRAGM ASS'Y
CARBURETOR-3
|
|
27 |
66E-14286-00 |
SPRING
CARBURETOR-3
|
|
28 |
90157-05M17 |
【販売終了】 SCREW, PAN HEAD
|
|
29 |
66E-14564-01 |
O-RING
|
|
30 |
1HX-14231-19 |
JET, MAIN (# 95)
|
|
31 |
66V-14124-00 |
SCREW, CABLE ADJUSTING
CARBURETOR-1
|
|
32 |
3KW-14932-00 |
ｽﾌﾟﾘﾝｸﾞ,ｽﾛﾂﾄﾙ 2
CARBURETOR-1
|
|
33 |
812-14235-00 |
ﾜﾂｼﾔ,ﾆ-ﾄﾞﾙ
CARBURETOR-1
|
|
34 |
812-14147-00 |
O-ﾘﾝｸﾞ
CARBURETOR-1
|
|
35 |
66V-14211-00 |
SCREW, PILOT ADJUSTING
|
|
36 |
93210-03119 |
O-ﾘﾝｸﾞ
|
|
37 |
66V-14160-00 |
COIL, SPRING
|
|
38 |
97880-05010 |
SCREW, PAN HEAD
CARBURETOR-1/2
|
|
39 |
98580-05014 |
SCREW, PAN HEAD
CARBURETOR-3
|
|
40 |
66V-14946-00 |
PLATE, NEEDLE FITTING
|
|
41 |
66V-1432A-00 |
PLUG
|
|
42 |
439-14186-00 |
ﾋﾟﾝ,ﾌﾛ-ﾄ
|
|
43 |
66E-24412-01 |
BODY 1
|
|
44 |
6K8-14523-11 |
ｽｸﾘﾕ,ｽﾄﾂﾌﾟ
|
|
45 |
68N-14486-00 |
SCREW, ROD
|
|
46 |
90447-07003 |
HOSE, WITH SPRING
|
|
47 |
66V-41217-00 |
ROD, ACCEL LEVER
|
|
48 |
66V-14146-00 |
PLATE
|
|
49 |
66E-14398-00 |
GASKET
|
|
50 |
90445-11M73 |
HOSE
|
|
51 |
35H-14139-00 |
CLIP, PIPE
|
|
52 |
90446-17MG6 |
HOSE
|
|
53 |
66E-14162-01 |
BOLT, HOLDING
|
|
54 |
90445-07004 |
HOSE
|
|
55 |
90446-10MG0 |
HOSE
|
|
56 |
90446-07MG1 |
HOSE
|
|
57 |
90446-10MG2 |
HOSE
|
|
58 |
90446-07MG3 |
HOSE
|
|
59 |
90446-10MG4 |
HOSE
|
|
60 |
90446-07MG5 |
HOSE
|
|
61 |
90445-07005 |
HOSE
|
|
62 |
90447-07004 |
HOSE, WITH SPRING
|
|
63 |
90445-07003 |
HOSE
|
|
64 |
68N-14585-00 |
ROD, CHOKE
|
|
65 |
4KM-14137-00 |
CLIP
|
|
66 |
66V-14294-00 |
HOSE
|
|
67 |
66V-14527-00 |
PLATE
|
|
68 |
97095-06012 |
ﾎﾞﾙﾄ
|
|
69 |
92995-06600 |
ﾜﾂｼﾔ
|
|
70 |
90465-13M60 |
CLAMP
|
|
71 |
66V-24312-00 |
PIPE 2
|
|
72 |
90446-14MA9 |
HOSE
|
|
73 |
66V-24313-01 |
PIPE 3
|
|
74 |
90460-11M17 |
CLAMP, HOSE
|
|
|
