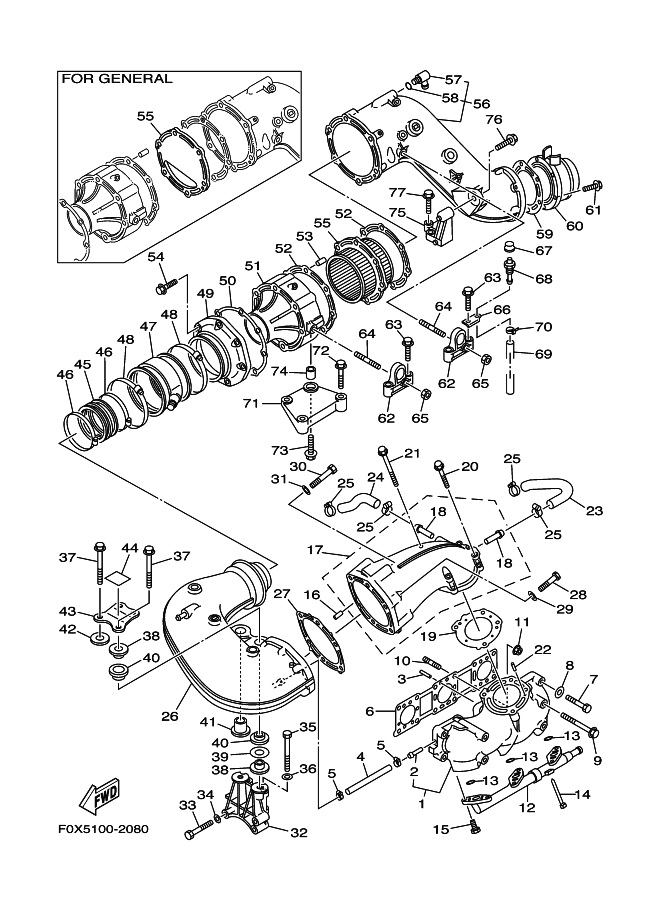

見出番号 |
部品番号 |
部品名 |
数量 |
1 |
66V-14711-00-8P |
MUFFLER 1
|
|
2 |
65U-14251-00 |
NIPPLE
|
|
3 |
93606-12019 |
ﾋﾟﾝ,ﾀﾞｳｴﾙ
|
|
4 |
90445-12M10 |
HOSE (L125)
|
|
5 |
90460-11M17 |
CLAMP, HOSE
|
|
6 |
66V-14613-00 |
GASKET, EXHAUST PIPE
|
|
7 |
97013-10055 |
BOLT
|
|
8 |
92903-10600 |
WASHER, PLATE
|
|
9 |
90119-10M11 |
BOLT, WITH WASHER
|
|
10 |
90116-10M68 |
BOLT, STUD
|
|
11 |
90179-10M36 |
NUT
|
|
12 |
66V-24377-00 |
PIPE, JOINT 3
|
|
13 |
93210-17MA4 |
O-ﾘﾝｸﾞ
|
|
14 |
90465-13M36 |
CLAMP
|
|
15 |
90109-06M99 |
BOLT
|
|
16 |
93606-12019 |
ﾋﾟﾝ,ﾀﾞｳｴﾙ
|
|
17 |
66V-14712-00-8P |
RING, JOINT
|
|
18 |
66E-51129-00 |
NIPPLE
|
|
19 |
66V-14739-00 |
GASKET, MUFFLER DAMPER 1
|
|
20 |
90119-10M20 |
BOLT, WITH WASHER
|
|
21 |
90119-10M19 |
BOLT, WITH WASHER
|
|
22 |
93606-12019 |
ﾋﾟﾝ,ﾀﾞｳｴﾙ
|
|
23 |
66V-12577-00 |
HOSE 2
|
|
24 |
66V-12576-00 |
HOSE 1
|
|
25 |
90450-22M14 |
HOSE CLAMP ASSY
|
|
26 |
66V-14721-01-8P |
MUFFLER 2
|
|
27 |
66V-14749-00 |
GASKET, MUFFLER DAMPER 2
|
|
28 |
97013-10065 |
BOLT
|
|
29 |
92903-10600 |
WASHER, PLATE
|
|
30 |
97013-10085 |
BOLT
|
|
31 |
92903-10600 |
WASHER, PLATE
|
|
32 |
66V-14771-01-94 |
STAY, MUFFLER 1
|
|
33 |
97013-10060 |
【販売終了】BOLT
|
|
34 |
92903-10600 |
WASHER, PLATE
|
|
35 |
97013-10090 |
BOLT
|
|
36 |
92903-10600 |
WASHER, PLATE
|
|
37 |
90119-10M23 |
BOLT, WITH WASHER
|
|
38 |
90387-12M05 |
COLLAR
|
|
39 |
90201-28008 |
WASHER, PLATE
|
|
40 |
90480-30M78 |
GROMMET
|
|
41 |
66V-14779-00 |
COLLAR
|
|
42 |
66V-1477L-00 |
PLATE 2
|
|
43 |
66V-11152-00 |
BRACKET, CYLINDER HEAD COVER
|
|
44 |
66V-14488-00 |
LABEL, CAUTION
|
|
45 |
66V-14625-00 |
JOINT, EXHAUST 2
|
|
46 |
90460-90M19 |
CLAMP, HOSE
|
|
47 |
66V-14615-02 |
ｼﾞﾖｲﾝﾄ,ｴｷｿﾞ-ｽﾄ 1
|
|
48 |
90460-99M20 |
CLAMP, HOSE
|
|
49 |
68N-41113-00-8P |
ｱｳﾀｶﾊﾞ-,ｴｷｿﾞ-ｽﾄ
FOR-USA/CAN/JPN
|
|
50 |
66V-41114-00 |
GASKET, EXHAUST OUTER COVER
|
|
51 |
68N-41111-00-94 |
INNER COVER, EXHAUST
FOR-USA/CAN/JPN
|
|
52 |
66V-41124-00 |
GASKET, EXHAUST OUTER COVER
|
|
53 |
93606-14081 |
PIN, DOWEL
|
|
54 |
90119-08M63 |
BOLT, WITH WASHER
|
|
55 |
66V-14740-01 |
ｷﾔﾀﾘｽﾄｱｾﾝﾌﾞﾘ
FOR-USA/CAN/JPN
|
|
56 |
68N-41123-00-8P |
ｱｳﾀｶﾊﾞｰ､ｴｷﾞｿﾞｰｽﾄ
FOR-USA/CAN/JPN
|
|
57 |
67X-12481-00 |
PIPE 1
|
|
58 |
93210-17001 |
O-ﾘﾝｸﾞ
|
|
59 |
68N-14623-00 |
GASKET, EXHAUST PIPE
|
|
60 |
68N-14784-00-94 |
PIPE, TAIL
|
|
61 |
90105-08M22 |
BOLT, WASHER BASED
|
|
62 |
66E-14771-01-94 |
STAY, MUFFLER 1
|
|
63 |
90119-10M18 |
BOLT, WITH WASHER
|
|
64 |
90116-10M66 |
BOLT, STUD
|
|
65 |
90179-10M35 |
NUT
|
|
66 |
66V-1477K-00 |
PLATE 1
|
|
67 |
663-45119-00 |
ｷﾔﾂﾌﾟ,ｸﾞﾘ-ｽﾆﾂﾌﾟﾙ
|
|
68 |
61L-5169A-00 |
ﾆﾂﾌﾟﾙ,ｸﾞﾘｽ
|
|
69 |
90445-09M33 |
HOSE (L580)
|
|
70 |
90465-11M10 |
ｸﾗﾝﾌﾟ
|
|
71 |
66V-14782-00-94 |
STAY 5
|
|
72 |
90105-10M87 |
BOLT, WASHER BASED
|
|
73 |
97513-10545 |
BOLT, WITH WASHER
|
|
74 |
99590-14016 |
ﾋﾟﾝ,ﾀﾞｳｴﾙ
|
|
75 |
68N-14791-00-8P |
ｽﾃ-,ﾏﾌﾗ-
|
|
76 |
90119-10M00 |
ﾎﾞﾙﾄ,ｳｲｽﾞﾜﾂｼﾔ
|
|
77 |
90119-10M13 |
BOLT, WITH WASHER
|
|
|
