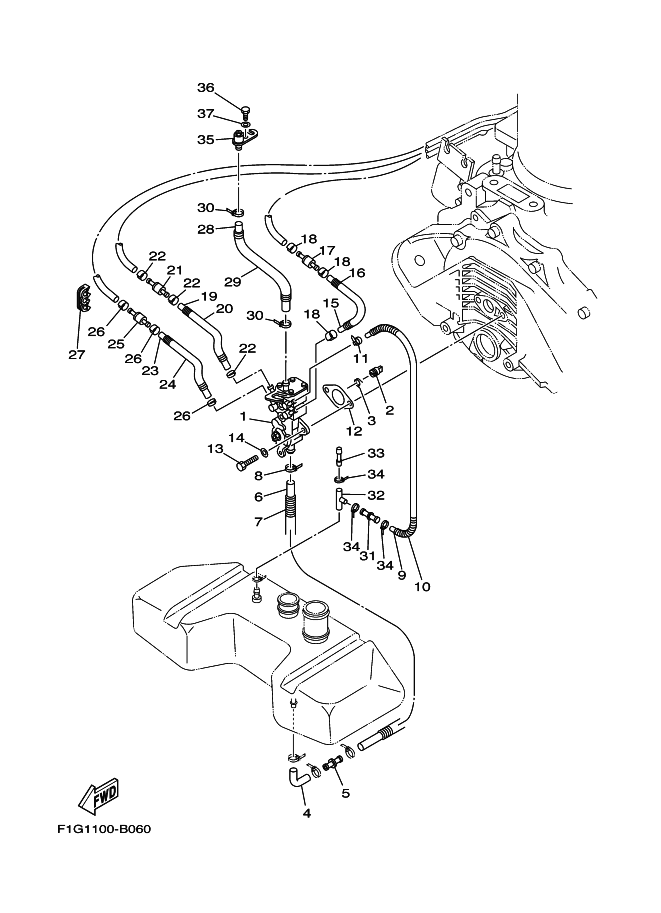

見出番号 |
部品番号 |
部品名 |
数量 |
1 |
60T-13200-00 |
ｵｲﾙｲﾝｼﾞｴｸｼﾖﾝﾎﾟﾝﾌﾟｱｾﾝﾌﾞﾘ
|
|
2 |
65U-13132-00 |
JOINT
|
|
3 |
66E-13469-00 |
SPRING
|
|
4 |
90445-14M00 |
HOSE (L118)
|
|
5 |
66V-51142-00 |
CONNECTION
|
|
6 |
90445-11M33 |
HOSE
|
|
7 |
90446-17ME2 |
HOSE
|
|
8 |
90465-11M10 |
ｸﾗﾝﾌﾟ
|
|
9 |
90445-07M10 |
HOSE (L510)
|
|
10 |
90447-07001 |
ホース,ウイズスプリング (L400)
|
|
11 |
90468-02001 |
CLIP
|
|
12 |
63M-13116-00 |
GASKET, PUMP CASE
|
|
13 |
97095-06020 |
ﾎﾞﾙﾄ
|
|
14 |
92995-06600 |
ﾜﾂｼﾔ
|
|
15 |
90445-07007 |
HOSE
|
|
16 |
90446-10M82 |
HOSE
|
|
17 |
67X-13183-00 |
VALVE, CHECK
|
|
18 |
90468-02001 |
CLIP
|
|
19 |
90445-07007 |
HOSE
|
|
20 |
90446-10M82 |
HOSE
|
|
21 |
67X-13183-00 |
VALVE, CHECK
|
|
22 |
90468-02001 |
CLIP
|
|
23 |
90445-07007 |
HOSE
|
|
24 |
90446-10M82 |
HOSE
|
|
25 |
67X-13183-00 |
VALVE, CHECK
|
|
26 |
90468-02001 |
CLIP
|
|
27 |
90464-07M05 |
CLAMP
|
|
28 |
66V-24314-00 |
PIPE 4
|
|
29 |
90446-17ME8 |
HOSE
|
|
30 |
90465-11M10 |
ｸﾗﾝﾌﾟ
|
|
31 |
63M-13132-00 |
JOINT
|
|
32 |
63M-24378-00 |
PIPE, JOINT 4
|
|
33 |
6G8-24376-00 |
PIPE, JOINT 1
|
|
34 |
90465-11829YMUS |
|
|
35 |
66V-13185-00 |
BOLT, BREATHER
|
|
36 |
97095-06012 |
ﾎﾞﾙﾄ
|
|
37 |
92995-06600 |
ﾜﾂｼﾔ
|
|
|
