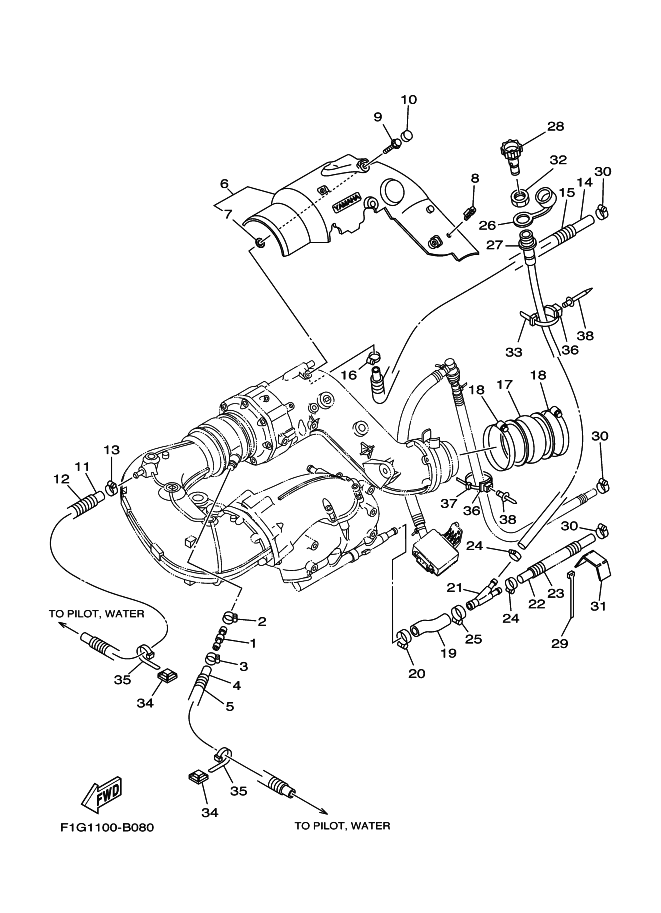

見出番号 |
部品番号 |
部品名 |
数量 |
1 |
60E-12594-00 |
JOINT, HOSE 4
|
|
2 |
90450-18M09 |
ﾎ-ｽｸﾗﾝﾌﾟｱｾﾝﾌﾞﾘ
|
|
3 |
90450-14M05 |
ﾎ-ｽｸﾗﾝﾌﾟｱｾﾝﾌﾞﾘ
|
|
4 |
90445-14M09 |
HOSE (L1020)
|
|
5 |
90446-20M70 |
ﾎｰｽ(L800)
|
|
6 |
60T-14718-00 |
ﾌﾟﾛﾃｸﾀ,ﾏﾌﾗ 1
|
|
7 |
90430-09004 |
ｶﾞｽｹﾂﾄ
|
|
8 |
90464-07M56 |
CLAMP
|
|
9 |
90109-06M99 |
BOLT
|
|
10 |
60T-15779-00 |
ｶﾊﾞ-
|
|
11 |
90445-14M18 |
ﾎ-ｽ(L560)
|
|
12 |
90446-20M65 |
ﾎｰｽ(L445)
|
|
13 |
90450-18M09 |
ﾎ-ｽｸﾗﾝﾌﾟｱｾﾝﾌﾞﾘ
|
|
14 |
90445-21002 |
HOSE (L900)
|
|
15 |
90446-27M95 |
HOSE
|
|
16 |
90450-22M14 |
HOSE CLAMP ASSY
|
|
17 |
66V-14752-00 |
PIPE, OUTLET
|
|
18 |
90450-99M02 |
HOSE CLAMP ASSY
|
|
19 |
66V-12579-00 |
HOSE 4
|
|
20 |
90450-22M14 |
HOSE CLAMP ASSY
|
|
21 |
66V-12581-00 |
JOINT, HOSE 1
|
|
22 |
90445-18006 |
ﾎ-ｽ (L660)
|
|
23 |
90446-24M52 |
HOSE (L540)
|
|
24 |
90450-18M09 |
ﾎ-ｽｸﾗﾝﾌﾟｱｾﾝﾌﾞﾘ
|
|
25 |
90450-22M14 |
HOSE CLAMP ASSY
|
|
26 |
682-84385-01 |
ｷﾔﾂﾌﾟ 1
|
|
27 |
64T-12580-00 |
ｼﾞﾖｲﾝﾄｱｾﾝﾌﾞﾘ
|
|
28 |
67X-12590-10 |
CONDUCTION ASSY
FOR-JPN
|
|
29 |
90601-200U2 |
ﾊﾞﾝﾄﾞ
YMUS
|
|
30 |
90601-118UF |
ﾊﾞﾝﾄﾞ,ﾎｰｽ18
YMUS
|
|
31 |
GJ1-U7578-21 |
ﾊﾟﾂｷﾝ,ﾎｰｽ2
YMUS
|
|
32 |
EU0-61652-00 |
ﾛ-ﾌﾟﾎ-ﾙﾅﾂﾄ
|
|
33 |
90601-200U2 |
ﾊﾞﾝﾄﾞ
YMUS
|
|
34 |
90600-900U6 |
BASE, CLAMP
YMUS
|
|
35 |
90464-40825 |
ｸﾗﾝﾌﾟ
YMUS
|
|
36 |
90600-917U4 |
CLAMP COMP
YMUS
|
|
37 |
90601-200U2 |
ﾊﾞﾝﾄﾞ
YMUS
|
|
38 |
90267-48802 |
ﾘﾍﾞﾂﾄ,ﾌﾞﾗｲﾝﾄﾞ
YMUS
|
|
|
