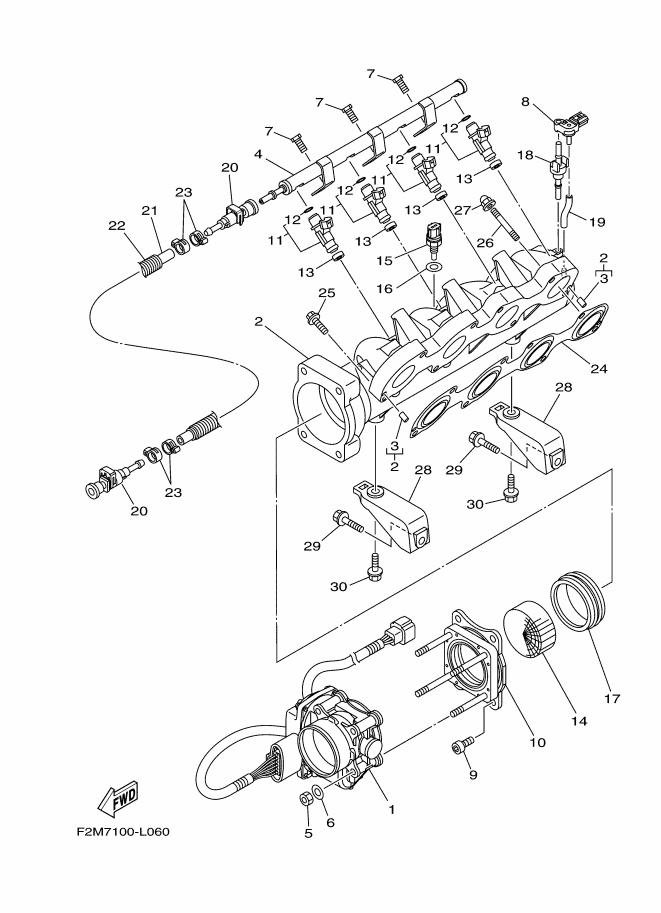

見出番号 |
部品番号 |
部品名 |
数量 |
1 |
6BH-13750-00 |
THROTTLE BODY ASSY
|
|
2 |
6BH-13641-01 |
ﾏﾆﾎ-ﾙﾄﾞ 1
|
|
3 |
93604-10011 |
ﾋﾟﾝ,ﾀﾞｳｴﾙ(603)
|
|
4 |
6S5-12880-10 |
ﾃﾞﾘﾊﾞﾘｲﾊﾟｲﾌﾟ
|
|
5 |
6P2-13588-00 |
NUT
|
|
6 |
6P2-13578-00 |
WASHER
|
|
7 |
63P-14446-00 |
ﾎﾞﾙﾄ
|
|
8 |
6BH-82380-00 |
ｾﾝｻ-,ﾌﾟﾚﾂｼﾔ-
|
|
9 |
6S5-14496-00 |
BOLT
|
|
10 |
6BH-14360-00 |
ｽﾛﾂﾄﾙﾀﾞﾝﾊﾟｱｾﾝﾌﾞﾘ
|
|
11 |
6S5-13761-10 |
ｲﾝｼﾞｴｸﾀｱｾﾝﾌﾞﾘ
|
|
12 |
68V-1416A-00 |
O-ﾘﾝｸﾞ
|
|
13 |
8FP-13556-10 |
ｶﾞｽｹﾂﾄ,ﾏﾆﾎ-ﾙﾄﾞ
|
|
14 |
6BH-1444B-00 |
ﾘﾎﾞﾝ
|
|
15 |
65L-85886-00 |
ｻ-ﾓｾﾝｻ-
|
|
16 |
6S5-14285-00 |
ﾜﾂｼﾔ
|
|
17 |
6BH-14457-00 |
ｼ-ﾙ
|
|
18 |
6BH-14445-00 |
ｸﾞﾛﾒﾂﾄ
|
|
19 |
6BH-13532-00 |
ﾎｰｽ,ﾊﾞｷﾕｰﾑｾﾝｼﾝｸﾞ3
|
|
20 |
6S5-24300-01 |
FUEL PIPE JOINT
|
|
21 |
6CN-14294-10 |
HOSE
|
|
22 |
90447-19020 |
TUBE (L610)
|
|
23 |
90450-17M17 |
HOSE CLAMP ASSY
|
|
24 |
6BH-13645-00 |
ｶﾞｽｹﾂﾄ,ﾏﾆﾎ-ﾙﾄﾞ 1
|
|
25 |
90119-08022 |
ﾎﾞﾙﾄ,ｳｲｽﾞﾜﾂｼﾔ
|
|
26 |
90116-08032 |
ﾎﾞﾙﾄ,ｽﾀﾂﾄﾞ
|
|
27 |
90176-08080 |
ﾅﾂﾄ,ｸﾗｳﾝ
|
|
28 |
6S5-14413-00-94 |
ｽﾃ-
|
|
29 |
90119-08043 |
BOLT, WITH WASHER
|
|
30 |
90119-08099 |
BOLT, WITH WASHER
|
|
|
