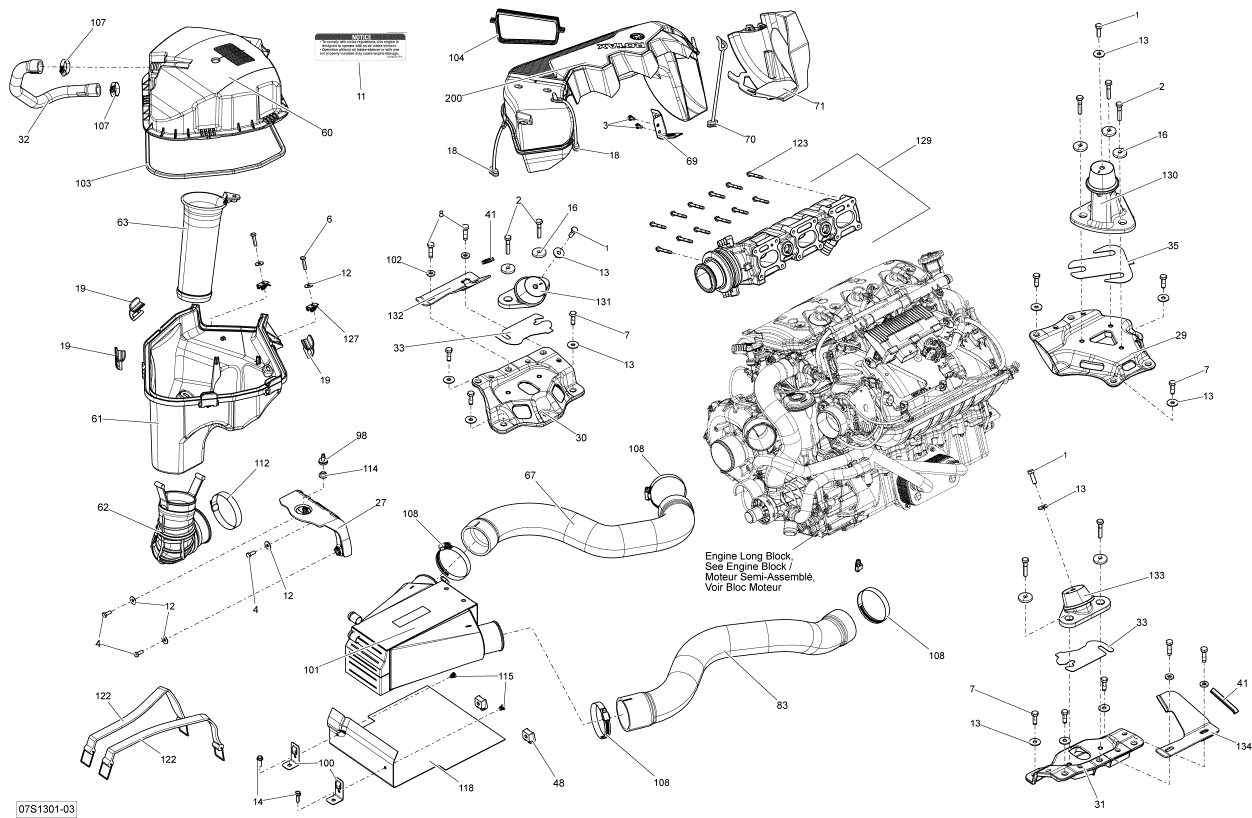

見出番号 |
部品番号 |
部品名 |
数量 |
1 |
207382560 |
SCREW-HEX.CAP DIN.933A2 S.GRIP
Hex.
|
|
2 |
207284060 |
SCREW-HEX.CAP-DIN.931A2 S.GRIP
Hex.
|
|
3 |
207361260 |
SCREW-HEX.CAP DIN.933A2 S.GRIP
Hex.
|
|
4 |
207361660 |
SCREW-HEX.CAP DIN.933A2 S.GRIP
Hex.
|
|
6 |
207362560 |
SCREW-HEX.CAP DIN.933A2 S.GRIP
Hex.
|
|
7 |
250000525 |
SCREW-HEX CAP DIN
Hex.
|
|
8 |
250000526 |
SCREW-HEX CAP DIN
Hex.
|
|
11 |
219903177 |
NOTICE LABEL
Notice
|
|
12 |
234062600 |
WASHER-FLAT DIN.9021B-A2
Flat
|
|
13 |
234082600 |
WASHER-FLAT DIN.9021B-A2
Flat
|
|
14 |
243162060 |
SCREW-PLASTITE HEXUNSL
Hex.
|
|
16 |
250200018 |
WASHER-CONE
Cone
|
|
18 |
269501299 |
STRAP
Strap
|
|
19 |
269501718 |
CLIP
Clip
|
|
27 |
270000735 |
AIRBOX SUPPORT
Air
|
|
29 |
270000767 |
SPACER
Spacer
|
|
30 |
270000763 |
SPACER
Spacer
|
|
31 |
270000766 |
SPACER
Spacer
|
|
32 |
270000807 |
HOSE-FORMED
Formed
|
|
33 |
270000762 |
SHIM 1-3MM
Shim
|
|
35 |
270000770 |
SHIM 1-3MM
Shim
|
|
41 |
204610371 |
TRIM-BLACK(1M/PAC)
Trim,
|
|
48 |
270000854 |
STRAP ANCHOR
Strap
|
|
60 |
273000249 |
SILENC-AIR UPP
Air
|
|
61 |
273000250 |
SILENC-AIR LOW
Air
|
|
62 |
273000251 |
CONNECT HOSE
Connector
|
|
63 |
273000252 |
INTAKE HOSE
Intake
|
|
67 |
273000282 |
INLET HOSE
Inlet
|
|
69 |
273000260 |
AIRBOX BRACKET
Air
|
|
70 |
273000261 |
STRAP
Strap
|
|
71 |
273000271 |
DEFLECTOR
Deflector
|
|
83 |
273000300 |
OUTLET HOSE
Outlet
|
|
98 |
275500454 |
VALVE-CHECK
Check
|
|
100 |
275500743 |
CLIP-STRAP 90
Strap
|
|
101 |
276000332 |
INTERCOOLER
Intercooler
|
|
102 |
293050001 |
WASHER-8MM
Flat
|
|
103 |
293200123 |
NEOPRENE SEAL
Neoprene
|
|
104 |
293250190 |
OIL SEAL
Seal
|
|
107 |
293650051 |
CLAMP-TRIDON
Tridon
|
|
108 |
293650179 |
CLAMP-TRIDON
Tridon
|
|
112 |
293650179 |
CLAMP-TRIDON
Tridon
|
|
114 |
293720064 |
GROMMET
Grommet
|
|
115 |
293730016 |
DART-BLACK
Dart,
|
|
118 |
293830146 |
PAD-RUBBER
Rubber
|
|
122 |
293850093 |
STRAP-FUEL TANK
Strap
|
|
123 |
420641198 |
TORX FLANGE SCREW
Flanged
|
|
127 |
420942108 |
PANEL NUT
Panel
|
|
129 |
274001434 |
MANIFOLD
Exhaust
|
|
130 |
270000886 |
RUBBER MOUNT
Rubber
|
|
131 |
270000882 |
RUBBER MOUNT
Rubber
|
|
132 |
270000796 |
ENGINE STOP
LH
|
|
133 |
270000882 |
RUBBER MOUNT
Rubber
|
|
134 |
270000799 |
ENGINE STOP
RH
|
|
200 |
273000253 |
INTAKE TUBE
Intake
|
|
