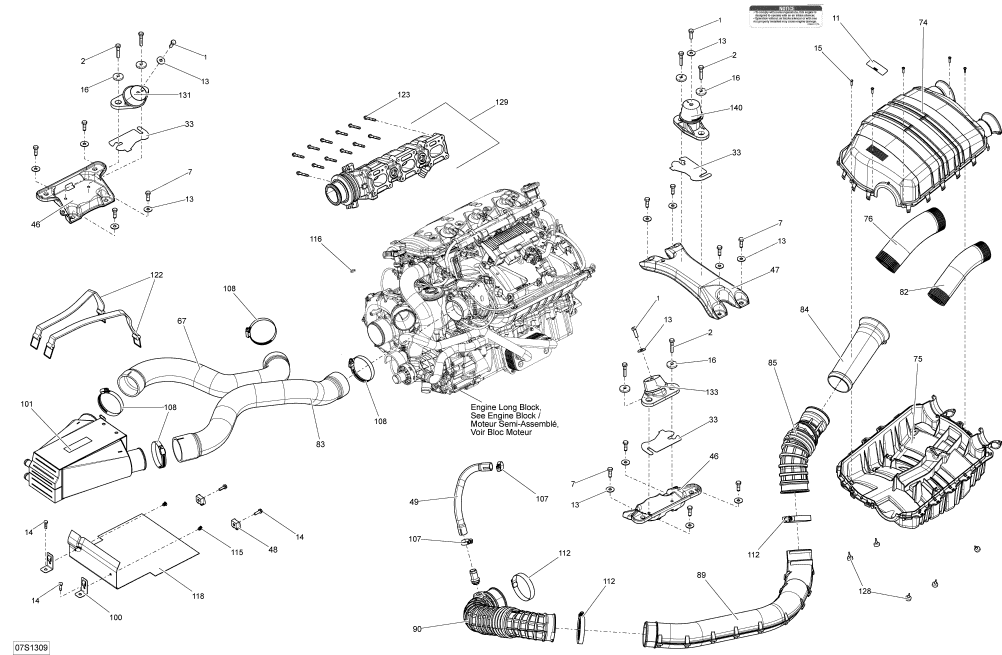

見出番号 |
部品番号 |
部品名 |
数量 |
1 |
207382560 |
SCREW-HEX.CAP DIN.933A2 S.GRIP
Hex.
|
|
2 |
207284060 |
SCREW-HEX.CAP-DIN.931A2 S.GRIP
Hex.
|
|
7 |
207382560 |
SCREW-HEX.CAP DIN.933A2 S.GRIP
Hex.
|
|
11 |
219903177 |
NOTICE LABEL
Notice
|
|
13 |
234082600 |
WASHER-FLAT DIN.9021B-A2
Flat
|
|
14 |
243162060 |
SCREW-PLASTITE HEXUNSL
Hex.
|
|
15 |
250000287 |
SCREW-PT.FLANGE PAN HDTORX.K40 X 16
Flanged
|
|
16 |
250200018 |
WASHER-CONE
Cone
|
|
33 |
270000762 |
SHIM 1-3MM
Shim
|
|
46 |
270000843 |
SPACER REAR
Rear
|
|
47 |
270000842 |
SPACER FRONT
Front
|
|
48 |
270000854 |
STRAP ANCHOR
Strap
|
|
49 |
270000864 |
FORMED HOSE
Formed
|
|
67 |
273000282 |
INLET HOSE
Inlet
|
|
74 |
273000288 |
AIRBOX COVER
Air
|
|
75 |
273000289 |
AIRBOX BASE
Air
|
|
76 |
273000290 |
TUBE
Air
|
|
82 |
273000299 |
TUBE
Air
|
|
83 |
273000300 |
OUTLET HOSE
Outlet
|
|
84 |
273000301 |
INTAKE TUBE
Intake
|
|
85 |
273000306 |
CONNECT HOSE
Hose
|
|
89 |
273000311 |
INTAKE TUBE
Intake
|
|
90 |
273000317 |
HOSE-INTAKE
Rear
|
|
100 |
275500743 |
CLIP-STRAP 90
Strap
|
|
101 |
276000332 |
INTERCOOLER
Intercooler
|
|
107 |
293650051 |
CLAMP-TRIDON
Tridon
|
|
108 |
293650179 |
CLAMP-TRIDON
Tridon
|
|
112 |
293650179 |
CLAMP-TRIDON
Tridon
|
|
115 |
293730016 |
DART-BLACK
Dart,
|
|
116 |
293750002 |
TIE-RAP 130MM
Tie-Rap
|
|
118 |
293830146 |
PAD-RUBBER
Rubber
|
|
122 |
293850093 |
STRAP-FUEL TANK
Strap
|
|
123 |
420641198 |
TORX FLANGE SCREW
Flanged
|
|
128 |
708000759 |
STOPPER-RUBBER
Rubber
|
|
129 |
274001434 |
MANIFOLD
Exhaust
|
|
131 |
270000882 |
RUBBER MOUNT
Rubber
|
|
133 |
270000882 |
RUBBER MOUNT
Rubber
|
|
140 |
270000885 |
RUBBER MOUNT
Rubber
|
|
