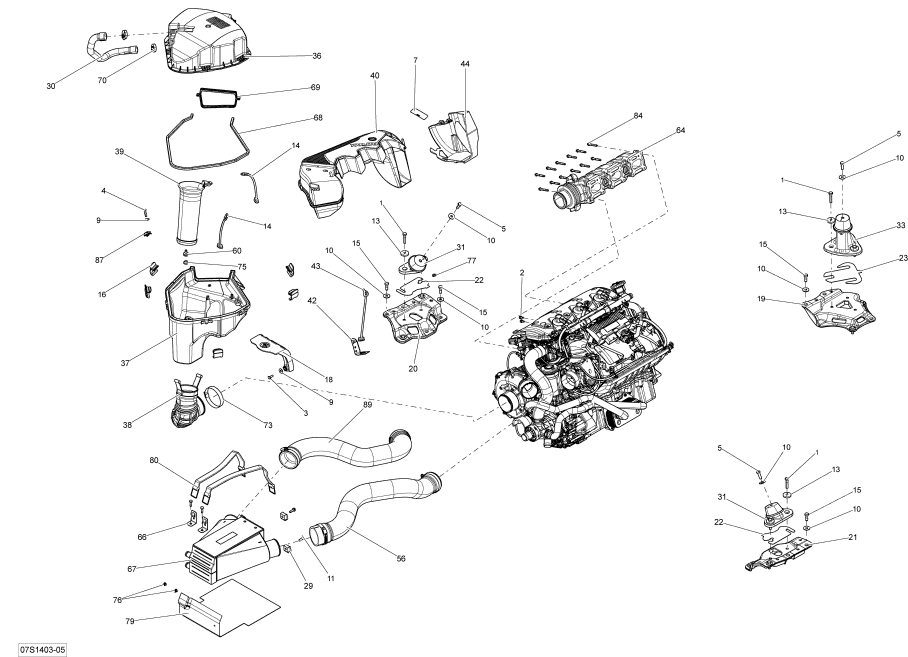

見出番号 |
部品番号 |
部品名 |
数量 |
1 |
207284060 |
SCREW-HEX.CAP-DIN.931A2 S.GRIP
Hex.
|
|
2 |
207361260 |
SCREW-HEX.CAP DIN.933A2 S.GRIP
Hex.
|
|
3 |
207361660 |
SCREW-HEX.CAP DIN.933A2 S.GRIP
Hex.
|
|
4 |
207362560 |
SCREW-HEX.CAP DIN.933A2 S.GRIP
Hex.
|
|
5 |
207382560 |
SCREW-HEX.CAP DIN.933A2 S.GRIP
Hex.
|
|
7 |
219903177 |
NOTICE LABEL
Notice
|
|
9 |
234062600 |
WASHER-FLAT DIN.9021B-A2
Flat
|
|
10 |
234082600 |
WASHER-FLAT DIN.9021B-A2
Flat
|
|
11 |
243162060 |
SCREW-PLASTITE HEXUNSL
Hex.
|
|
13 |
250200018 |
WASHER-CONE
Cone
|
|
14 |
269501299 |
STRAP
Strap
|
|
15 |
250000525 |
SCREW-HEX CAP DIN
Hex.
|
|
16 |
269501718 |
CLIP
Clip
|
|
18 |
270000735 |
AIRBOX SUPPORT
Air
|
|
19 |
270000767 |
SPACER
Spacer
|
|
20 |
270000763 |
SPACER
Spacer
|
|
21 |
270000766 |
SPACER
Spacer
|
|
22 |
270000762 |
SHIM 1-3MM
Shim
|
|
23 |
270000770 |
SHIM 1-3MM
Shim
|
|
29 |
270000854 |
STRAP ANCHOR
Strap
|
|
30 |
270000807 |
HOSE-FORMED
Formed
|
|
31 |
270000882 |
RUBBER MOUNT
Rubber
|
|
33 |
270000886 |
RUBBER MOUNT
Rubber
|
|
36 |
273000249 |
SILENC-AIR UPP
Air
|
|
37 |
273000250 |
SILENC-AIR LOW
Air
|
|
38 |
273000251 |
CONNECT HOSE
Connector
|
|
39 |
273000252 |
INTAKE HOSE
Intake
|
|
40 |
273000253 |
INTAKE TUBE
Intake
|
|
42 |
273000260 |
AIRBOX BRACKET
Air
|
|
43 |
273000261 |
STRAP
Strap
|
|
44 |
273000271 |
DEFLECTOR
Deflector
|
|
56 |
273000300 |
OUTLET HOSE
Outlet
|
|
60 |
275500454 |
VALVE-CHECK
Check
|
|
64 |
274001504 |
MANIFOLD
Exhaust
|
|
66 |
275500743 |
CLIP-STRAP 90
Strap
|
|
67 |
276000332 |
INTERCOOLER
Intercooler
|
|
68 |
293200123 |
NEOPRENE SEAL
Neoprene
|
|
69 |
293250190 |
OIL SEAL
Seal
|
|
70 |
293650051 |
CLAMP-TRIDON
Tridon
|
|
73 |
293650179 |
CLAMP-TRIDON
Tridon
|
|
75 |
293720064 |
GROMMET
Grommet
|
|
76 |
293730016 |
DART-BLACK
Dart,
|
|
77 |
293750002 |
TIE-RAP 130MM
Tie-Rap
|
|
79 |
293830146 |
PAD-RUBBER
Rubber
|
|
80 |
293850093 |
STRAP-FUEL TANK
Strap
|
|
84 |
420641198 |
TORX FLANGE SCREW
Flanged
|
|
87 |
420942108 |
PANEL NUT
Panel
|
|
89 |
273000282 |
INLET HOSE
Inlet
|
|
