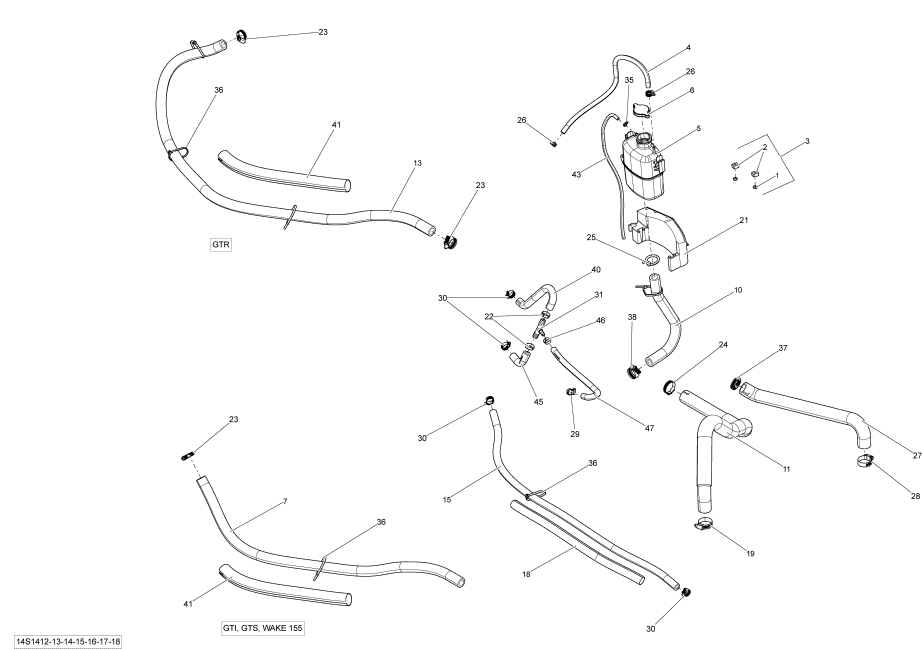

見出番号 |
部品番号 |
部品名 |
数量 |
1 |
232561200 |
NUT-STOP ELASTIC DIN985
Elastic
|
|
2 |
269500252 |
HOUSING-NUT AS
M6
|
|
3 |
269501166 |
HOUSING-NUT
Nut
|
|
4 |
204300184 |
HOSE-1/4
Hose
|
|
5 |
276000086 |
TANK-COOLANT
Coolant
|
|
6 |
276000100 |
PRESSURE CAP ASSY
Pressure
|
|
7 |
276000158 |
HOSE-19MM (PC=1M)
Hose
|
|
10 |
276000099 |
HOSE-19MM
Hose
|
|
11 |
276000249 |
HOSE-LEFT
LH
|
|
13 |
N/A |
Not
|
|
15 |
276000151 |
HOSE-12 5MM (PC=1M)
Hose
|
|
18 |
409902200 |
TUBING-25MM
Tubing
|
|
19 |
293650185 |
CLAMP-TRIDON
Tridon
|
|
21 |
291003082 |
SUPPORT ASSY
Support
|
|
22 |
293650012 |
CLAMP-OETIKER
Oetiker
|
|
23 |
293650051 |
CLAMP-TRIDON
Tridon
|
|
24 |
293650185 |
CLAMP-TRIDON
Tridon
|
|
25 |
293650115 |
CLAMP-SPRING
Spring
|
|
26 |
293650170 |
HOSE CLAMP
Tridon
|
|
27 |
276000248 |
HOSE-RIGHT
RH
|
|
28 |
293650185 |
CLAMP-TRIDON
Tridon
|
|
29 |
293650171 |
HOSE CLAMP
Tridon
|
|
30 |
293650172 |
HOSE CLAMP
Tridon
|
|
31 |
293710116 |
FITTING-T
T-Fitting
|
|
35 |
293750001 |
TIE-RAP 94MM
Tie-Rap
|
|
36 |
293750008 |
TIE-RAP 350MM
Tie-Rap
|
|
37 |
293650185 |
CLAMP-TRIDON
Tridon
|
|
38 |
293650019 |
CLAMP-TRIDON
Tridon
|
|
41 |
409902200 |
TUBING-25MM
Tubing
|
|
43 |
415080200 |
POLYURETHANE HOSE
Hose,
|
|
44 |
276000244 |
HOSE-FORMED
Formed
|
|
45 |
276000245 |
HOSE-FORMED
Lower
|
|
46 |
293650030 |
CLAMP-OETIKER 185
Oetiker
|
|
47 |
276000246 |
HOSE-FORMED
Formed
|
|
|
