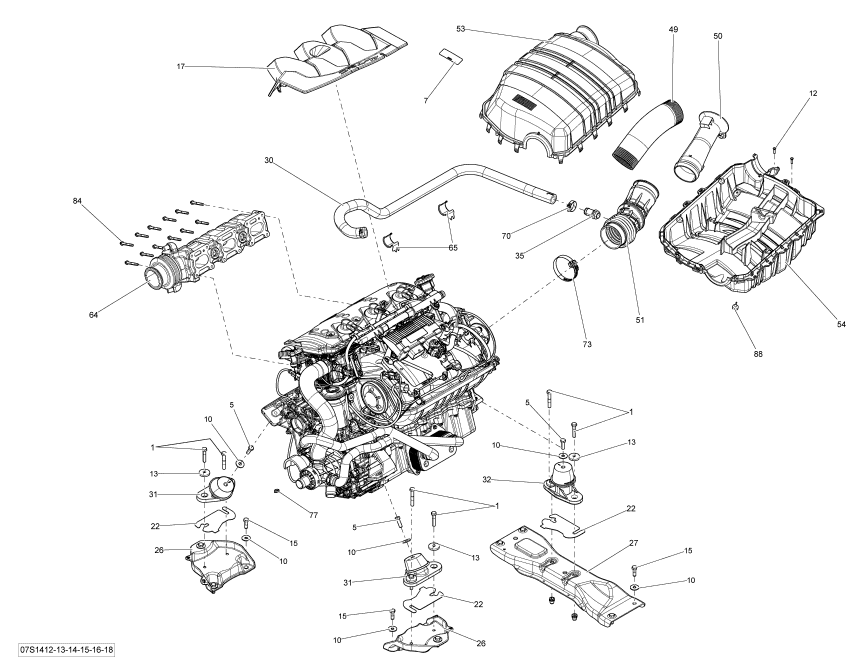

1

207284060

SCREW-HEX.CAP-DIN.931A2 S.GRIP
Hex.

1

207385060

SCREW-HEX CAP DIN
Hex.

5

207382560

SCREW-HEX.CAP DIN.933A2 S.GRIP
Hex.

7

219903177

NOTICE LABEL
Notice

10

234082600

WASHER-FLAT DIN.9021B-A2
Flat

12

250000287

SCREW-PT.FLANGE PAN HDTORX.K40 X 16
Flanged

13

250200018

WASHER-CONE
Cone

15

250000525

SCREW-HEX CAP DIN
Hex.

17

270000680

COVER
Engine

22

270000762

SHIM 1-3MM
Shim

26

270000815

SPACER REAR
Rear

27

270000818

SPACER FRONT
Front

30

270000809

HOSE-FORMED
Formed

31

270000882

RUBBER MOUNT
Rubber

32

270000885

RUBBER MOUNT
Rubber

35

273000234

BREATHER
Breather

49

273000290

TUBE
Air

50

273000291

INTAKE TUBE
Intake

51

273000292

CONNECT HOSE
Hose

53

273000297

AIRBOX COVER
Air

54

273000298

AIRBOX BASE
Air

64

274001504

MANIFOLD
Exhaust

65

275500664

RETAINER
Retainer

70

293650051

CLAMP-TRIDON
Tridon

73

293650179

CLAMP-TRIDON
Tridon

77

293750002

TIE-RAP 130MM
Tie-Rap

84

420641198

TORX FLANGE SCREW
Flanged

88

708000759

STOPPER-RUBBER
Rubber
