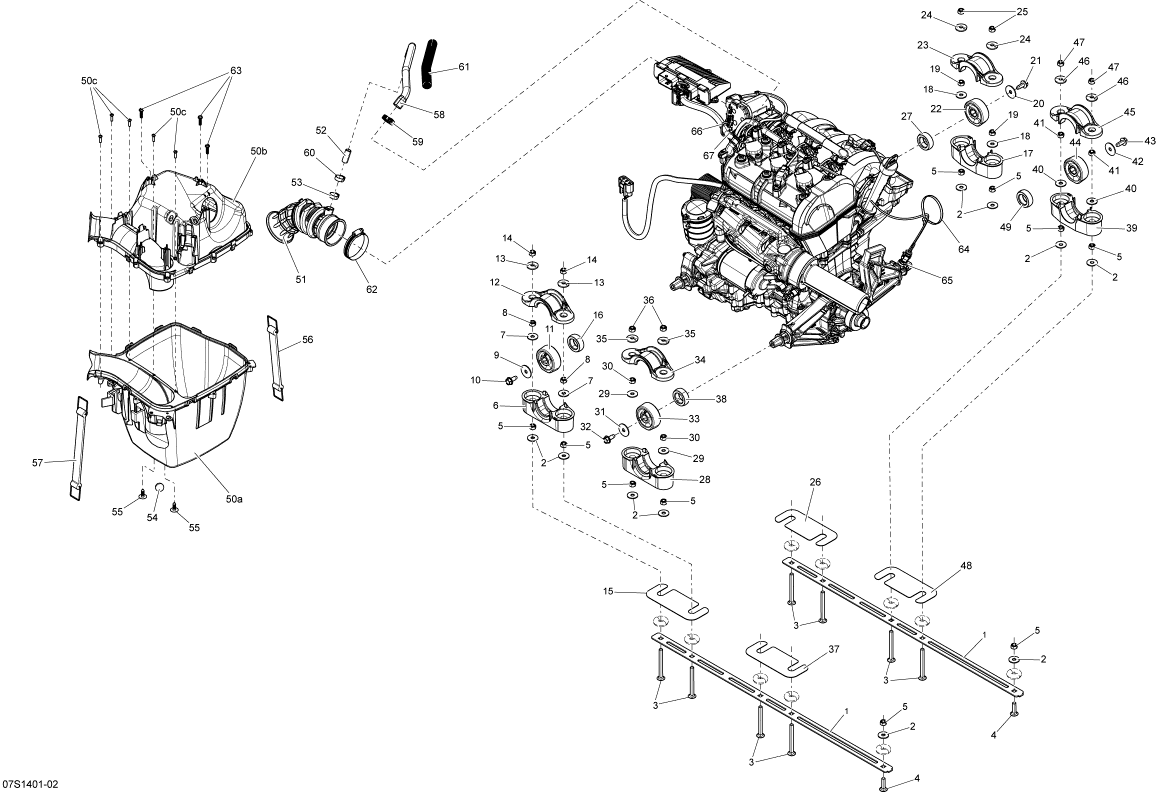

見出番号 |
部品番号 |
部品名 |
数量 |
1 |
270000862 |
RETAINING PLATE
Retaining
|
|
2 |
234082600 |
WASHER-FLAT DIN.9021B-A2
Flat
|
|
3 |
207789060 |
BOLT-CARRIAGE DIN
Carriage
|
|
4 |
207783060 |
BOLT-CARRIAGE DIN
Carriage
|
|
5 |
232581200 |
NUT-STOP ELASTIC DIN.985
Hex.
|
|
6 |
270000858 |
MOUNT BASE
Mount
|
|
7 |
234082600 |
WASHER-FLAT DIN.9021B-A2
Flat
|
|
8 |
232581200 |
NUT-STOP ELASTIC DIN.985
Hex.
|
|
9 |
250200130 |
WASHER-FLAT M8
Flat
|
|
10 |
250000645 |
SCREW-FORMING HEX HD
Forming
|
|
11 |
270000852 |
MOUNT-RUBBER
Rubber
|
|
12 |
270000859 |
MOUNT CLAMP
Mount
|
|
13 |
250200137 |
WASHER-CONE
Conical
|
|
14 |
232581200 |
NUT-STOP ELASTIC DIN.985
Hex.
|
|
15 |
270000865 |
SHIM 1-3MM
Shim
|
|
16 |
270000863 |
RUBBER STOPPER
Rubber
|
|
17 |
270000858 |
MOUNT BASE
Mount
|
|
18 |
234082600 |
WASHER-FLAT DIN.9021B-A2
Flat
|
|
19 |
232581200 |
NUT-STOP ELASTIC DIN.985
Hex.
|
|
20 |
250200130 |
WASHER-FLAT M8
Flat
|
|
21 |
250000645 |
SCREW-FORMING HEX HD
Forming
|
|
22 |
270000852 |
MOUNT-RUBBER
Rubber
|
|
23 |
270000859 |
MOUNT CLAMP
Mount
|
|
24 |
250200137 |
WASHER-CONE
Conical
|
|
25 |
232581200 |
NUT-STOP ELASTIC DIN.985
Hex.
|
|
26 |
270000865 |
SHIM 1-3MM
Shim
|
|
27 |
270000863 |
RUBBER STOPPER
Rubber
|
|
28 |
270000858 |
MOUNT BASE
Mount
|
|
29 |
234082600 |
WASHER-FLAT DIN.9021B-A2
Flat
|
|
30 |
232581200 |
NUT-STOP ELASTIC DIN.985
Hex.
|
|
31 |
250200130 |
WASHER-FLAT M8
Flat
|
|
32 |
250000645 |
SCREW-FORMING HEX HD
Forming
|
|
33 |
270000852 |
MOUNT-RUBBER
Rubber
|
|
34 |
270000859 |
MOUNT CLAMP
Mount
|
|
35 |
250200137 |
WASHER-CONE
Conical
|
|
36 |
232581200 |
NUT-STOP ELASTIC DIN.985
Hex.
|
|
37 |
270000865 |
SHIM 1-3MM
Shim
|
|
38 |
270000863 |
RUBBER STOPPER
Rubber
|
|
39 |
270000858 |
MOUNT BASE
Mount
|
|
40 |
234082600 |
WASHER-FLAT DIN.9021B-A2
Flat
|
|
41 |
232581200 |
NUT-STOP ELASTIC DIN.985
Hex.
|
|
42 |
250200130 |
WASHER-FLAT M8
Flat
|
|
43 |
250000645 |
SCREW-FORMING HEX HD
Forming
|
|
44 |
270000852 |
MOUNT-RUBBER
Rubber
|
|
45 |
270000859 |
MOUNT CLAMP
Mount
|
|
46 |
250200137 |
WASHER-CONE
Conical
|
|
47 |
232581200 |
NUT-STOP ELASTIC DIN.985
Hex.
|
|
48 |
270000865 |
SHIM 1-3MM
Shim
|
|
49 |
270000863 |
RUBBER STOPPER
Rubber
|
|
50a |
273000314 |
AIRBOX BASE
Airbox
|
|
50b |
273000315 |
AIRBOX COVER
Airbox
|
|
50c |
250000287 |
SCREW-PT.FLANGE PAN HDTORX.K40 X 16
Flanged
|
|
51 |
273000318 |
CONNECTOR HOSE
Connector
|
|
52 |
270000857 |
UNION
Union-Hose
|
|
53 |
293650011 |
CLAMP-OETIKER
Oetiker
|
|
54 |
293830080 |
FLOATING BALL
Floating
|
|
55 |
293730011 |
DART-BLACK
Dart,
|
|
56 |
515176044 |
STRAP-BATTERY
Battery
|
|
57 |
293850087 |
STRAP-FUEL TANK
Fuel
|
|
58 |
270000856 |
FORMED HOSE
Formed
|
|
59 |
293650172 |
HOSE CLAMP
Tridon
|
|
60 |
293650011 |
CLAMP-OETIKER
Oetiker
|
|
61 |
415080000 |
TUBING-16MM I.D.1M/PAC
Tubing
|
|
62 |
293650023 |
CLAMP-TRIDON
Tridon
|
|
63 |
241152060 |
HEX WASHER HEAD PT SCREW
Hex.
|
|
64 |
293750008 |
TIE-RAP 350MM
Tie-Rap
|
|
65 |
293750002 |
TIE-RAP 130MM
Tie-Rap
|
|
66 |
414115200 |
TIE-RAP 180MM
Tie-Rap
|
|
67 |
414115200 |
TIE-RAP 180MM
Tie-Rap
|
|
