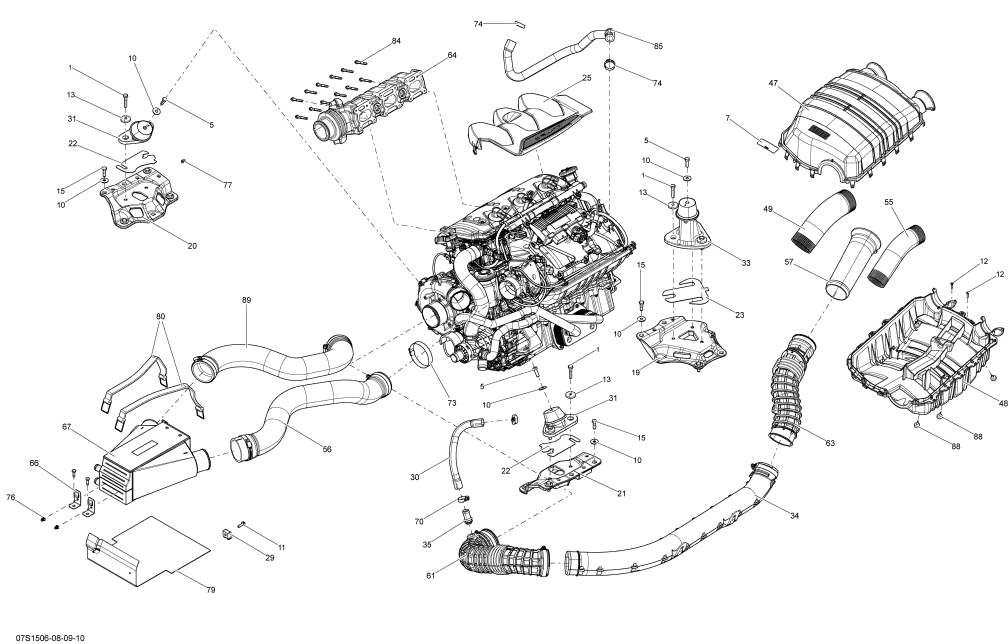

見出番号 |
部品番号 |
部品名 |
数量 |
1 |
207284060 |
SCREW-HEX.CAP-DIN.931A2 S.GRIP
Hex.
|
|
1 |
250000782 |
SCREW-HEX CAP
Hexagonal
|
|
5 |
207382560 |
SCREW-HEX.CAP DIN.933A2 S.GRIP
Hex.
|
|
7 |
219903177 |
NOTICE LABEL
Notice
|
|
10 |
234082600 |
WASHER-FLAT DIN.9021B-A2
Flat
|
|
11 |
243162060 |
SCREW-PLASTITE HEXUNSL
Hex.
|
|
12 |
250000287 |
SCREW-PT.FLANGE PAN HDTORX.K40 X 16
Flanged
|
|
13 |
250200018 |
WASHER-CONE
Cone
|
|
15 |
250000525 |
SCREW-HEX CAP DIN
Hex.
|
|
19 |
270000767 |
SPACER
Spacer
|
|
20 |
270000763 |
SPACER
Spacer
|
|
21 |
270000766 |
SPACER
Spacer
|
|
22 |
270000762 |
SHIM 1-3MM
Shim
|
|
23 |
270000770 |
SHIM 1-3MM
Shim
|
|
25 |
270000804 |
COVER
Engine
|
|
29 |
270000854 |
STRAP ANCHOR
Strap
|
|
29 |
270000946 |
STRAP ANCHOR
Strap
|
|
30 |
270000950 |
FORMED HOSE
Formed
|
|
31 |
270000882 |
RUBBER MOUNT
Rubber
|
|
33 |
270000886 |
RUBBER MOUNT
Rubber
|
|
34 |
273000233 |
INTAKE HOSE
Hose
|
|
35 |
273000234 |
BREATHER
Breather
|
|
47 |
273000288 |
AIRBOX COVER
Air
|
|
48 |
273000289 |
AIRBOX BASE
Air
|
|
49 |
273000290 |
TUBE
Air
|
|
55 |
273000299 |
TUBE
Air
|
|
56 |
273000300 |
OUTLET HOSE
Outlet
|
|
57 |
273000301 |
INTAKE TUBE
Intake
|
|
61 |
273000328 |
INTAKE HOSE
Hose
|
|
63 |
273000322 |
CONNECT HOSE
Hose
|
|
64 |
274001553 |
ENGINE EXHAUST MANIFOLD
Engine
|
|
66 |
275500743 |
CLIP-STRAP 90
Strap
|
|
67 |
276000332 |
INTERCOOLER
Intercooler
|
|
70 |
293650051 |
CLAMP-TRIDON
Tridon
|
|
73 |
293650179 |
CLAMP-TRIDON
Tridon
|
|
74 |
293650217 |
CRIMP CLAMP
Crimp
|
|
76 |
293730016 |
DART-BLACK
Dart,
|
|
77 |
293750002 |
TIE-RAP 130MM
Tie-Rap
|
|
79 |
293830146 |
PAD-RUBBER
Rubber
|
|
80 |
293850111 |
STRAP
Strap
|
|
84 |
420641198 |
TORX FLANGE SCREW
Flanged
|
|
85 |
420822174 |
FORMED HOSE
Formed
|
|
88 |
708000759 |
STOPPER-RUBBER
Rubber
|
|
89 |
273000282 |
INLET HOSE
Inlet
|
|
