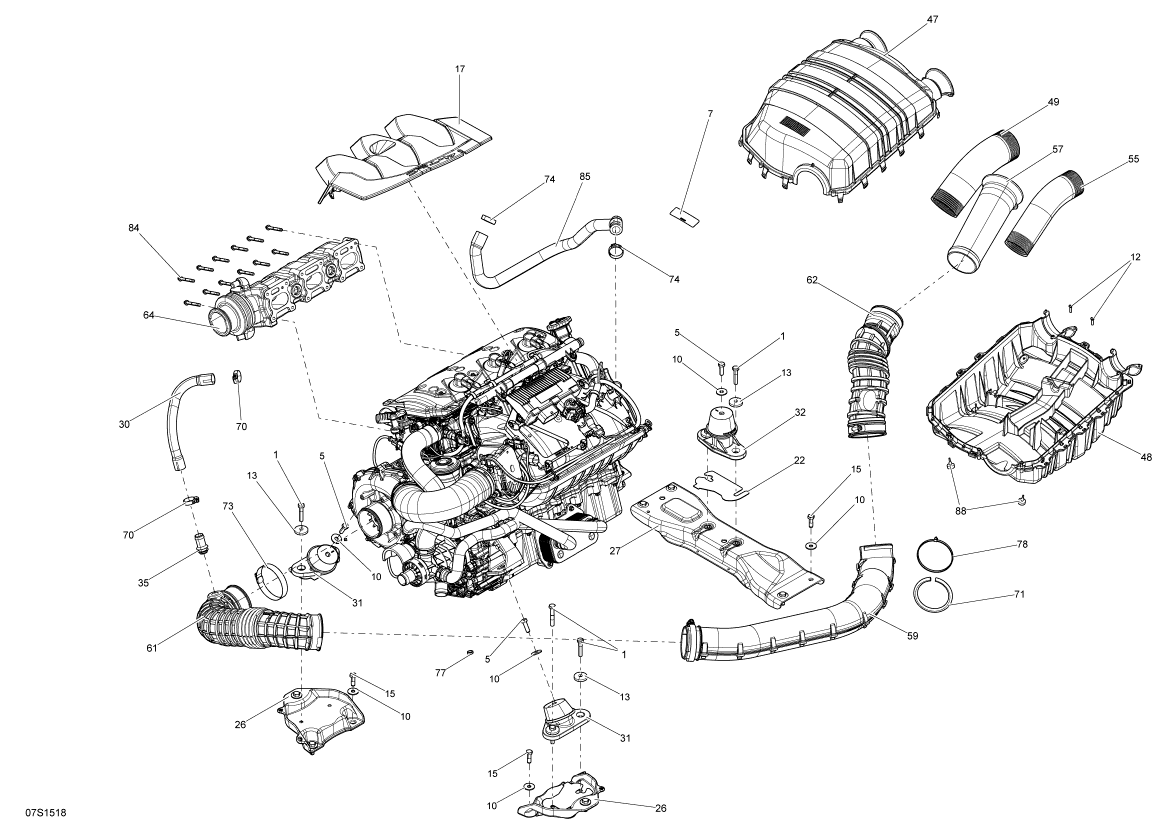

1

207284060

SCREW-HEX.CAP-DIN.931A2 S.GRIP
Hex.

1

250000782

SCREW-HEX CAP
Hexagonal

5

207382560

SCREW-HEX.CAP DIN.933A2 S.GRIP
Hex.

7

219903177

NOTICE LABEL
Notice

10

234082600

WASHER-FLAT DIN.9021B-A2
Flat

12

250000287

SCREW-PT.FLANGE PAN HDTORX.K40 X 16
Flanged

13

250200018

WASHER-CONE
Cone

15

250000525

SCREW-HEX CAP DIN
Hex.

17

270000680

COVER
Engine

22

270000762

SHIM 1-3MM
Shim

26

270000815

SPACER REAR
Rear

27

270000818

SPACER FRONT
Front

30

270000949

FORMED HOSE
Formed

31

270000882

RUBBER MOUNT
Rubber

32

270000885

RUBBER MOUNT
Rubber

35

273000234

BREATHER
Breather

49

273000290

TUBE
Air

57

273000359

INTAKE TUBE
Intake

62

273000292

CONNECT HOSE
Hose

47

273000357

AIRBOX COVER
Air

48

273000356

AIRBOX BASE
Air

64

274001553

ENGINE EXHAUST MANIFOLD
Engine

71

275500664

RETAINER
Retainer

70

293650051

CLAMP-TRIDON
Tridon

73

293650179

CLAMP-TRIDON
Tridon

78

293750002

TIE-RAP 130MM
Tie-Rap

84

420641198

TORX FLANGE SCREW
Flanged

88

708000759

STOPPER-RUBBER
Rubber
