純正パーツカタログよりご注文又はお見積

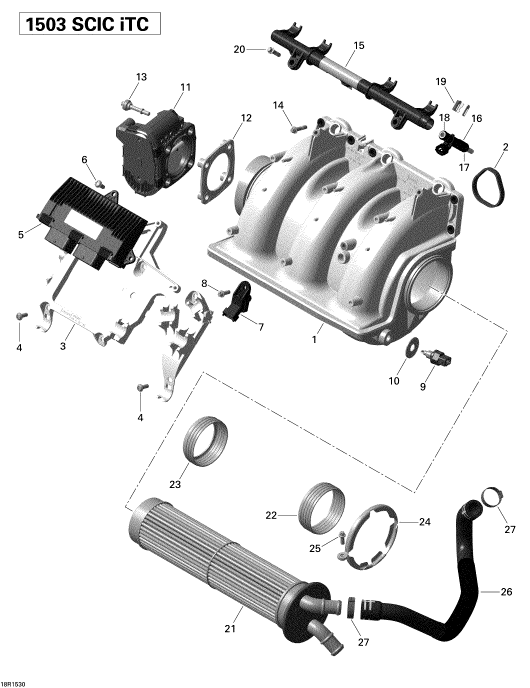

BRP　SEA DOO  2015年式  GTR 215 36FB ＞ エアーインテークマニホールド　スロットルボディー
>>セクション一覧    >>モデル一覧

見出番号

部品番号

部品名

数量

1

420867955

INDUCTION MANIFOLD-BV
Air

1

420867955

INDUCTION MANIFOLD-BV
Air

2

420950740

GASKET
Gasket

2

420950740

GASKET
Gasket

3

420460842

BASE PLATE
Base

3

420460842

BASE PLATE
Base

4

420641588

TORX FLANGE SCREW
Flanged

4

420641588

TORX FLANGE SCREW
Flanged

5

420666530

ELECTRONIC BOX
Electronic

5

420666530

ELECTRONIC BOX
Electronic

5

420666531

ELECTRONIC BOX
Electronic

5

420666531

ELECTRONIC BOX
Electronic

6

420641588

TORX FLANGE SCREW
Flanged

6

420641588

TORX FLANGE SCREW
Flanged

7

420274057

PRESSURE SENSOR
Pressure

7

420274057

PRESSURE SENSOR
Pressure

8

420641048

TORX FLANGE SCREW
Flanged

8

420641048

TORX FLANGE SCREW
Flanged

9

420222423

TEMPERATURE SENSOR
Temperature

9

420222423

TEMPERATURE SENSOR
Temperature

10

420227987

THRUST WASHER
Thrust

10

420227987

THRUST WASHER
Thrust

11

420892591

THROTTLE BODY SOCKET
Throttle

11

420892591

THROTTLE BODY SOCKET
Throttle

12

420950792

RUBBER GASKET
Rubber

12

420950792

RUBBER GASKET
Rubber

13

420440560

SCREW-TORX
Torx

13

420440560

SCREW-TORX
Torx

14

420641238

SCREW-TORX FLANGE
Flanged

14

420641238

SCREW-TORX FLANGE
Flanged

15

420874396

FUEL RAIL ASSY
Fuel

15

420874396

FUEL RAIL ASSY
Fuel

16

420874834

INJECTOR
Fuel

16

420874834

INJECTOR
Fuel

17

420431890

O-RING
O-Ring

17

420431890

O-RING
O-Ring

18

420631220

O-RING
O-Ring

18

420631220

O-RING
O-Ring

19

420853030

CLIP
Clip

19

420853030

CLIP
Clip

20

420641238

SCREW-TORX FLANGE
Flanged

20

420641238

SCREW-TORX FLANGE
Flanged

21

420889654

INTERCOOLER
Intercooler

21

420889654

INTERCOOLER
Intercooler

22

420631990

PROFILE RING
Profile

22

420631990

PROFILE RING
Profile

23

420631995

PROFILE RING
Profile

23

420631995

PROFILE RING
Profile

24

420853253

GEAR CLAMP
Gear

24

420853253

GEAR CLAMP
Gear

25

420641048

TORX FLANGE SCREW
Flanged

25

420641048

TORX FLANGE SCREW
Flanged

26

420822174

FORMED HOSE
Formed

26

420822174

FORMED HOSE
Formed

27

420851673

GEAR CLAMP
Gear

27

420851673

GEAR CLAMP
Gear
