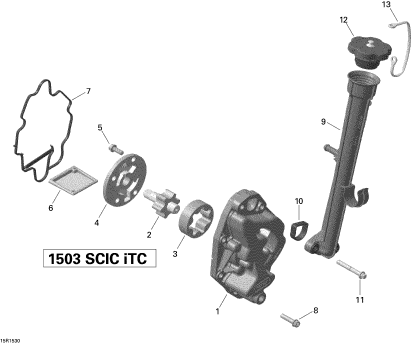

1

420812723

OIL PUMP HOUSING
Oil

1

420812723

OIL PUMP HOUSING
Oil

2

420837543

PUMP SHAFT ASSY
Oil

2

420837543

PUMP SHAFT ASSY
Oil

3

420956675

OUTER ROTOR 16MM
Oil

3

420956675

OUTER ROTOR 16MM
Oil

4

420811850

OIL PUMP COVER
Oil

4

420811850

OIL PUMP COVER
Oil

5

420641048

TORX FLANGE SCREW
Flanged

5

420641048

TORX FLANGE SCREW
Flanged

6

420856520

OIL SIEVE
Oil

6

420856520

OIL SIEVE
Oil

7

420631486

GASKET
Gasket

7

420631486

GASKET
Gasket

8

420641238

SCREW-TORX FLANGE
Flanged

8

420641238

SCREW-TORX FLANGE
Flanged

9

420856511

OIL FILLER TUBE
Oil

9

420856511

OIL FILLER TUBE
Oil

10

420430240

GASKET
Gasket

10

420430240

GASKET
Gasket

11

420641198

TORX FLANGE SCREW
Flanged

11

420641198

TORX FLANGE SCREW
Flanged

12

420956923

PLUG COVER ASSEMBLY YELLOW
Plug

12

420956923

PLUG COVER ASSEMBLY YELLOW
Plug

13

420660620

RETAINING BAND
Retaining

13

420660620

RETAINING BAND
Retaining
