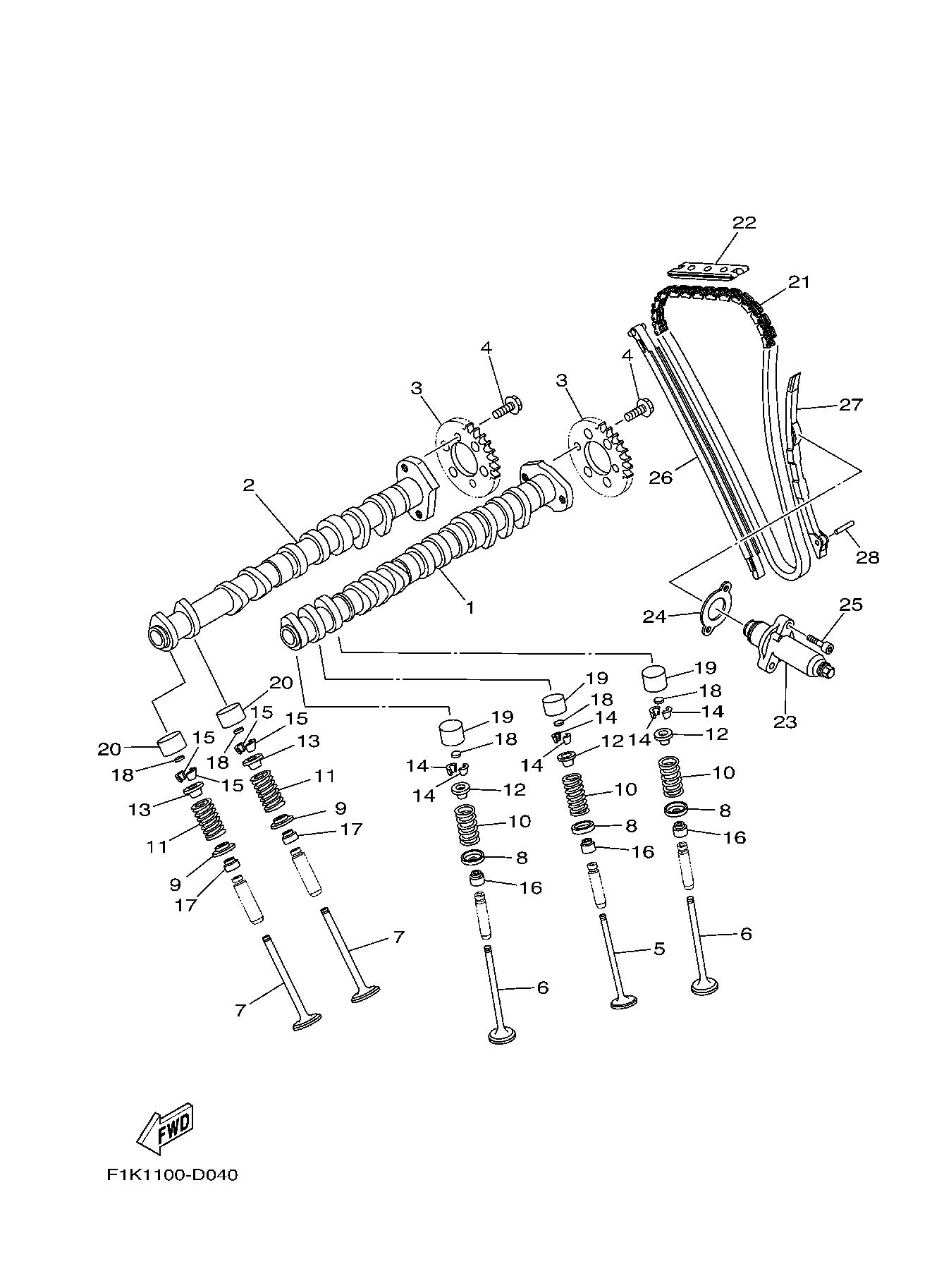

1

6D3-12171-11

ｶﾑｼﾔﾌﾄ 1

2

6D3-12181-00

ｶﾑｼﾔﾌﾄ 2

3

6D3-12176-00

ｽﾌﾟﾛｹﾂﾄ,ｶﾑﾁｴ-ﾝ

4

90105-07004

ﾎﾞﾙﾄ,ﾌﾗﾝｼﾞ

5

4XV-12111-00

VALVE, INTAKE

6

4XV-12112-00

VALVE, INTAKE 2

7

5LV-12121-00

VALVE, EXHAUST

8

1HX-12116-01

SEAT, VALVE SPRING

9

3GM-12126-00

SEAT, VALVE SPRING 2

10

4XV-12113-00

SPRING, VALVE INNER

11

4XV-12114-00

SPRING, VALVE OUTER

12

1HX-12117-00

RETAINER, VALVE SPRING

13

1WG-12117-00

RETAINER, VALVE SPRING

14

1HX-12118-00

COTTER, VALVE

15

1WG-12118-00

ｺﾂﾀ,ﾊﾞﾙﾌﾞ

16

4TV-12119-00

SEAL, VALVE STEM

17

4SV-12119-00

SEAL, VALVE STEM

18

1HX-12168-00

ﾊﾟﾂﾄﾞ,ｱｼﾞﾔｽﾃｲﾝｸﾞ2(120)

18

1HX-12168-20

ﾊﾟﾂﾄﾞ,ｱｼﾞﾔｽﾃｲﾝｸﾞ2(125)

18

1HX-12168-40

ﾊﾟﾂﾄﾞ,ｱｼﾞﾔｽﾃｲﾝｸﾞ2(130)

18

1HX-12168-60

ﾊﾟﾂﾄﾞ,ｱｼﾞﾔｽﾃｲﾝｸﾞ2(135)

18

1HX-12168-80

ﾊﾟﾂﾄﾞ,ｱｼﾞﾔｽﾃｲﾝｸﾞ2(140)

18

1HX-12168-A0

ﾊﾟﾂﾄﾞ,ｱｼﾞﾔｽﾃｲﾝｸﾞ2(145)

18

1HX-12168-F0

ﾊﾟﾂﾄﾞ,ｱｼﾞﾔｽﾃｲﾝｸﾞ2(150)

18

1HX-12168-H1

ﾊﾟﾂﾄﾞ,ｱｼﾞﾔｽﾃｲﾝｸﾞ2(155)

18

1HX-12168-K1

ﾊﾟﾂﾄﾞ,ｱｼﾞﾔｽﾃｲﾝｸﾞ2(160)

18

1HX-12168-M1

ﾊﾟﾂﾄﾞ,ｱｼﾞﾔｽﾃｲﾝｸﾞ2(165)

18

1HX-12168-R1

ﾊﾟﾂﾄﾞ,ｱｼﾞﾔｽﾃｲﾝｸﾞ2(170)

18

1HX-12168-U1

ﾊﾟﾂﾄﾞ,ｱｼﾞﾔｽﾃｲﾝｸﾞ2(175)

18

1HX-12168-W1

ﾊﾟﾂﾄﾞ,ｱｼﾞﾔｽﾃｲﾝｸﾞ2(180)

18

1HX-12168-Y1

ﾊﾟﾂﾄﾞ,ｱｼﾞﾔｽﾃｲﾝｸﾞ2(185)

18

1HX-12169-11

ﾊﾟﾂﾄﾞ,ｱｼﾞﾔｽﾃｲﾝｸﾞ2(190)

18

1HX-12169-31

ﾊﾟﾂﾄﾞ,ｱｼﾞﾔｽﾃｲﾝｸﾞ2(195)

18

1HX-12169-50

ﾊﾟﾂﾄﾞ,ｱｼﾞﾔｽﾃｲﾝｸﾞ2(200)

18

1HX-12169-70

ﾊﾟﾂﾄﾞ,ｱｼﾞﾔｽﾃｲﾝｸﾞ2(205)

18

1HX-12169-90

ﾊﾟﾂﾄﾞ,ｱｼﾞﾔｽﾃｲﾝｸﾞ2(210)

18

1HX-12169-E0

ﾊﾟﾂﾄﾞ,ｱｼﾞﾔｽﾃｲﾝｸﾞ2(215)

18

1HX-12169-G0

ﾊﾟﾂﾄﾞ,ｱｼﾞﾔｽﾃｲﾝｸﾞ2(220)

18

1HX-12169-J0

ﾊﾟﾂﾄﾞ,ｱｼﾞﾔｽﾃｲﾝｸﾞ2(225)

18

1HX-12169-L0

ﾊﾟﾂﾄﾞ,ｱｼﾞﾔｽﾃｲﾝｸﾞ2(230)

18

1HX-12169-N0

ﾊﾟﾂﾄﾞ,ｱｼﾞﾔｽﾃｲﾝｸﾞ2(235)

18

1HX-12169-T0

ﾊﾟﾂﾄﾞ,ｱｼﾞﾔｽﾃｲﾝｸﾞ2(240)

19

3LN-12153-10

ﾘﾌﾀ,ﾊﾞﾙﾌﾞ

20

3FV-12153-10

LIFTER, VALVE

21

94591-49130

ﾁｴ-ﾝ

22

5BE-12241-00

ｶﾞｲﾄﾞ,ｽﾄﾂﾊﾟ2

23

6D3-12210-00

ﾃﾝｼﾖﾅｱｾﾝﾌﾞﾘ,ｶﾑﾁｴ-ﾝ

24

4FM-12213-00

GASKET, TENSIONER CASE

25

91380-06025

ﾎﾞﾙﾄ

26

6D3-12251-00

ﾀﾞﾝﾊﾟ,ﾁｴ-ﾝ 1

27

4XV-12252-00

DAMPER, CHAIN 2

28

93607-44002

ﾋﾟﾝ,ﾀﾞｳｴﾙ
