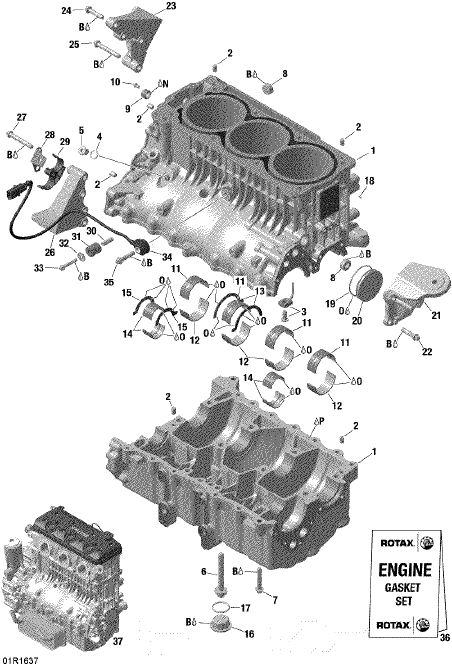

見出番号 |
部品番号 |
部品名 |
数量 |
110 |
420893574 |
CYLINDER BLOCK W SLEEVES
Cylinder
|
|
2 |
420632010 |
PIN-CENTER
Center
|
|
3 |
420956772 |
OIL SPRAY NOZZLE
Oil
|
|
4 |
420250015 |
ALUMINUM WASHER
Washer,
|
|
5 |
420841923 |
PLUG SCREW M12
Plug
|
|
6 |
420641120 |
TORX-RED SHAFT SCREW M11X147
Torx
|
|
7 |
420641208 |
HEX FLANGED SCREW M8 X 45
Hex.
|
|
8 |
420641317 |
PLUG SCREW
Plug
|
|
9 |
420232482 |
BUSHING-NEEDLE
Needle
|
|
10 |
420456431 |
OIL SPRAYING JET
Oil
|
|
11 |
420933456 |
PLAIN BEARING HALF
Plain
|
|
12 |
420933466 |
PLAIN BEARING HALF
Plain
|
|
13 |
420933475 |
RING HALF
Half-Ring
|
|
14 |
420933442 |
PLAIN BEARING HALF
Plain
|
|
15 |
420933470 |
RING HALF
Half-Ring
|
|
1617 |
420641171 |
PLUG SCREW M30
Plug
|
|
17 |
420631300 |
O-RING
O-Ring
|
|
18 |
420249073 |
GROOVED PIN
Grooved
|
|
19 |
420430405 |
O-RING
O-Ring
|
|
20 |
420660110 |
PLUG COVER
Plug
|
|
21 |
420811792 |
ENGINE BRACKET FRONT
Front
|
|
22 |
420641188 |
TORX FLANGE SCREW
Flanged
|
|
23 |
420811787 |
ENGINE BRACKET PTO EXH.
Engine
|
|
24 |
420641188 |
TORX FLANGE SCREW
Flanged
|
|
25 |
420641213 |
TORX FLANGE SCREW
Flanged
|
|
26 |
420811782 |
ENGINE BRACKET PTO INL.
Engine
|
|
27 |
420641213 |
TORX FLANGE SCREW
Flanged
|
|
28 |
420851740 |
RETAINING PLATE
Retaining
|
|
29 |
420660290 |
HOSE BRACKET
Hose
|
|
30 |
420847971 |
SPACER
Spacer
|
|
31 |
420660090 |
RUBBER BRACKET
Rubber
|
|
32 |
420827968 |
WASHER M6
Flat
|
|
33 |
420641258 |
SCREW TORX FLANGE M6 X 35
Flanged
|
|
34 |
420664031 |
KNOCK SENSOR
Noise
|
|
35 |
420641188 |
TORX FLANGE SCREW
Flanged
|
|
36 |
420889775 |
ENGINE GASKET SET
Engine
|
|
37 |
420160310 |
ENGINE LONG BLOCK 1603 XHO
Engine
|
|
