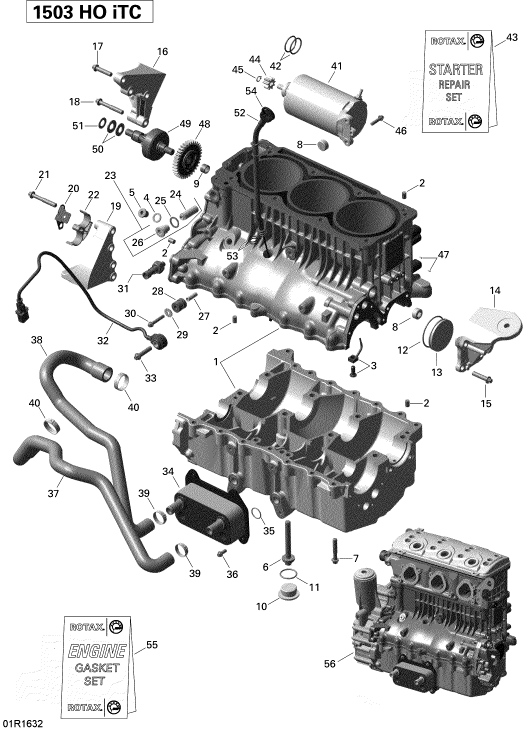

見出番号 |
部品番号 |
部品名 |
数量 |
1 |
420893166 |
CYLINDER BLOCK W SLEEVES
Cylinder
|
|
2 |
420632010 |
PIN-CENTER
Center
|
|
3 |
420956778 |
OIL SPRAY NOZZLE
Oil
|
|
4 |
420250015 |
ALUMINUM WASHER
Washer,
|
|
5 |
420841923 |
PLUG SCREW M12
Plug
|
|
6 |
420641120 |
TORX-RED SHAFT SCREW M11X147
Torx
|
|
7 |
420641208 |
HEX FLANGED SCREW M8 X 45
Torx
|
|
8 |
420641317 |
PLUG SCREW
Plug
|
|
9 |
420232482 |
BUSHING-NEEDLE
Needle
|
|
10 |
420641171 |
PLUG SCREW M30
Plug
|
|
11 |
420631300 |
O-RING
O-Ring
|
|
12 |
420430405 |
O-RING
O-Ring
|
|
13 |
420660110 |
PLUG COVER
Plug
|
|
14 |
420811792 |
ENGINE BRACKET FRONT
Front
|
|
15 |
420641188 |
TORX FLANGE SCREW
Flanged
|
|
16 |
420811787 |
ENGINE BRACKET PTO EXH.
Engine
|
|
17 |
420641188 |
TORX FLANGE SCREW
Flanged
|
|
18 |
420641213 |
TORX FLANGE SCREW
Flanged
|
|
19 |
420811782 |
ENGINE BRACKET PTO INL.
Engine
|
|
20 |
420851740 |
RETAINING PLATE
Retaining
|
|
21 |
420641213 |
TORX FLANGE SCREW
Flanged
|
|
22 |
420660290 |
HOSE BRACKET
Hose
|
|
23 |
420236259 |
CHAIN TENSIONER W SCREW
Chain
|
|
24 |
XXX |
Chain
|
|
25 |
420430623 |
GASKET RING A
Gasket
|
|
26 |
XXX |
Plug
|
|
27 |
420847971 |
SPACER
Spacer
|
|
28 |
420660090 |
RUBBER BRACKET
Rubber
|
|
29 |
420827968 |
WASHER M6
Flat
|
|
30 |
420641258 |
SCREW TORX FLANGE M6 X 35
Flanged
|
|
31 |
420256916 |
OIL PRESSURE SWITCH
Oil
|
|
32 |
420664031 |
KNOCK SENSOR
Noise
|
|
33 |
420641188 |
TORX FLANGE SCREW
Flanged
|
|
34 |
420888852 |
OIL RADIATOR
Oil
|
|
35 |
420250055 |
O-RING
O-Ring
|
|
36 |
420641048 |
TORX FLANGE SCREW
Flanged
|
|
37 |
420922798 |
FORMED HOSE
Formed
|
|
38 |
420922792 |
FORMED HOSE
Formed
|
|
39 |
420851668 |
GEAR CLAMP
Gear
|
|
40 |
420851673 |
GEAR CLAMP
Gear
|
|
41 |
420888995 |
ELECTRIC STARTER ASSY
Electric
|
|
42 |
420631310 |
O-RING
O-Ring
|
|
43 |
420881340 |
CARBON BRUSH SET
Carbon
|
|
44 |
420834522 |
STARTER GEAR 9 T
Starter
|
|
45 |
420845600 |
RING-RETAINING
Retaining
|
|
46 |
420641238 |
SCREW-TORX FLANGE
Flanged
|
|
47 |
420249073 |
GROOVED PIN
Grooved
|
|
48 |
420889872 |
FRICTION CLUTCH
Friction
|
|
49 |
420890639 |
BENDIX STARTER
Bendix
|
|
50 |
420238300 |
SPRING-DISK
Spring
|
|
51 |
420827261 |
WASHER-THRUST
Thrust
|
|
52 |
420956944 |
OIL LEVEL TUBE
Oil
|
|
53 |
420950810 |
O-RING
O-Ring
|
|
54 |
420956933 |
OIL LEVEL GAUGE
Oil
|
|
55 |
420889773 |
ENGINE GASKET SET
Engine
|
|
56 |
420150375 |
BLOCK-LONG 1503 HO
Engine
|
|
