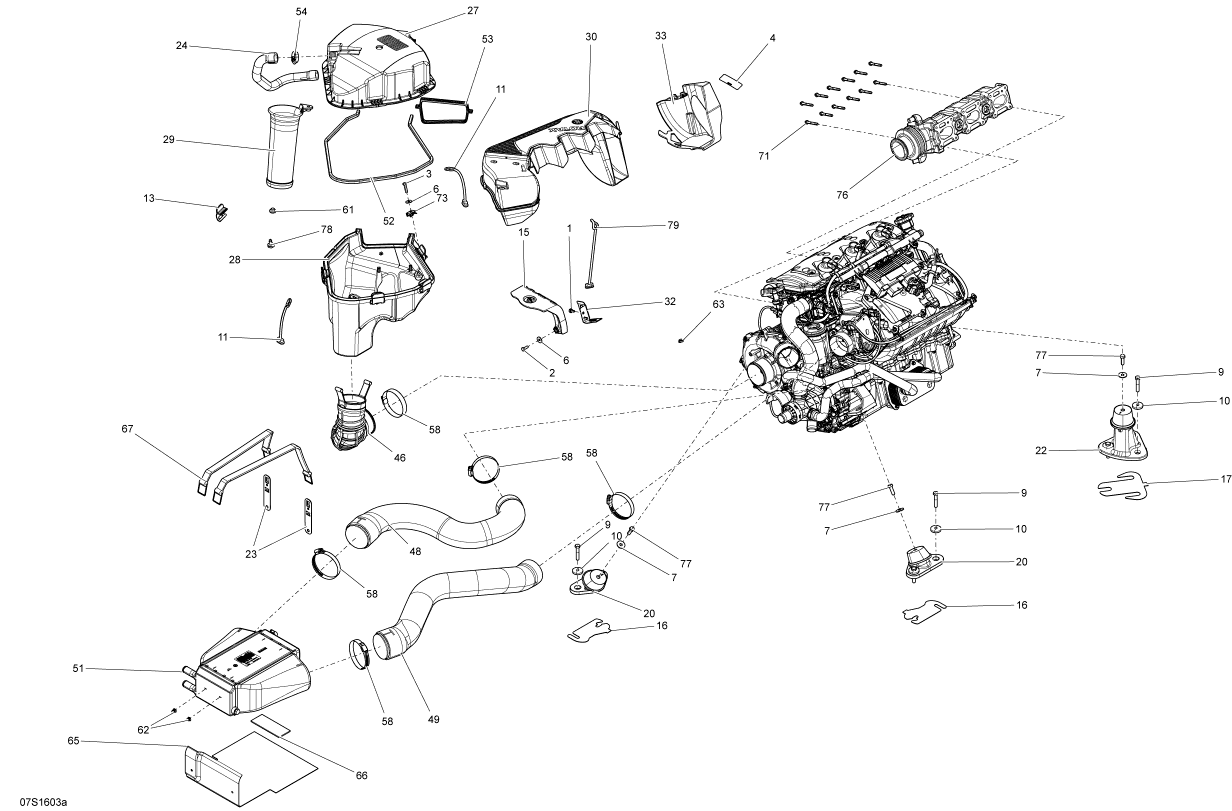

見出番号 |
部品番号 |
部品名 |
数量 |
1 |
207361260 |
SCREW-HEX.CAP DIN.933A2 S.GRIP
Hex.
|
|
2 |
207361660 |
SCREW-HEX.CAP DIN.933A2 S.GRIP
Hex.
|
|
3 |
207362560 |
SCREW-HEX.CAP DIN.933A2 S.GRIP
Hex.
|
|
4 |
219903177 |
NOTICE LABEL
Notice
|
|
6 |
234062600 |
WASHER-FLAT DIN.9021B-A2
Flat
|
|
7 |
234082600 |
WASHER-FLAT DIN.9021B-A2
Flat
|
|
9 |
250000782 |
SCREW-HEX CAP
Hexagonal
|
|
10 |
250200018 |
WASHER-CONE
Cone
|
|
10 |
250200018 |
WASHER-CONE
Cone
|
|
11 |
269501299 |
STRAP
Strap
|
|
13 |
269501718 |
CLIP
Clip
|
|
15 |
270000735 |
AIRBOX SUPPORT
Air
|
|
16 |
270000762 |
SHIM 1-3MM
Shim
|
|
17 |
270000770 |
SHIM 1-3MM
Shim
|
|
20 |
270000882 |
RUBBER MOUNT
Rubber
|
|
22 |
270000886 |
RUBBER MOUNT
Rubber
|
|
23 |
270000946 |
STRAP ANCHOR
Holding
|
|
24 |
270000948 |
FORMED HOSE
Formed
|
|
27 |
273000249 |
SILENC-AIR UPP
Air
|
|
28 |
273000250 |
SILENC-AIR LOW
Air
|
|
29 |
273000359 |
INTAKE TUBE
Intake
|
|
30 |
273000253 |
INTAKE TUBE
Intake
|
|
32 |
273000260 |
AIRBOX BRACKET
Air
|
|
33 |
273000271 |
DEFLECTOR
Deflector
|
|
46 |
273000348 |
HOSE
Hose
|
|
48 |
273000361 |
FORMED HOSE
Formed
|
|
49 |
273000362 |
FORMED HOSE
Formed
|
|
51 |
276000397 |
INTERCOOLER
Intercooler
|
|
52 |
293200123 |
NEOPRENE SEAL
Neoprene
|
|
53 |
293250190 |
OIL SEAL
Seal
|
|
54 |
293650051 |
CLAMP-TRIDON
Tridon
|
|
58 |
293650179 |
CLAMP-TRIDON
Tridon
|
|
58 |
293650244 |
TRIDON GEAR CLAMP
Tridon
|
|
61 |
293720064 |
GROMMET
Grommet
|
|
63 |
293750002 |
TIE-RAP 130MM
Tie-Rap
|
|
65 |
293830146 |
PAD-RUBBER
Rubber
|
|
66 |
293830180 |
PAD-RUBBER
Pad-Rubber
|
|
67 |
293850093 |
STRAP-FUEL TANK
Strap
|
|
71 |
420641198 |
TORX FLANGE SCREW
Flanged
|
|
73 |
420942108 |
PANEL NUT
Panel
|
|
76 |
274001553 |
ENGINE EXHAUST MANIFOLD
Engine
|
|
77 |
207382560 |
SCREW-HEX.CAP DIN.933A2 S.GRIP
Hex.
|
|
78 |
275500454 |
VALVE-CHECK
Check
|
|
79 |
273000344 |
STRAP
Strap
|
|
