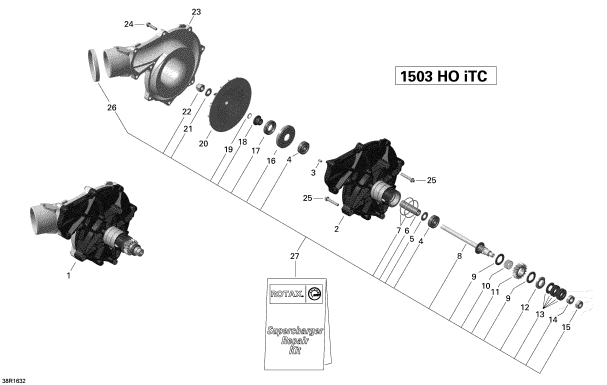

見出番号 |
部品番号 |
部品名 |
数量 |
1 |
420881992 |
SUPERCHARGER ASSY
Supercharger
|
|
2 |
420867180 |
COMPRESSOR BASE PLATE
Compressor
|
|
3 |
420929650 |
PIN-DRIVE 5X10
Drive
|
|
4 |
420832710 |
BALL BEARING
Ball
|
|
5 |
420227685 |
THRUST WASHER
Thrust
|
|
6 |
XXX |
Spacer
|
|
7 |
420650270 |
O-RING
O-Ring
|
|
8 |
XXX |
Compressor
|
|
9 |
XXX |
Friction
|
|
10 |
420632435 |
NEEDLE PIN
Needle
|
|
11 |
XXX |
Drive
|
|
12 |
XXX |
Lock
|
|
13 |
XXX |
Spring
|
|
14 |
XXX |
Angular
|
|
15 |
420942950 |
NUT-HEX.M10X1
Hex.
|
|
16 |
XXX |
Thrust
|
|
17 |
420950940 |
OIL SEAL ATS
Oil
|
|
18 |
XXX |
Step
|
|
19 |
420950950 |
O RING
O-Ring
|
|
20 |
420867195 |
COMPRESSOR IMPELLER
Compressor
|
|
21 |
420627418 |
SHIM
Shim
|
|
22 |
420842833 |
CAP NUT
Cap
|
|
23 |
420867157 |
COMPRESSOR HOUSING
Compressor
|
|
24 |
420641238 |
SCREW-TORX FLANGE
Flanged
|
|
25 |
420641258 |
SCREW TORX FLANGE M6 X 35
Flanged
|
|
26 |
420851703 |
GEAR CLAMP
Gear
|
|
27 |
420881102 |
SUPERCHARGER REPAIR SCIC
Supercharger
|
|
