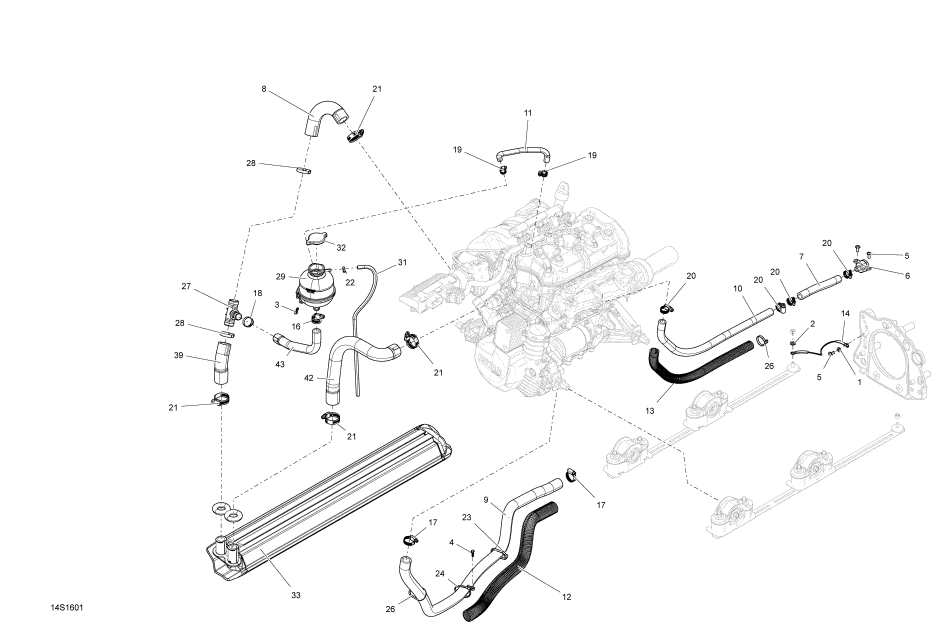

見出番号 |
部品番号 |
部品名 |
数量 |
1 |
409902200 |
TUBING-25MM
Tubing
|
|
2 |
276000158 |
HOSE-19MM (PC=1M)
Hose
|
|
3 |
241152060 |
HEX WASHER HEAD PT SCREW
Hex.
|
|
4 |
211000023 |
SCREW-PLASTITE HEX.WR.HD.UNSL
Hex.
|
|
5 |
250000384 |
SCREW-TORX BUTTON HEAD M6X14
Torx
|
|
6 |
269800521 |
DRAIN PLUG NECK
Drain
|
|
7 |
296000303 |
HOSE 12.5MM 3M/PAC
Hose
|
|
8 |
276000301 |
COOLING HOSE
Hose
|
|
9 |
276000158 |
HOSE-19MM (PC=1M)
Hose
|
|
10 |
276000151 |
HOSE-12 5MM (PC=1M)
Hose
|
|
11 |
276000316 |
FORMED HOSE
Formed
|
|
12 |
409902200 |
TUBING-25MM
Tubing
|
|
13 |
409901600 |
TUBING
Tubing
|
|
14 |
415080200 |
POLYURETHANE HOSE
Hose,
|
|
16 |
293650016 |
CLAMP-TRIDON
Tridon
|
|
17 |
293650051 |
CLAMP-TRIDON
Tridon
|
|
18 |
293650099 |
CRIMP CLAMP
Crimp
|
|
19 |
293650170 |
HOSE CLAMP
Tridon
|
|
20 |
293650172 |
HOSE CLAMP
Tridon
|
|
21 |
293650185 |
CLAMP-TRIDON
Tridon
|
|
22 |
293750001 |
TIE-RAP 94MM
Tie-Rap
|
|
23 |
293750008 |
TIE-RAP 350MM
Tie-Rap
|
|
24 |
293750049 |
TIE-RAP 305MM
Tie
|
|
26 |
414115200 |
TIE-RAP 180MM
Tie-Rap
|
|
27 |
509000372 |
T-FITTING
T-Fitting
|
|
28 |
509000529 |
CLAMP-GEAR
Oetiker
|
|
29 |
509000802 |
TANK-COOLANT
Coolant
|
|
31 |
415080200 |
POLYURETHANE HOSE
Hose,
|
|
32 |
509000180 |
PRESSURE CAP
Pressure
|
|
33 |
276000389 |
HEAT EXCHANGER
Heat
|
|
39 |
276000292 |
HOSE
Radiator
|
|
42 |
276000291 |
RAD HOSE
Radiator
|
|
43 |
296000303 |
HOSE 12.5MM 3M/PAC
Hose
|
|
|
