見出番号 |
部品番号 |
部品名 |
数量 |

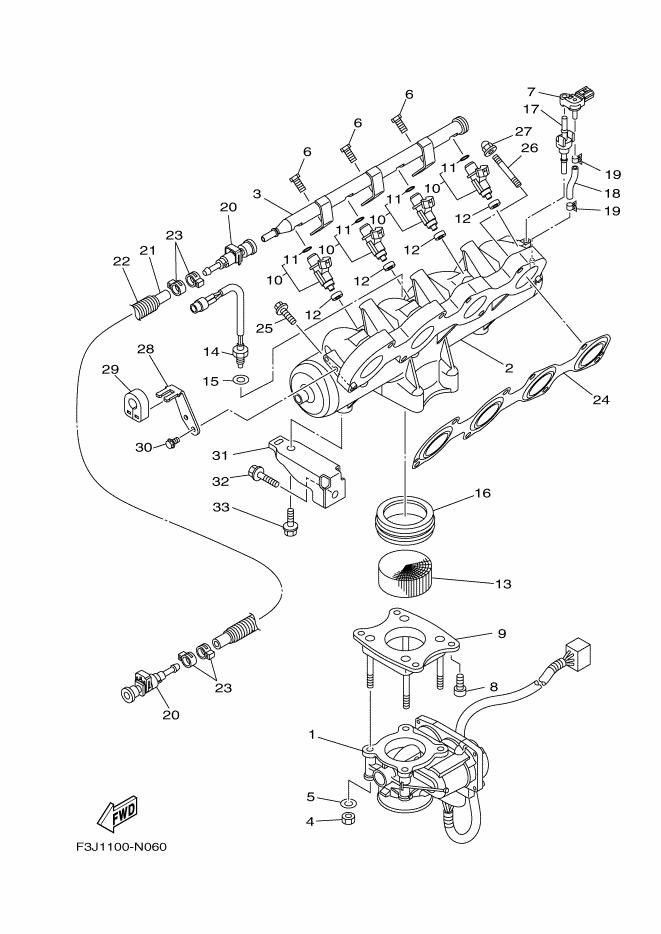

1 |
6S5-13750-11 |
THROTTLE BODY ASSY
|
|
2 |
6S5-13641-A2 |
MANIFOLD, INTAKE 1
|
|
3 |
6CS-12880-00 |
ﾃﾞﾘﾊﾞﾘｲﾊﾟｲﾌﾟ
|
|
4 |
6P2-13588-00 |
NUT
|
|
5 |
6P2-13578-00 |
WASHER
|
|
6 |
6CS-14446-00 |
ﾎﾞﾙﾄ
|
|
7 |
6BH-82380-00 |
ｾﾝｻ-,ﾌﾟﾚﾂｼﾔ-
|
|
8 |
6S5-14496-00 |
BOLT
|
|
9 |
6S5-14360-11 |
THROTTLE DAMPER ASSY
|
|
10 |
6ET-13761-00 |
ｲﾝｼﾞｴｸﾀｱｾﾝﾌﾞﾘ
|
|
11 |
68V-1416A-00 |
O-ﾘﾝｸﾞ
|
|
12 |
8FP-13556-10 |
ｶﾞｽｹﾂﾄ,ﾏﾆﾎ-ﾙﾄﾞ
|
|
13 |
6D3-1444B-00 |
ﾘﾎﾞﾝ
|
|
14 |
6S5-85886-00 |
ｾﾝｻ,ｴｱﾃﾝﾌﾟﾗﾁﾕｱ
|
|
15 |
6S5-14285-00 |
ﾜﾂｼﾔ
|
|
|
