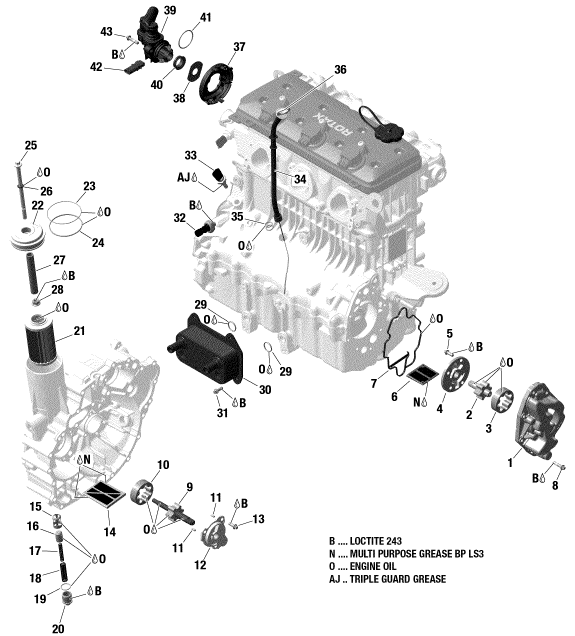

1

420812725

OIL PUMP HOUSING
Oil

2

420837543

PUMP SHAFT ASSY
Oil

3

420956675

OUTER ROTOR 16MM
Oil

4

420811850

OIL PUMP COVER
Oil

5

420641048

TORX FLANGE SCREW
Flanged

6

420856520

OIL SIEVE
Oil

7

420631486

GASKET
Gasket

8

420641238

SCREW-TORX FLANGE
Flanged

9

420837472

PUMP SHAFT ASSY
Pump

10

420956675

OUTER ROTOR 16MM
Oil

11

420929070

NEEDLE PIN
Needle

12

420811590

OIL PUMP COVER
Oil

13

420641048

TORX FLANGE SCREW
Flanged

14

420956950

OIL SIEVE
Oil

15

420256606

VALVE SEAT SLEEVE
Valve

16

420256630

VALVE-PISTON
Piston

17

420939401

COMPRESSION SPRING
Compression

18

420939211

COMPRESSION SPRING
Compression

19

420230890

O RING
O-Ring

20

420641052

PLUG SCREW M20
Plug

21

420956744

FILTER OIL　ROTAX1603ACEHO
Oil

22

420612080

OIL FILTER COVER
Oil

23

420850500

RING-O
O-Ring

24

420230920

O-RING
O-Ring

25

420641103

SCREW-HEX.M8
Hex.

26

420950860

O-RING
O-Ring

27

420857229

SPACER
Spacer

28

420842610

HEX NUT M8
Hex.

29

420250055

O-RING
O-Ring

30

420888852

OIL RADIATOR
Oil

31

420641048

TORX FLANGE SCREW
Flanged

32

420256919

OIL PRESSURE SWITCH
Oil

33

278002895

SENSOR-LIQUID
Temperature

34-35

420956944

OIL LEVEL TUBE
Oil

35

420950810

O-RING
O-Ring

36

420956933

OIL LEVEL GAUGE
Oil

37

420660037

COVER
Cover

38

420627494

THRUST WASHER
Thrust

39-41

420856504

VENT VALVE ASSY
Vent

40

420630125

V-RING
V-Ring

41

420950870

O-RING
O-Ring

42

420665951

TOPS SWITCH
TOPS

43

420641238

SCREW-TORX FLANGE
Flanged
