見出番号 |
部品番号 |
部品名 |
数量 |

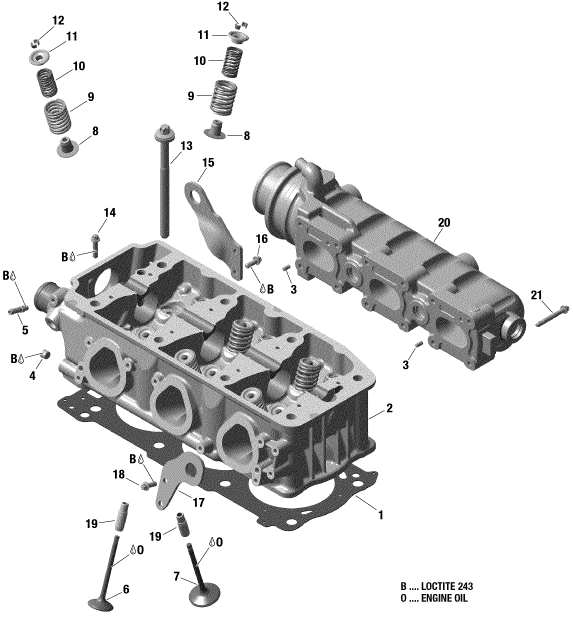

1 |
420950772 |
CYLINDER HEAD GASKET
Cylinder
|
|
2-5 |
420413258 |
CYLINDER HEAD ASS Y
Cylinder
|
|
3 |
420929650 |
PIN-DRIVE 5X10
Drive
|
|
4 |
420641323 |
SCREW
Plug
|
|
5 |
420924724 |
HOSE NIPPLE
Hose
|
|
6 |
420254682 |
EXHAUST VALVE
Exhaust
|
|
7 |
420254298 |
INTAKE VALVE 38 MM
Intake
|
|
8 |
420630202 |
VALVE STEM SEAL
Valve
|
|
9 |
420238180 |
VALVE SPRING
Valve
|
|
10 |
420838280 |
VALVE SPRING INSIDE
Valve
|
|
11 |
420254283 |
VALVE SPRING RETAINER
Valve
|
|
12 |
420253645 |
VALVE COTTER
Valve
|
|
13 |
420641115 |
TORX FLANGED SCREW M11 X 147
Torx
|
|
14 |
420641238 |
SCREW-TORX FLANGE
Flanged
|
|
15 |
420851618 |
TRANSPORT BRACKET PTO
Transport
|
|
16 |
420641048 |
TORX FLANGE SCREW
Flanged
|
|
17 |
420951382 |
TRANSPORT BRACKET FRONT
Transport
|
|
18 |
420641048 |
TORX FLANGE SCREW
Flanged
|
|
19 |
420254882 |
VALVE GUIDE
Valve
|
|
20 |
420673294 |
ENGINE EXHAUST MANIFOLD
Engine
|
|
21 |
420641198 |
TORX FLANGE SCREW
Flanged
|
|
