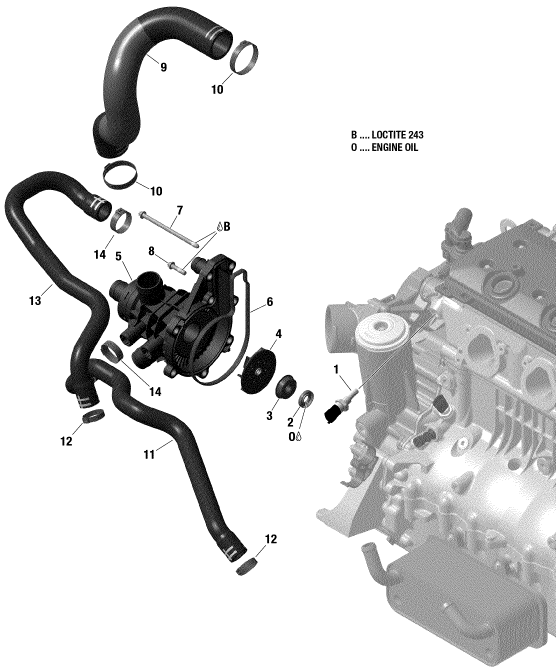

1

278002895

SENSOR-LIQUID
Temperature

2

420650315

SEAL-OIL
Oil

3

420650370

SEAL-OIL
Rotary

4

420922803

IMPELLER
Impeller

5-6

420922688

WATER PUMP HOUSING ASSY
Water

6

420950840

GASKET
Gasket

7

420641338

TORX FLANGE SCREW
Torx

8

420641238

SCREW-TORX FLANGE
Flanged

9

420822791

FORMED HOSE
Formed

10

420851683

GEAR CLAMP
Gear

11

420822762

FORMED HOSE
Formed

12

420853163

CLAMP
Clamp

13

420822767

FORMED HOSE
Formed

14

420851674

CLAMP 28.4 31.6
Clamp
