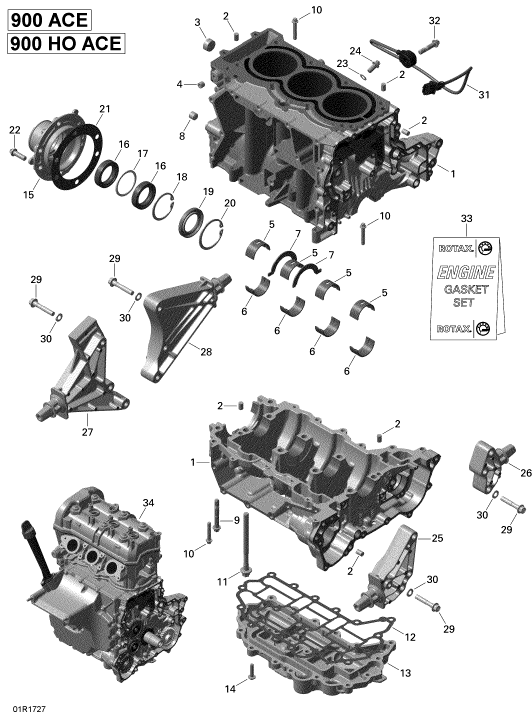

見出番号 |
部品番号 |
部品名 |
数量 |
1 |
420894026 |
ENGINE BLOCK ASS Y
Crankcase
|
|
2 |
420632010 |
PIN-CENTER
Center
|
|
3 |
420641317 |
PLUG SCREW
Plug
|
|
4 |
420641323 |
SCREW
Plug
|
|
5 |
420933180 |
CUSHION
Cushion
|
|
6 |
420933185 |
CUSHION
Cushion
|
|
7 |
420933140 |
RING HALF
Ring
|
|
8 |
420840508 |
PIN-THREADED
Threaded
|
|
9 |
420641213 |
TORX FLANGE SCREW
Flanged
|
|
10 |
420641258 |
SCREW TORX FLANGE M6 X 35
Flanged
|
|
11 |
420940945 |
TORX-REDUCED SHAFT SCREW M9X113
Flanged
|
|
12 |
420431820 |
GASKET
Gasket
|
|
13 |
420911502 |
OIL SUMP
Oil
|
|
14 |
420841548 |
FLANGED TORX SCREW M6 X 2
Flanged
|
|
15 |
420911681 |
PTO COVER
PTO
|
|
16 |
420450165 |
SEAL-OIL
Oil
|
|
17 |
420947500 |
RING DISTANCE
Ring
|
|
18 |
420945693 |
RETAINING RING
Retaining
|
|
19 |
420850220 |
O RING
Oil
|
|
20 |
420945820 |
RETAINING RING
Retaining
|
|
21 |
420450080 |
GASKET
Gasket
|
|
22 |
420641248 |
FLANGED TORX SCREW M8 X 2
Flanged
|
|
23 |
420950142 |
RING-SEALING
Sealing
|
|
24 |
420441653 |
FLANGED TORX SCREW M8 X 1
Flanged
|
|
25 |
420911770 |
ENGINE BRACKET FRONT INL
Front
|
|
26 |
420911775 |
ENGINE BRACKET FRONT EXH
Front
|
|
27 |
420911780 |
ENGINE BRACKET REAR INL
Rear
|
|
28 |
420911785 |
ENGINE BRACKET REAR EXH
Rear
|
|
29 |
420641208 |
HEX FLANGED SCREW M8 X 45
Hex.
|
|
30 |
N/A |
Not
|
|
31 |
420664031 |
KNOCK SENSOR
Noise
|
|
32 |
420641188 |
TORX FLANGE SCREW
Flanged
|
|
33 |
420686230 |
ENGINE GASKET SET
Engine
|
|
34 |
420090332 |
LONG BLOCK 903
Long
|
|
