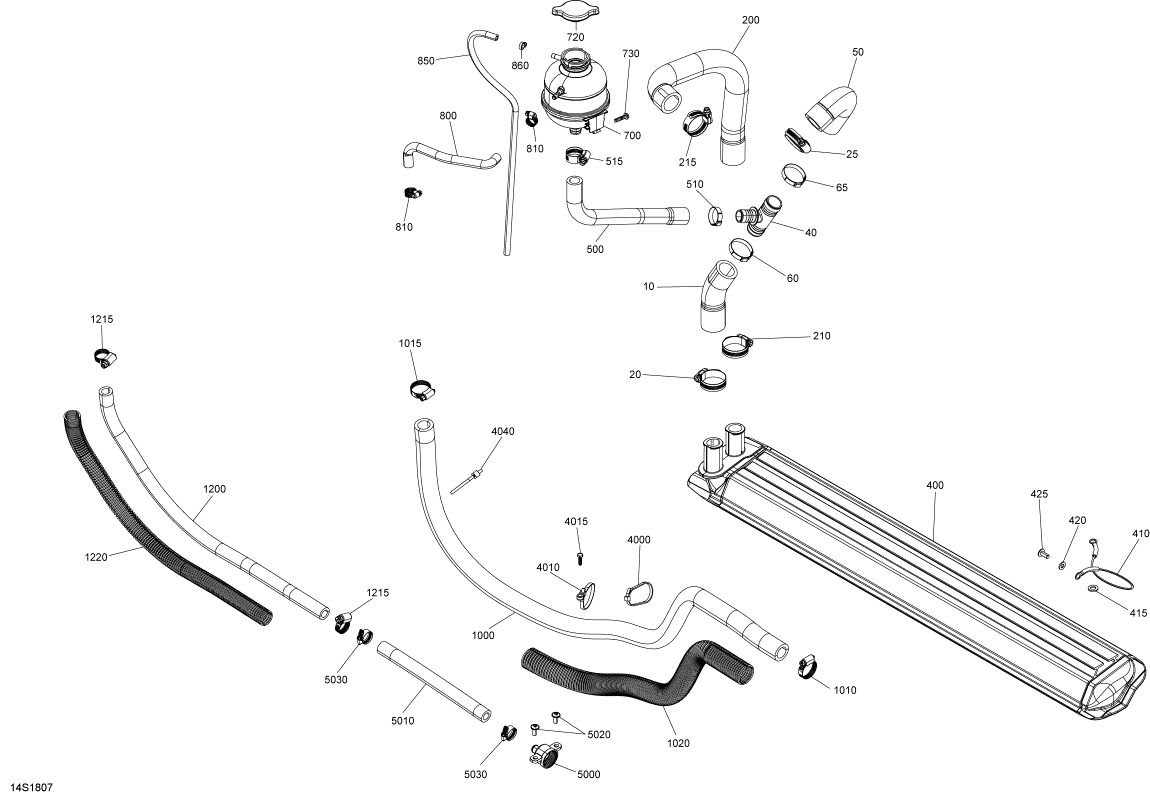

見出番号 |
部品番号 |
部品名 |
数量 |
10 |
276000292 |
HOSE
Radiator
|
|
20 |
293650245 |
NORMA CLAMP
Norma
|
|
25 |
293650245 |
NORMA CLAMP
Norma
|
|
40 |
509000372 |
T-FITTING
T-Fitting
|
|
50 |
276000301 |
COOLING HOSE
Hose
|
|
60 |
509000529 |
CLAMP-GEAR
Oetiker
|
|
65 |
509000529 |
CLAMP-GEAR
Oetiker
|
|
200 |
276000291 |
RAD HOSE
Radiator
|
|
210 |
293650245 |
NORMA CLAMP
Norma
|
|
215 |
293650245 |
NORMA CLAMP
Norma
|
|
400 |
276000389 |
HEAT EXCHANGER
Heat
|
|
410 |
278003272 |
GROUND WIRE
Ground
|
|
415 |
234080600 |
WASHER-FLAT DIN.433A2
Flat
|
|
420 |
234061600 |
WASHER-FLAT DIN125A-A2
Flat
|
|
425 |
250000384 |
SCREW-TORX BUTTON HEAD M6X14
Torx
|
|
500 |
276000290 |
HOSE
Hose
|
|
510 |
293650099 |
CRIMP CLAMP
Crimp
|
|
515 |
293650016 |
CLAMP-TRIDON
Tridon
|
|
700 |
509000802 |
TANK-COOLANT
Coolant
|
|
720 |
509000180 |
PRESSURE CAP
Pressure
|
|
730 |
241152060 |
HEX WASHER HEAD PT SCREW
Hex.
|
|
800 |
276000316 |
FORMED HOSE
Formed
|
|
810 |
293650170 |
HOSE CLAMP
Tridon
|
|
815 |
293650170 |
HOSE CLAMP
Tridon
|
|
850 |
293830193 |
POLYURETHANE HOSE
Polyurethane
|
|
860 |
293750001 |
TIE-RAP 94MM
Tie-Rap
|
|
1000 |
276000158 |
HOSE-19MM (PC=1M)
Hose
|
|
1010 |
293650051 |
CLAMP-TRIDON
Tridon
|
|
1015 |
293650051 |
CLAMP-TRIDON
Tridon
|
|
1020 |
409902200 |
TUBING-25MM
Tubing
|
|
1200 |
276000151 |
HOSE-12 5MM (PC=1M)
Hose
|
|
1210 |
293650172 |
HOSE CLAMP
Tridon
|
|
1215 |
293650172 |
HOSE CLAMP
Tridon
|
|
1220 |
409901600 |
TUBING
Tubing
|
|
4000 |
293750008 |
TIE-RAP 350MM
Tie-Rap
|
|
4010 |
293750049 |
TIE-RAP 305MM
Tie
|
|
4015 |
211000023 |
SCREW-PLASTITE HEX.WR.HD.UNSL
Hex.
|
|
4030 |
293750008 |
TIE-RAP 350MM
Tie-Rap
|
|
4040 |
414115200 |
TIE-RAP 180MM
Tie-Rap
|
|
5000 |
269800521 |
DRAIN PLUG NECK
Drain
|
|
5010 |
296000303 |
HOSE 12.5MM 3M/PAC
Hose
|
|
5020 |
250000384 |
SCREW-TORX BUTTON HEAD M6X14
Torx
|
|
5030 |
293650172 |
HOSE CLAMP
Tridon
|
|
