見出番号 |
部品番号 |
部品名 |
数量 |

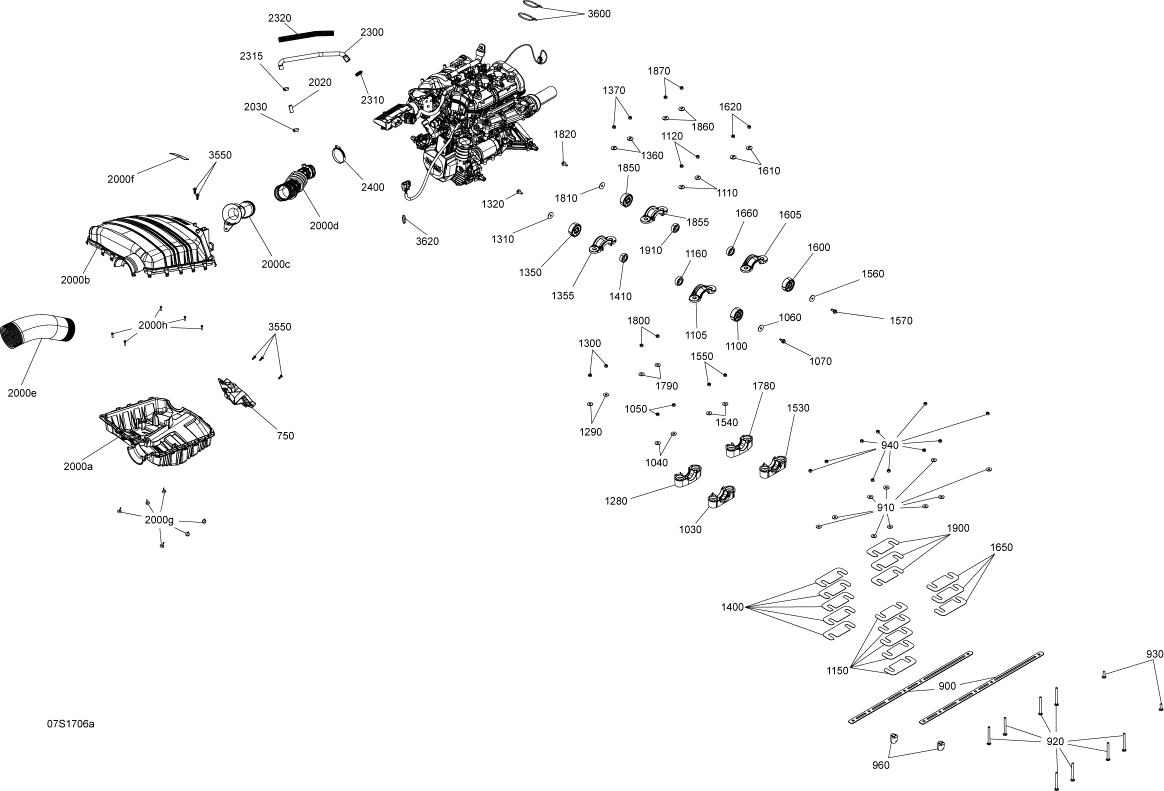

750 |
270001023 |
SUPPORT
Support-
|
|
900 |
270000862 |
RETAINING PLATE
Retaining-Plate-
|
|
910 |
234082600 |
WASHER-FLAT DIN.9021B-A2
Flat-Washer-8-mm,-Stainless-
|
|
920 |
207789060 |
BOLT-CARRIAGE DIN
Carriage-Bolt-M8-X-90-
|
|
930 |
207783060 |
BOLT-CARRIAGE DIN
Carriage-Bolt-M8-X-30-
|
|
940 |
270001008 |
PUSH NUT
Push-Nut-
|
|
960 |
270001025 |
SPACER
Spacer-
|
|
1030 |
270000978 |
MOUNT BASE
Mount-Base-
|
|
1040 |
234082600 |
WASHER-FLAT DIN.9021B-A2
Flat-Washer-8-mm,-Stainless-
|
|
1050 |
232581200 |
NUT-STOP ELASTIC DIN.985
Hex.-Elastic-Nut-M8,-Brass-
|
|
1060 |
250200130 |
WASHER-FLAT M8
Flat-Washer-8-mm-
|
|
1070 |
250000645 |
SCREW-FORMING HEX HD
Forming-Hex-Screw-M8-X-20-
|
|
1100 |
270000852 |
MOUNT-RUBBER
Rubber-Mount-
|
|
1105 |
270000859 |
MOUNT CLAMP
Mount-Clamp-
|
|
1110 |
250200137 |
WASHER-CONE
Conical-Washer-
|
|
1120 |
232581200 |
NUT-STOP ELASTIC DIN.985
Hex.-Elastic-Nut-M8,-Brass-
|
|
1150 |
270000865 |
SHIM 1-3MM
Shim-1.3-mm-
|
|
1160 |
270000863 |
RUBBER STOPPER
Rubber-Stopper-
|
|
1280 |
270000978 |
MOUNT BASE
Mount-Base-
|
|
1290 |
234082600 |
WASHER-FLAT DIN.9021B-A2
Flat-Washer-8-mm,-Stainless-
|
|
1300 |
232581200 |
NUT-STOP ELASTIC DIN.985
Hex.-Elastic-Nut-M8,-Brass-
|
|
1310 |
250200130 |
WASHER-FLAT M8
Flat-Washer-8-mm-
|
|
1320 |
250000645 |
SCREW-FORMING HEX HD
Forming-Hex-Screw-M8-X-20-
|
|
1350 |
270000852 |
MOUNT-RUBBER
Rubber-Mount-
|
|
1355 |
270000859 |
MOUNT CLAMP
Mount-Clamp-
|
|
1360 |
250200137 |
WASHER-CONE
Conical-Washer-
|
|
1370 |
232581200 |
NUT-STOP ELASTIC DIN.985
Hex.-Elastic-Nut-M8,-Brass-
|
|
1400 |
270000865 |
SHIM 1-3MM
Shim-1.3-mm-
|
|
1410 |
270000863 |
RUBBER STOPPER
Rubber-Stopper-
|
|
1530 |
270000978 |
MOUNT BASE
Mount-Base-
|
|
1540 |
234082600 |
WASHER-FLAT DIN.9021B-A2
Flat-Washer-8-mm,-Stainless-
|
|
1550 |
232581200 |
NUT-STOP ELASTIC DIN.985
Hex.-Elastic-Nut-M8,-Brass-
|
|
1560 |
250200130 |
WASHER-FLAT M8
Flat-Washer-8-mm-
|
|
1570 |
250000645 |
SCREW-FORMING HEX HD
Forming-Hex-Screw-M8-X-20-
|
|
1600 |
270000852 |
MOUNT-RUBBER
Rubber-Mount-
|
|
1605 |
270000859 |
MOUNT CLAMP
Mount-Clamp-
|
|
1610 |
250200137 |
WASHER-CONE
Conical-Washer-
|
|
1620 |
232581200 |
NUT-STOP ELASTIC DIN.985
Hex.-Elastic-Nut-M8,-Brass-
|
|
1650 |
270000865 |
SHIM 1-3MM
Shim-1.3-mm-
|
|
1660 |
270000863 |
RUBBER STOPPER
Rubber-Stopper-
|
|
1780 |
270000978 |
MOUNT BASE
Mount-Base-
|
|
1790 |
234082600 |
WASHER-FLAT DIN.9021B-A2
Flat-Washer-8-mm,-Stainless-
|
|
1800 |
232581200 |
NUT-STOP ELASTIC DIN.985
Hex.-Elastic-Nut-M8,-Brass-
|
|
1810 |
250200130 |
WASHER-FLAT M8
Flat-Washer-8-mm-
|
|
1820 |
250000645 |
SCREW-FORMING HEX HD
Forming-Hex-Screw-M8-X-20-
|
|
1850 |
270000852 |
MOUNT-RUBBER
Rubber-Mount-
|
|
1855 |
270000859 |
MOUNT CLAMP
Mount-Clamp-
|
|
1860 |
250200137 |
WASHER-CONE
Conical-Washer-
|
|
1870 |
232581200 |
NUT-STOP ELASTIC DIN.985
Hex.-Elastic-Nut-M8,-Brass-
|
|
1900 |
270000865 |
SHIM 1-3MM
Shim-1.3-mm-
|
|
1910 |
270000863 |
RUBBER STOPPER
Rubber-Stopper-
|
|
2000a- |
273000354 |
AIRBOX BASE
Airbox-Base-
|
|
2000b- |
273000371 |
AIRBOX COVER
Airbox-Cover-
|
|
2000c- |
273000358 |
INTAKE TUBE
Intake-Hose-
|
|
2000d- |
273000364 |
HOSE
Hose-
|
|
2000e- |
273000290 |
TUBE
Air-Silencer-Hose-
|
|
2000f- |
219903177 |
NOTICE LABEL
Notice-Decal,-Air-Silencer-
|
|
2000g- |
708000759 |
STOPPER-RUBBER
Rubber-Stopper-
|
|
2000h- |
250000287 |
SCREW-PT.FLANGE PAN HDTORX.K40 X 16
Flanged-Torx-Screw-K40-X-16-
|
|
2020 |
270001007 |
FITTING
Fitting-
|
|
2030 |
293650011 |
CLAMP-OETIKER
Oetiker-Clamp-
|
|
2300 |
270000947 |
HOSE-FORMED
Formed-Hose-
|
|
2310 |
293650172 |
HOSE CLAMP
Tridon-Gear-Clamp-
|
|
2315 |
293650011 |
CLAMP-OETIKER
Oetiker-Clamp-
|
|
2320 |
415080000 |
TUBING-16MM I.D.1M/PAC
Tubing-16-mm-
|
|
2400 |
293650079 |
CLAMP-NORMA
Norma-Clamp-
|
|
3550 |
420641588 |
TORX FLANGE SCREW
Flanged-Torx-Screw-M6-X-16-
|
|
3600 |
293750008 |
TIE-RAP 350MM
Tie-Rap-350-mm-
|
|
3610 |
293750002 |
TIE-RAP 130MM
Tie-Rap-142-mm-
|
|
3620 |
414115200 |
TIE-RAP 180MM
Tie-Rap-180-mm-
|
|
