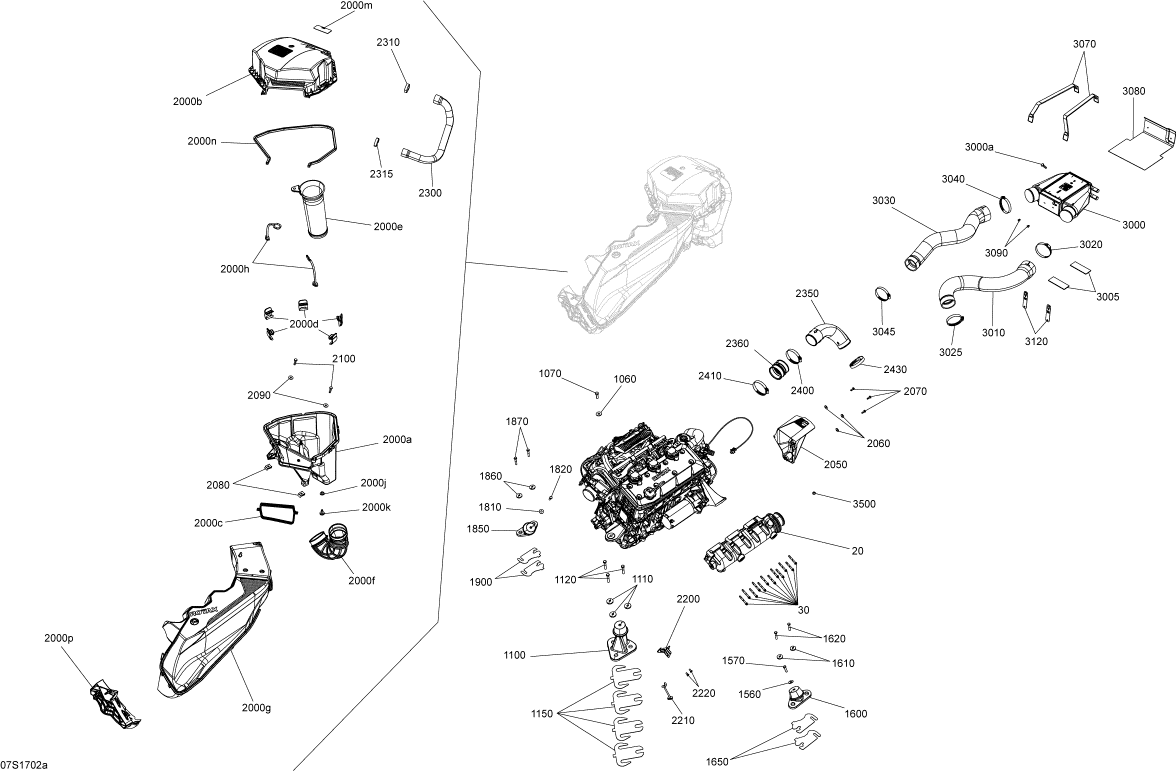

20

274001553

ENGINE EXHAUST MANIFOLD
Engine-Exhaust-Manifold-

30

420641198

TORX FLANGE SCREW
Flanged-Torx-Screw-M6-X-45-

1060

234082600

WASHER-FLAT DIN.9021B-A2
Flat-Washer-8-mm,-Stainless-

1070

207382560

SCREW-HEX.CAP DIN.933A2 S.GRIP
Hex.-Screw-M8-X-25,-Scotch-Grip-

1100

270000886

RUBBER MOUNT
Rubber-Mount-

1110

250200018

WASHER-CONE
Cone-Washer-

1120

250000782

SCREW-HEX CAP
Hexagonal-Head-Cap-Screw-M8-X-45-

1150

270000770

SHIM 1-3MM
Shim-1.3-mm-

1560

234082600

WASHER-FLAT DIN.9021B-A2
Flat-Washer-8-mm,-Stainless-

1570

207382560

SCREW-HEX.CAP DIN.933A2 S.GRIP
Hex.-Screw-M8-X-25,-Scotch-Grip-

1600

270000882

RUBBER MOUNT
Rubber-Mount-

1610

250200018

WASHER-CONE
Cone-Washer-

1620

250000782

SCREW-HEX CAP
Hexagonal-Head-Cap-Screw-M8-X-45-

1650

270000762

SHIM 1-3MM
Shim-1.3-mm-

1810

234082600

WASHER-FLAT DIN.9021B-A2
Flat-Washer-8-mm,-Stainless-

1820

207382560

SCREW-HEX.CAP DIN.933A2 S.GRIP
Hex.-Screw-M8-X-25,-Scotch-Grip-

1850

270000882

RUBBER MOUNT
Rubber-Mount-

1860

250200018

WASHER-CONE
Cone-Washer-

1870

250000782

SCREW-HEX CAP
Hexagonal-Head-Cap-Screw-M8-X-45-

1900

270000762

SHIM 1-3MM
Shim-1.3-mm-

2000a-

273000250

SILENC-AIR LOW
Air-Silencer-Low-

2000b-

273000249

SILENC-AIR UPP
Air-Silencer-Upper-

2000c-

293250190

OIL SEAL
Seal-

2000d-

269501718

CLIP
Clip-

2000e-

273000359

INTAKE TUBE
Intake-Hose-

2000f-

273000257

CONNECT. HOSE
Connector-Hose.-Engine-1503-NA-4-TEC-

2000f-

273000348

HOSE
Hose.-Engine-1503-HO-4-TEC-

2000g-

273000253

INTAKE TUBE
Intake-Tube-

2000h-

269501299

STRAP
Strap-

2000j-

293720064

GROMMET
Grommet-

2000k-

275500454

VALVE-CHECK
Check-Valve-

2000m-

219903177

NOTICE LABEL
Notice-Decal,-Air-Silencer-

2000n-

293200123

NEOPRENE SEAL
Neoprene-Seal-

2000p-

273000271

DEFLECTOR
Deflector-

2050

270000735

AIRBOX SUPPORT
Air-Box-Support.-Engine-1503-HO-4-TEC-

2050

270000791

AIRBOX SUPPORT
Air-Box-Support.-Engine-1503-NA-4-TEC-

2060

234062600

WASHER-FLAT DIN.9021B-A2
Flat-Washer-M6,-Stainless-

2070

207361660

SCREW-HEX.CAP DIN.933A2 S.GRIP
Hex.-Screw-M6-X-16,-Scotch-Grip-

2080

420942108

PANEL NUT
Panel-Nut-M6-X-1-

2090

234062600

WASHER-FLAT DIN.9021B-A2
Flat-Washer-M6,-Stainless-

2100

207362560

SCREW-HEX.CAP DIN.933A2 S.GRIP
Hex.-Screw-M6-X-25,-Scotch-Grip-

2200

273000260

AIRBOX BRACKET
Air-Box-Bracket-

2210

273000344

STRAP
Strap-

2220

207361260

SCREW-HEX.CAP DIN.933A2 S.GRIP
Hex.-Screw-M6-X-12,-Scotch-Grip-

2300

270000948

FORMED HOSE
Formed-Hose-

2310

293650051

CLAMP-TRIDON
Tridon-Gear-Clamp-

2315

293650051

CLAMP-TRIDON
Tridon-Gear-Clamp-

2350

273000327

HOSE INTAKE
Hose-Intake.-Engine-1503-NA-4-TEC-

2360

273000277

INTAKE FITTING
Intake-Fitting.-Engine-1503-NA-4-TEC-

2400

293650179

CLAMP-TRIDON
Tridon-Clamp.-Engine-1503-NA-4-TEC-

2410

293650179

CLAMP-TRIDON
Tridon-Clamp.-Engine-1503-NA-4-TEC-

2430

293650179

CLAMP-TRIDON
Tridon-Clamp-

3000-3000a-

276000397

INTERCOOLER
Intercooler.-Engine-1503-HO-4-TEC.-Includes-3000-to-3000a-

3000a-

271001942

ANODE ZINC
Anode-Zinc.-Engine-1503-HO-4-TEC-

3005

293830180

PAD-RUBBER
Pad-Rubber.-Engine-1503-HO-4-TEC-

3010

273000361

FORMED HOSE
Formed-Hose.-Engine-1503-HO-4-TEC-

3020

293650244

TRIDON GEAR CLAMP
Tridon-Gear-Clamp.-Engine-1503-HO-4-TEC-

3025

293650179

CLAMP-TRIDON
Tridon-Clamp.-Engine-1503-HO-4-TEC-

3030

273000362

FORMED HOSE
Formed-Hose.-Engine-1503-HO-4-TEC-

3040

293650244

TRIDON GEAR CLAMP
Tridon-Gear-Clamp.-Engine-1503-HO-4-TEC-

3045

293650179

CLAMP-TRIDON
Tridon-Clamp.-Engine-1503-HO-4-TEC-

3070

293850093

STRAP-FUEL TANK
Strap.-Engine-1503-HO-4-TEC-

3080

293830146

PAD-RUBBER
Rubber-Pad.-Engine-1503-HO-4-TEC-

3090

293730016

DART-BLACK
Dart,-Black.-Engine-1503-HO-4-TEC-

3120

270000946

STRAP ANCHOR
Holding-Strap-

3500

293750002

TIE-RAP 130MM
Tie-Rap-142-mm-
