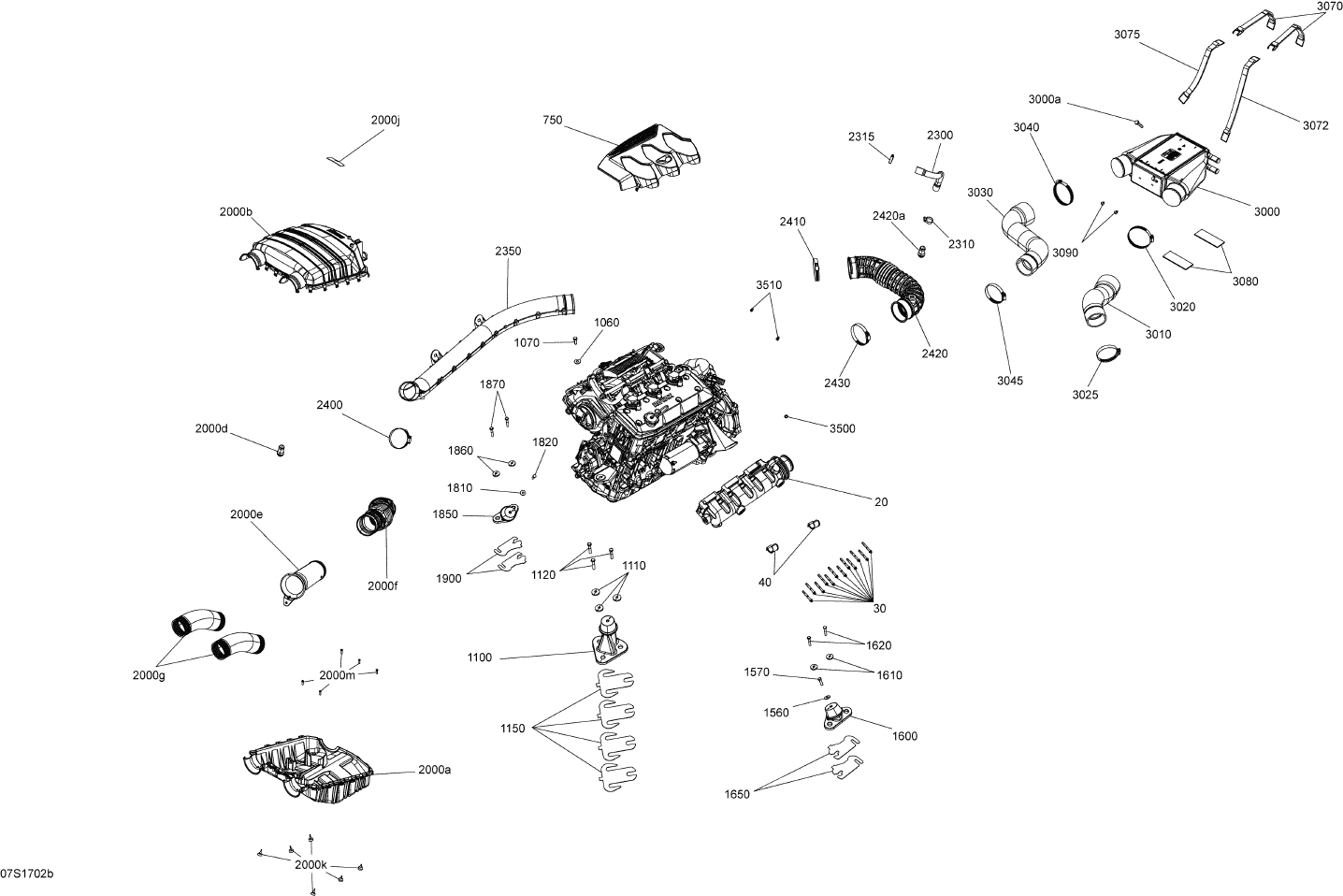

見出番号 |
部品番号 |
部品名 |
数量 |
20 |
274001553 |
ENGINE EXHAUST MANIFOLD
Engine-Exhaust-Manifold-
|
|
30 |
420641198 |
TORX FLANGE SCREW
Flanged-Torx-Screw-M6-X-45-
|
|
40 |
275500664 |
RETAINER
Retainer.-Engine-1503-NA-4-TEC-
|
|
750 |
270001002 |
COVER ASS Y
Cover-Ass'y.-Engine-1630-ACE-HO-
|
|
1060 |
234082600 |
WASHER-FLAT DIN.9021B-A2
Flat-Washer-8-mm,-Stainless-
|
|
1070 |
207382560 |
SCREW-HEX.CAP DIN.933A2 S.GRIP
Hex.-Screw-M8-X-25,-Scotch-Grip-
|
|
1100 |
270000886 |
RUBBER MOUNT
Rubber-Mount-
|
|
1110 |
250200018 |
WASHER-CONE
Cone-Washer-
|
|
1120 |
250000782 |
SCREW-HEX CAP
Hexagonal-Head-Cap-Screw-M8-X-45-
|
|
1150 |
270000770 |
SHIM 1-3MM
Shim-1.3-mm-
|
|
1560 |
234082600 |
WASHER-FLAT DIN.9021B-A2
Flat-Washer-8-mm,-Stainless-
|
|
1570 |
207382560 |
SCREW-HEX.CAP DIN.933A2 S.GRIP
Hex.-Screw-M8-X-25,-Scotch-Grip-
|
|
1600 |
270000882 |
RUBBER MOUNT
Rubber-Mount-
|
|
1610 |
250200018 |
WASHER-CONE
Cone-Washer-
|
|
1620 |
250000782 |
SCREW-HEX CAP
Hexagonal-Head-Cap-Screw-M8-X-45-
|
|
1650 |
270000762 |
SHIM 1-3MM
Shim-1.3-mm-
|
|
1810 |
234082600 |
WASHER-FLAT DIN.9021B-A2
Flat-Washer-8-mm,-Stainless-
|
|
1820 |
207382560 |
SCREW-HEX.CAP DIN.933A2 S.GRIP
Hex.-Screw-M8-X-25,-Scotch-Grip-
|
|
1850 |
270000882 |
RUBBER MOUNT
Rubber-Mount-
|
|
1860 |
250200018 |
WASHER-CONE
Cone-Washer-
|
|
1870 |
250000782 |
SCREW-HEX CAP
Hexagonal-Head-Cap-Screw-M8-X-45-
|
|
1900 |
270000762 |
SHIM 1-3MM
Shim-1.3-mm-
|
|
2000a |
273000342 |
AIRBOX BASE
Airbox-Base.-Engine-1500-HO-ACE,-1630-ACE-HO-
|
|
2000a |
273000354 |
AIRBOX BASE
Airbox-Base.-Engine-1503-NA-4-TEC-
|
|
2000b |
273000373 |
AIRBOX COVER
Airbox-Cover.-Engine-1500-HO-ACE,-1630-ACE-HO-
|
|
2000b |
273000371 |
AIRBOX COVER
Airbox-Cover.-Engine-1503-NA-4-TEC-
|
|
2000d |
273000234 |
BREATHER
Breather.-Engine-1503-NA-4-TEC-
|
|
2000e |
273000359 |
INTAKE TUBE
Intake-Hose.-Engine-1500-HO-ACE,-1630-ACE-HO-
|
|
2000e |
273000358 |
INTAKE TUBE
Intake-Hose.-Engine-1503-NA-4-TEC-
|
|
2000f |
273000322 |
CONNECT HOSE
Hose-Connector.-Engine-1500-HO-ACE,-1630-ACE-HO-
|
|
2000f |
273000295 |
CONNECT HOSE
Hose-Connector.-Engine-1503-NA-4-TEC-
|
|
2000g |
273000290 |
TUBE
Air-Silencer-Hose-
|
|
2000j |
219903177 |
NOTICE LABEL
Notice-Decal,-Air-Silencer-
|
|
2000k |
708000759 |
STOPPER-RUBBER
Rubber-Stopper-
|
|
2000m |
250000287 |
SCREW-PT.FLANGE PAN HDTORX.K40 X 16
Flanged-Torx-Screw-K40-X-16-
|
|
2300 |
270000949 |
FORMED HOSE
Formed-Hose.-Engine-1503-NA-4-TEC-
|
|
2300 |
270000950 |
FORMED HOSE
Formed-Hose.-Engine-1500-HO-ACE,-1630-ACE-HO-
|
|
2310 |
293650051 |
CLAMP-TRIDON
Tridon-Gear-Clamp-
|
|
2315 |
293650051 |
CLAMP-TRIDON
Tridon-Gear-Clamp-
|
|
2350 |
273000233 |
INTAKE HOSE
Hose-Intake.-Engine-1500-HO-ACE,-1630-ACE-HO-
|
|
2400 |
293650179 |
CLAMP-TRIDON
Tridon-Clamp-
|
|
2410 |
293650179 |
CLAMP-TRIDON
Tridon-Clamp-
|
|
2420-2420a |
273000328 |
INTAKE HOSE
Hose-Intake,-Rear.-Engine-1500-HO-ACE,-1630-ACE-HO.-Includes-2420-to-2420a-
|
|
2420a |
273000234 |
BREATHER
Breather.-Engine-1500-HO-ACE,-1630-ACE-HO-
|
|
2430 |
293650179 |
CLAMP-TRIDON
Tridon-Clamp.-Engine-1500-HO-ACE,-1630-ACE-HO-
|
|
3000-3000a |
276000335 |
INTERCOOLER
Intercooler.-Engine-1630-ACE-HO.-Includes-3000-to-3000a-
|
|
3000-3000a |
276000397 |
INTERCOOLER
Intercooler.-Engine-1500-HO-ACE.-Includes-3000-to-3000a-
|
|
3000a |
271001942 |
ANODE ZINC
Anode-Zinc-
|
|
3010 |
273000338 |
INLET HOSE
Inlet-Hose.-Engine-1630-ACE-HO-
|
|
3010 |
273000367 |
INLET HOSE
Inlet-Hose.-Engine-1500-HO-ACE-
|
|
3020 |
293650244 |
TRIDON GEAR CLAMP
Tridon-Gear-Clamp.-Engine-1500-HO-ACE,-1630-ACE-HO-
|
|
3025 |
293650179 |
CLAMP-TRIDON
Tridon-Clamp.-Engine-1500-HO-ACE,-1630-ACE-HO-
|
|
3030 |
273000339 |
OUTLET HOSE
Outlet-Hose.-Engine-1630-ACE-HO-
|
|
3030 |
273000368 |
OUTLET HOSE
Outlet-Hose.-Engine-1500-HO-ACE-
|
|
3040 |
293650244 |
TRIDON GEAR CLAMP
Tridon-Gear-Clamp.-Engine-1500-HO-ACE,-1630-ACE-HO-
|
|
3045 |
293650179 |
CLAMP-TRIDON
Tridon-Clamp.-Engine-1500-HO-ACE,-1630-ACE-HO-
|
|
3070 |
293850094 |
STRAP-TANK FUE
Fuel-Tank-Strap.-Engine-1500-HO-ACE,-1630-ACE-HO-
|
|
3072 |
293850093 |
STRAP-FUEL TANK
Strap.-Engine-1630-ACE-HO-
|
|
3072 |
293850123 |
STRAP-FUEL TANK
Fuel-Tank-Strap.-Engine-1500-HO-ACE-
|
|
3075 |
293850095 |
STRAP-FUEL TANK
Fuel-Tank-Strap.-Engine-1630-ACE-HO-
|
|
3075 |
293850123 |
STRAP-FUEL TANK
Fuel-Tank-Strap.-Engine-1500-HO-ACE-
|
|
3080 |
293830178 |
PAD-RUBBER
Pad-Rubber.-Engine-1500-HO-ACE,-1630-ACE-HO-
|
|
3090 |
293730016 |
DART-BLACK
Dart,-Black.-Engine-1500-HO-ACE,-1630-ACE-HO-
|
|
3500 |
293750002 |
TIE-RAP 130MM
Tie-Rap-142-mm-
|
|
3510 |
293750002 |
TIE-RAP 130MM
Tie-Rap-142-mm.-Engine-1630-ACE-HO-
|
|
