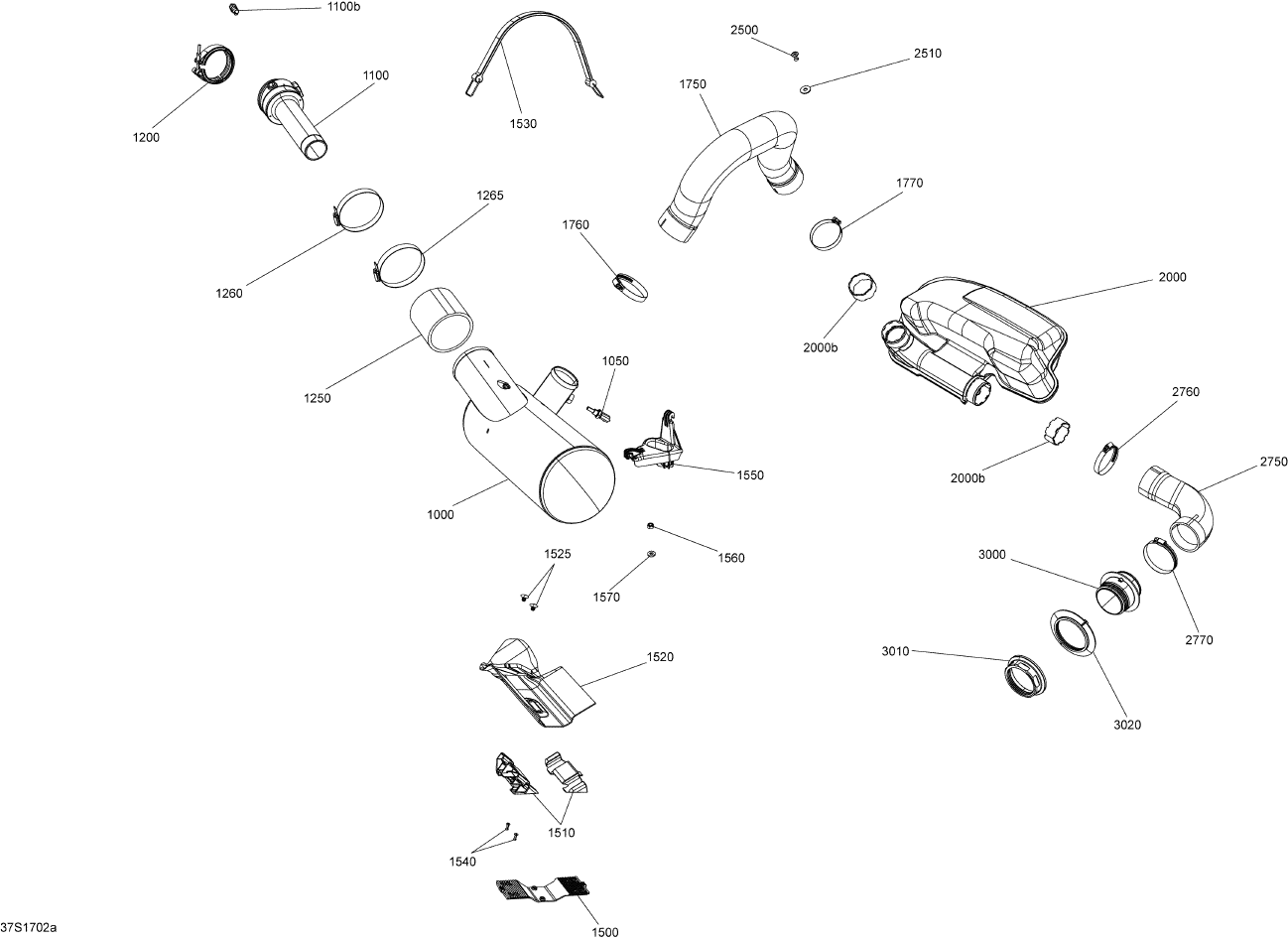

見出番号 |
部品番号 |
部品名 |
数量 |
1000 |
274001648 |
MUFFLER
Muffler-
|
|
1050 |
278002895 |
SENSOR-LIQUID
Temperature-Sensor-
|
|
1100-1100b |
274001354 |
PIPE-HEAD
Head-Pipe-Ass'y.-Includes-1100-to-1100b-
|
|
1100b |
293700023 |
FITTING-ELBOW
Elbow-Fitting-90°-
|
|
1200 |
274001417 |
EXHAUST CLAMP
Exhaust-Clamp-
|
|
1250 |
274001610 |
HOSE
Hose-
|
|
1260 |
293650202 |
CLAMP GEAR
Gear-Clamp-
|
|
1265 |
293650202 |
CLAMP GEAR
Gear-Clamp-
|
|
1500 |
274001479 |
EXHAUST SUPP
Exhaust-Muffler-Support-
|
|
1510 |
274001358 |
STOPPER
Stopper-
|
|
1520 |
293830181 |
RUBBER PAD
Rubber-Pad-
|
|
1525 |
414939500 |
DART-WINDSHIEL 1=1 PAC
Dart-
|
|
1530 |
293850093 |
STRAP-FUEL TANK
Strap-
|
|
1540 |
293150043 |
RIVET-POP 3/16
Pop-Rivet-3/16"-
|
|
1550 |
274001609 |
SUPPORT
Support-
|
|
1560 |
232581200 |
NUT-STOP ELASTIC DIN.985
Hex.-Elastic-Nut-M8,-Brass-
|
|
1570 |
293050001 |
WASHER-8MM
Flat-Washer-
|
|
1750 |
274001458 |
HOSE-EXHAUST
Front-Formed-Exhaust-Hose-
|
|
1760 |
293650179 |
CLAMP-TRIDON
Tridon-Clamp-
|
|
1770 |
293650179 |
CLAMP-TRIDON
Tridon-Clamp-
|
|
2000-2000b |
274001366 |
RH RESONATOR
Resonator.-Includes-2000-to-2000b-
|
|
2000b |
293200003 |
SEAL-TRAY
Neoprene-Seal,-Meter-
|
|
2500 |
293150123 |
RIVET-POP 3/16
Pop-Rivet-3/16"-
|
|
2510 |
234082600 |
WASHER-FLAT DIN.9021B-A2
Flat-Washer-8-mm,-Stainless-
|
|
2750 |
274001608 |
HOSE-EXHAUST
Hose-Exhaust-
|
|
2760 |
293650179 |
CLAMP-TRIDON
Tridon-Clamp-
|
|
2770 |
293650244 |
TRIDON GEAR CLAMP
Tridon-Gear-Clamp-
|
|
3000 |
274001540 |
EXHAUST OULTET
Outlet-Exhaust-
|
|
3010 |
274001541 |
NUT-77MM
Nut-77mm-
|
|
3020 |
274001587 |
WASHER
Washer-
|
|
