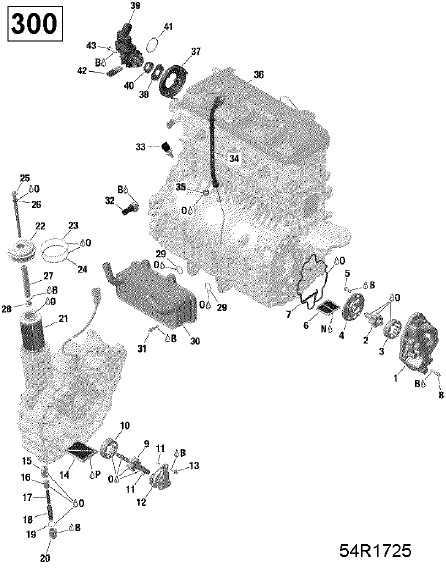

1

420812725

OIL PUMP HOUSING
Oil-Pump-Housing-

2

420837543

PUMP SHAFT ASSY
Oil-Pump-Shaft-

3

420956675

OUTER ROTOR 16MM
Oil-Pump-Rotor-16-mm-

4

420811850

OIL PUMP COVER
Oil-Pump-Cover-

5

420641048

TORX FLANGE SCREW
Flanged-Torx-Screw-M6-X-16-

6

420856520

OIL SIEVE
Oil-Sieve-

7

420631486

GASKET
Gasket-

8

420641238

SCREW-TORX FLANGE
Flanged-Torx-Screw-M6-X-25-

9

420837472

PUMP SHAFT ASSY
Pump-Shaft-Ass'y-

10

420956675

OUTER ROTOR 16MM
Oil-Pump-Rotor-16-mm-

11

420929070

NEEDLE PIN
Needle-Pin-

12

420811590

OIL PUMP COVER
Oil-Pump-Cover-

13

420641048

TORX FLANGE SCREW
Flanged-Torx-Screw-M6-X-16-

14

420956950

OIL SIEVE
Oil-Sieve-

15

420256606

VALVE SEAT SLEEVE
Valve-Seat-Sleeve-

16

420256630

VALVE-PISTON
Piston-Valve-

17

420939401

COMPRESSION SPRING
Compression-Spring-

18

420939211

COMPRESSION SPRING
Compression-Spring-

19

420230890

O RING
O-Ring-

20

420641052

PLUG SCREW M20
Plug-Screw-M20-X-1.5-

21

420956744

FILTER OIL　ROTAX1603ACEHO
Oil-Filter-

22

420612080

OIL FILTER COVER
Oil-Filter-Cover-

23

420850500

RING-O
O-Ring-

24

420230920

O-RING
O-Ring-

25

420641103

SCREW-HEX.M8
Hex.-Screw-M8-X-140.5-

26

420950860

O-RING
O-Ring-

27

420857229

SPACER
Spacer-

28

420842610

HEX NUT M8
Hex.-Nut-M8-

29

420250055

O-RING
O-Ring-

30

420888854

OIL RADIATOR
Oil-Radiator-

31

420641238

SCREW-TORX FLANGE
Flanged-Torx-Screw-M6-X-25-

32

420256919

OIL PRESSURE SWITCH
Oil-Pressure-Switch-

33

278002895

SENSOR-LIQUID
Temperature-Sensor-

34

420956944

OIL LEVEL TUBE
Oil-Level-Tube-

35

420950810

O-RING
O-Ring-

36

420956932

OIL LEVEL GAUGE
Oil-Level-Gauge-

37

420660037

COVER
Cover-

38

420627494

THRUST WASHER
Thrust-Washer-

39-42

420856504

VENT VALVE ASSY
Vent-Valve-Ass'y-

40

420630125

V-RING
V-Ring-

41

420950870

O-RING
O-Ring-

42

420665951

TOPS SWITCH
TOPS-Switch-

43

420641238

SCREW-TORX FLANGE
Flanged-Torx-Screw-M6-X-25-
