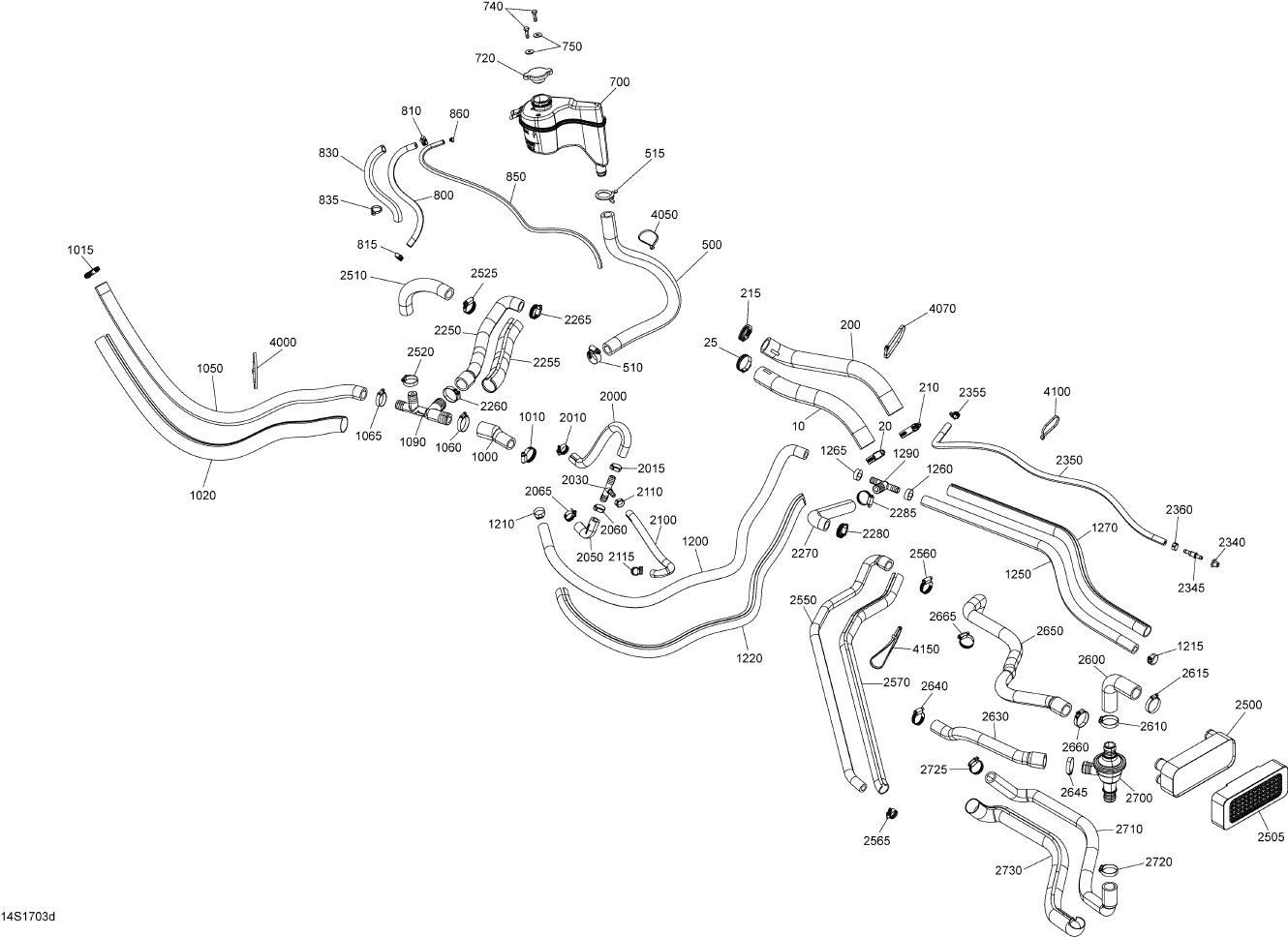

見出番号 |
部品番号 |
部品名 |
数量 |
10 |
276000241 |
HOSE
Radiator-Hose-
|
|
20 |
293650245 |
NORMA CLAMP
Norma-Clamp-
|
|
25 |
293650245 |
NORMA CLAMP
Norma-Clamp-
|
|
200 |
276000240 |
HOSE
Radiator-Hose-
|
|
210 |
293650245 |
NORMA CLAMP
Norma-Clamp-
|
|
215 |
293650245 |
NORMA CLAMP
Norma-Clamp-
|
|
500 |
276000099 |
HOSE-19MM
Hose-19-mm-
|
|
510 |
293650019 |
CLAMP-TRIDON
Tridon-Gear-Clamp-
|
|
515 |
293650115 |
CLAMP-SPRING
Spring-Clamp-
|
|
700 |
276000265 |
TANK-COOLANT
Coolant-Tank-
|
|
720 |
276000100 |
PRESSURE CAP ASSY
Pressure-Cap-
|
|
740 |
207362060 |
SCREW-HEX CAP DIN933A2
Hex.-Screw-M6-X-20,-Scotch-Grip-
|
|
750 |
234062600 |
WASHER-FLAT DIN.9021B-A2
Flat-Washer-M6,-Stainless-
|
|
800 |
276000394 |
HOSE 6-4MM
Hose-6.4-mm-
|
|
810 |
293650170 |
HOSE CLAMP
Tridon-Gear-Clamp-
|
|
815 |
293650170 |
HOSE CLAMP
Tridon-Gear-Clamp-
|
|
830 |
409901800 |
TUBING - INSULATING 13 MM
Tubing-13-mm-
|
|
835 |
293750001 |
TIE-RAP 94MM
Tie-Rap-94-mm-
|
|
850 |
415080200 |
POLYURETHANE HOSE
Hose,-Polyurethane-
|
|
860 |
293750001 |
TIE-RAP 94MM
Tie-Rap-94-mm-
|
|
1000 |
276000376 |
HOSE-FORMED
Hose-Formed-
|
|
1010 |
293650051 |
CLAMP-TRIDON
Tridon-Gear-Clamp-
|
|
1015 |
293650051 |
CLAMP-TRIDON
Tridon-Gear-Clamp-
|
|
1020 |
409902200 |
TUBING-25MM
Tubing-25-mm-
|
|
1050 |
276000099 |
HOSE-19MM
Hose-19-mm-
|
|
1060 |
293650142 |
HOSE CLAMP
Hose-Clamp-
|
|
1065 |
293650051 |
CLAMP-TRIDON
Tridon-Gear-Clamp-
|
|
1090 |
293710153 |
FITTING-T
Fitting-T-
|
|
1200 |
276000151 |
HOSE-12 5MM (PC=1M)
Hose-12.5-mm-
|
|
1210 |
293650172 |
HOSE CLAMP
Tridon-Gear-Clamp-
|
|
1215 |
293650172 |
HOSE CLAMP
Tridon-Gear-Clamp-
|
|
1220 |
515175319 |
TUBING-22MM
Tubing-22-mm-
|
|
1250 |
276000151 |
HOSE-12 5MM (PC=1M)
Hose-12.5-mm-
|
|
1260 |
293650172 |
HOSE CLAMP
Tridon-Gear-Clamp-
|
|
1265 |
293650172 |
HOSE CLAMP
Tridon-Gear-Clamp-
|
|
1270 |
515175319 |
TUBING-22MM
Tubing-22-mm-
|
|
1290 |
293710132 |
FITTING-T
T-Fitting-
|
|
2000 |
276000244 |
HOSE-FORMED
Formed-Hose-
|
|
2010 |
293650172 |
HOSE CLAMP
Tridon-Gear-Clamp-
|
|
2015 |
293650012 |
CLAMP-OETIKER
Oetiker-Clamp-
|
|
2030 |
293710116 |
FITTING-T
T-Fitting-
|
|
2050 |
276000245 |
HOSE-FORMED
Lower-Formed-Hose-
|
|
2060 |
293650012 |
CLAMP-OETIKER
Oetiker-Clamp-
|
|
2065 |
293650172 |
HOSE CLAMP
Tridon-Gear-Clamp-
|
|
2100 |
276000246 |
HOSE-FORMED
Formed-Hose-
|
|
2110 |
293650030 |
CLAMP-OETIKER 185
Oetiker-Clamp-
|
|
2115 |
293650171 |
HOSE CLAMP
Tridon-Gear-Clamp-
|
|
2250 |
276000357 |
HOSE-FORMED
Hose-Formed-
|
|
2255 |
409902200 |
TUBING-25MM
Tubing-25-mm-
|
|
2260 |
293650142 |
HOSE CLAMP
Hose-Clamp-
|
|
2265 |
293650051 |
CLAMP-TRIDON
Tridon-Gear-Clamp-
|
|
2270 |
276000361 |
HOSE-FORMED
Hose-Formed-
|
|
2280 |
293650051 |
CLAMP-TRIDON
Tridon-Gear-Clamp-
|
|
2285 |
293650051 |
CLAMP-TRIDON
Tridon-Gear-Clamp-
|
|
2340 |
293720029 |
GROMMET
Grommet-
|
|
2345 |
414518500 |
CONNECTOR-MALE
Male-Connector-
|
|
2350 |
276000394 |
HOSE 6-4MM
Hose-6.4-mm-
|
|
2355 |
293650170 |
HOSE CLAMP
Tridon-Gear-Clamp-
|
|
2360 |
293650025 |
CLAMP-OETIKER
Oetiker-Gear-Clamp-
|
|
2500 |
276000336 |
COOLER
Cooler-
|
|
2505 |
278003329 |
COOLER PAD
Cooler-Pad-
|
|
2510 |
276000099 |
HOSE-19MM
Hose-19-mm-
|
|
2520 |
293650051 |
CLAMP-TRIDON
Tridon-Gear-Clamp-
|
|
2525 |
293650051 |
CLAMP-TRIDON
Tridon-Gear-Clamp-
|
|
2550 |
276000360 |
HOSE-FORMED
Hose-Formed-
|
|
2560 |
293650051 |
CLAMP-TRIDON
Tridon-Gear-Clamp-
|
|
2565 |
293650172 |
HOSE CLAMP
Tridon-Gear-Clamp-
|
|
2570 |
515175319 |
TUBING-22MM
Tubing-22-mm-
|
|
2600 |
276000362 |
HOSE
Hose-
|
|
2610 |
293650142 |
HOSE CLAMP
Hose-Clamp-
|
|
2615 |
293650142 |
HOSE CLAMP
Hose-Clamp-
|
|
2630 |
276000366 |
HOSE
Hose-
|
|
2640 |
293650051 |
CLAMP-TRIDON
Tridon-Gear-Clamp-
|
|
2645 |
293650142 |
HOSE CLAMP
Hose-Clamp-
|
|
2650 |
276000363 |
HOSE
Hose-
|
|
2660 |
293650142 |
HOSE CLAMP
Hose-Clamp-
|
|
2665 |
293650051 |
CLAMP-TRIDON
Tridon-Gear-Clamp-
|
|
2700 |
709200406 |
THERMOSTAT
Thermostat-
|
|
2710 |
276000367 |
HOSE
Hose-
|
|
2720 |
293650142 |
HOSE CLAMP
Hose-Clamp-
|
|
2725 |
293650051 |
CLAMP-TRIDON
Tridon-Gear-Clamp-
|
|
2730 |
409902200 |
TUBING-25MM
Tubing-25-mm-
|
|
4000 |
293750008 |
TIE-RAP 350MM
Tie-Rap-350-mm-
|
|
4050 |
414115200 |
TIE-RAP 180MM
Tie-Rap-180-mm-
|
|
4070 |
293750008 |
TIE-RAP 350MM
Tie-Rap-350-mm-
|
|
4100 |
414115200 |
TIE-RAP 180MM
Tie-Rap-180-mm-
|
|
4150 |
293750008 |
TIE-RAP 350MM
Tie-Rap-350-mm-
|
|
