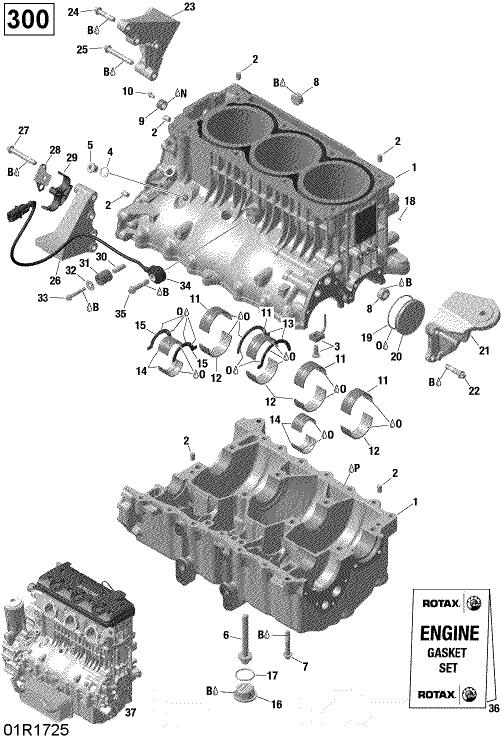

1-10

420893574

CYLINDER BLOCK W SLEEVES
Cylinder-Block-With-Sleeves-

2

420632010

PIN-CENTER
Center-Pin-8-X-12-

3

420956772

OIL SPRAY NOZZLE
Oil-Spray-Nozzle-

4

420250015

ALUMINUM WASHER
Washer,-Copper-

5

420841923

PLUG SCREW M12
Plug-Screw-M12-

6

420641120

TORX-RED SHAFT SCREW M11X147
Torx-Flanged-Screw-M10-X-82-

7

420641208

HEX FLANGED SCREW M8 X 45
Hex.-Flanged-Screw-M8-X-45-

8

420641317

PLUG SCREW
Plug-Screw-M20-X-1.5-

9

420232482

BUSHING-NEEDLE
Needle-Bushing-

10

420456431

OIL SPRAYING JET
Oil-Spraying-Jet-

11

420933456

PLAIN BEARING HALF
Plain-Half-Bearing-

12

420933466

PLAIN BEARING HALF
Plain-Half-Bearing-

13

420933475

RING HALF
Half-Ring-

14

420933442

PLAIN BEARING HALF
Plain-Bearing-Half-

15

420933470

RING HALF
Half-Ring-

16-17

420641171

PLUG SCREW M30
Plug-Screw-M30-X-1.5-

17

420631300

O-RING
O-Ring-

18

420249073

GROOVED PIN
Grooved-Pin-

19

420430405

O-RING
O-Ring-

20

420660110

PLUG COVER
Plug-Cover-

21

420811792

ENGINE BRACKET FRONT
Front-Engine-Bracket-

22

420641188

TORX FLANGE SCREW
Flanged-Torx-Screw-M8-X-35-

23

420811787

ENGINE BRACKET PTO EXH.
Engine-Bracket-PTO,-Exhaust-

24

420641188

TORX FLANGE SCREW
Flanged-Torx-Screw-M8-X-35-

25

420641213

TORX FLANGE SCREW
Flanged-Torx-Screw-M8-X-55-

26

420811782

ENGINE BRACKET PTO INL.
Engine-Bracket-PTO,-Intake-

27

420641213

TORX FLANGE SCREW
Flanged-Torx-Screw-M8-X-55-

28

420851740

RETAINING PLATE
Retaining-Plate-

29

420660290

HOSE BRACKET
Hose-Bracket-

30

420847971

SPACER
Spacer-

31

420660090

RUBBER BRACKET
Rubber-Bracket-

32

420827968

WASHER M6
Flat-Washer-M6-

33

420641258

SCREW TORX FLANGE M6 X 35
Flanged-Torx-Screw-M6-X-35-

34

420664031

KNOCK SENSOR
Noise-Sensor-

35

420641188

TORX FLANGE SCREW
Flanged-Torx-Screw-M8-X-35-

36

420889775

ENGINE GASKET SET
Engine-Gasket-Set-

37

420160310

ENGINE LONG BLOCK 1603 XHO
Engine-Long-Block,-1603-XHO-
