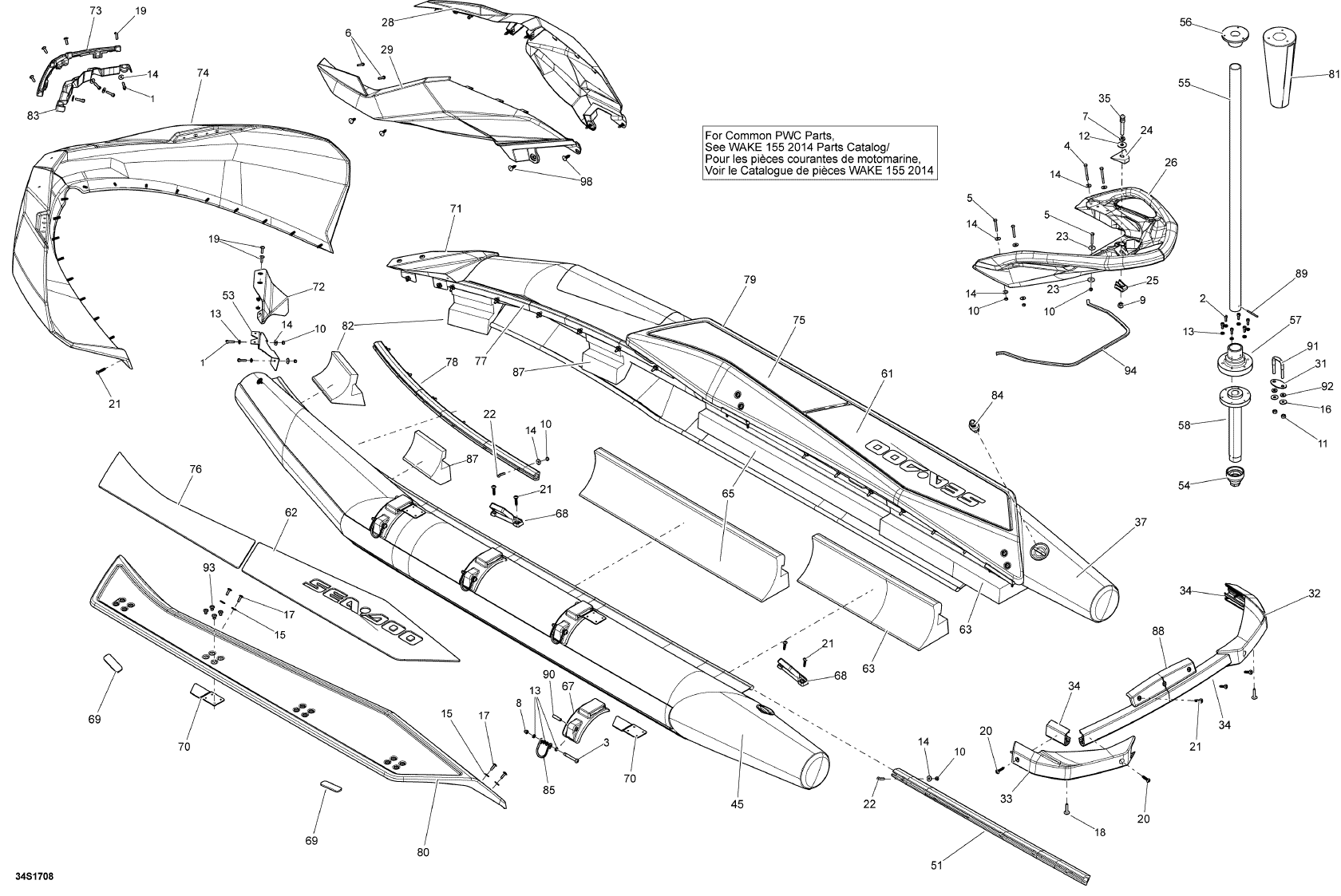

1

205062560

SCREW-SOCKET HD.DIN.912A2
Socket-Head-Screw-M6-X-25-

1

205062560

SCREW-SOCKET HD.DIN.912A2
Socket-Head-Screw-M6-X-25-

2

205561660

SCREW-SOCKET DIN.912A2 S.GRIP
Socket-Head-Screw-M6-X-16,-Scotch-Grip-

2

205561660

SCREW-SOCKET DIN.912A2 S.GRIP
Socket-Head-Screw-M6-X-16,-Scotch-Grip-

3

205566060

SCREW-SOCKET
Socket-Head-Screw-

3

205566060

SCREW-SOCKET
Socket-Head-Screw-

4

207065560

SCREW-HEX.CAP DIN.931A2
Hex.-Screw-M6-x-55-

4

207065560

SCREW-HEX.CAP DIN.931A2
Hex.-Screw-M6-x-55-

5

207164060

SCREW-HEX.CAP DIN.933A2
Hex.-Screw-M6-X-40-

5

207164060

SCREW-HEX.CAP DIN.933A2
Hex.-Screw-M6-X-40-

6

211000023

SCREW-PLASTITE HEX.WR.HD.UNSL
Hex.-Screw-10-14-X-7/8"-

6

211000023

SCREW-PLASTITE HEX.WR.HD.UNSL
Hex.-Screw-10-14-X-7/8"-

7

232100600

NUT-JAM HEXAGONAL DIN.439B-A2
Hex.-Jam-Nut-M10-

8

232361600

NUT-DOMED HEXAGONAL DIN.1587-A
Nut-M6-

9

232501200

NUT-STOP ELASTIC DIN
Elastic-Stop-Nut-M10,-Brass-

10

232561200

NUT-STOP ELASTIC DIN985
Elastic-Stop-Nut-M6,-Brass-

11

232581200

NUT-STOP ELASTIC DIN.985
Hex.-Elastic-Nut-M8,-Brass-

12

234002600

WASHER-FLAT DIN.9021B-A2
Flat-Washer-10-mm,-Stainless-

13

234061600

WASHER-FLAT DIN125A-A2
Flat-Washer-M6,-Stainless-

14

234062600

WASHER-FLAT DIN.9021B-A2
Flat-Washer-M6,-Stainless-

15

234062670

WASHER-FLAT DIN.9021 A2
Flat-Washer,-Stainless-

16

234082600

WASHER-FLAT DIN.9021B-A2
Flat-Washer-8-mm,-Stainless-

17

250000350

TORX-TRUSS M/S STLSS NYLON PATCH
Torx-Truss-Screw-M6-X-20-

18

250000399

HEXAGONE CAP SCREW M6.8
Hexagonal-Cap-Screw-M6-X35-

19

250000488

TORX-TRUSS M/S STLSS
Torx-Truss-Screw-M6-X-20-

20

250000709

【販売終了】SCREW-PLASTITE
Torx-Screw-M6.81-X-30-

21

291004284

SCREW THREAD 1/4-20 X 1 1/4
Thread-Screw-Filet-1/4-20-X-1-1/4-

22

250000744

TORX SCEW M6 X 30
Torx-Scew-M6-X-30-

23

250200022

WASHER-FLAT M6
Flat-Washer-M6.6-X-22-

24

269002125

SPACER
Seat-Stud-Spacer-

25

269002126

SUPPORT
Seat-Stud-Support-

26

291004625

REAR HANDLE ASSY
Black-Rear-Handle-

28

269501812

RH PANEL WHITE
White-RH-Cosmetic-Panel-

29

269501813

LH PANEL
White-LH-Cosmetic-Panel-

31

291001386

PLATE-FINITION
Finition-Plate,-Black-

32

291004153

BUMPER CORNER
RH-Bumper-Corner-

33

291004152

BUMPER CORNER
LH-Bumper-Corner-

33

291004152

BUMPER CORNER
LH-Bumper-Corner-

34

291003872

BUMPER
Lateral-Bumper-

34

291003872

BUMPER
Lateral-Bumper-

35

291003877

STUD-SEAT
Stud-Seat-

35

291003877

STUD-SEAT
Stud-Seat-

37

291003955

INFL BALLOON
RH-Float-Inflatable-Balloon-

37

291003955

INFL BALLOON
RH-Float-Inflatable-Balloon-

45

291003956

LH FLOAT INFLATABLE BALLO
LH-Float-Inflatable-Balloon-

45

291003956

LH FLOAT INFLATABLE BALLO
LH-Float-Inflatable-Balloon-

51

291003962

REAR BALLOON SLIDE RAIL
Rear-Balloon-Slide-Rail-

51

291003962

REAR BALLOON SLIDE RAIL
Rear-Balloon-Slide-Rail-

53

291003967

RH UPPER SUPPORT
RH-Upper-Support-

53

291003967

RH UPPER SUPPORT
RH-Upper-Support-

53

291003968

LH UPPER SUPPORT
LH-Upper-Support-

53

291003968

LH UPPER SUPPORT
LH-Upper-Support-

54

291003969

STOP BLOCK
Rod-Stopper-Block-

54

291003970

MAST ASSEMBLY
Mast-Ass'y-

55

291003970

MAST ASSEMBLY
Mast-Ass'y-

56

291003970

MAST ASSEMBLY
Mast-Ass'y-

57

291003970

MAST ASSEMBLY
Mast-Ass'y-

58

291003974

SUPPORT ASSEMB
Link-Bar-Support-Assembly-

58

291003969

STOP BLOCK
Rod-Stopper-Block-

61

291003979

RUNNING BOARD
RH-Rear-Foot-Pad-

62

291003980

MAT LEFT
LH-Rear-Foot-Pad-

63

291003989

REAR BALLOON SUPPORT
Rear-Balloon-Support-

65

291004051

FRONT BALLOON SUPPORT
Front-Balloon-Support-

67

291004054

Foot-Anchor-

68

291004055

FOOT SUPPORT
Foot-Support-

69

291004057

Rubber-Stopper-

70

291004058

FLOORBOARD MOUNTING PLATE
Floorboard-Mounting-Plate-

71

291004087

RH COVER SUPPORT
RH-Cover-Support-

72

291004088

LH COVER SUPPORT
LH-Cover-Support-

73

291004111

BUMPER SUPPORT MA
Bumper-Support-MA-

74

291004162

BUMPER WITH PROTECTIVE CO
Bumper-With-Protective-Coating-

75

291004113

RUNNING BOARD
RH-Front-Foot-Pad-

76

291004114

MAT LEFT
LH-Front-Foot-Pad-

77

291004115

RH FRONT BALLOON SLIDE RAIL
RH-Front-Balloon-Slide-Rail-

78

291004116

LH FRONT BALLOON SLIDE RAIL
LH-Front-Balloon-Slide-Rail-

79

291004118

RUNNING BOARD
RH-Floorboard-

80

291004119

RUNNING BOARD
LH-Floorboard-

81

291004128

FOAM
Pad-Foam-

82

291004151

FRONT BALLOON SUPPORT (SMALL
Front-Balloon-Support-(Small)-

83

291004160

BUMPER SUPP MA
Bumper-Support-MA-

84

291004166

AIR PUMP ADAPT
Air-Pump-Adaptor-

85

291004167

SHACKLE
Shackle-

87

291004187

MID BALLOON SUPPORT (SMALL)
Mid-Balloon-Support-(Small)-

88

291004213

SUPP STRETCHER
Appui-Civi&egrave；re-

89

291004214

SPRING PIN M4 X 50
Spring-Pin-M4-X-50-

90

291004219

SHACKLE SPACER BUSHING
Shackle-Spacer-Bushing-

91

292000933

UCLAMP
U-Clamp-

92

293050001

WASHER-8MM
Flat-Washer-

93

293150186

RIVET-POP 3/16
Pop-Rivet-3/16-

94

293250218

GASKET
Gasket-

98

293730006

DART-BLACK
Black-Dart-
