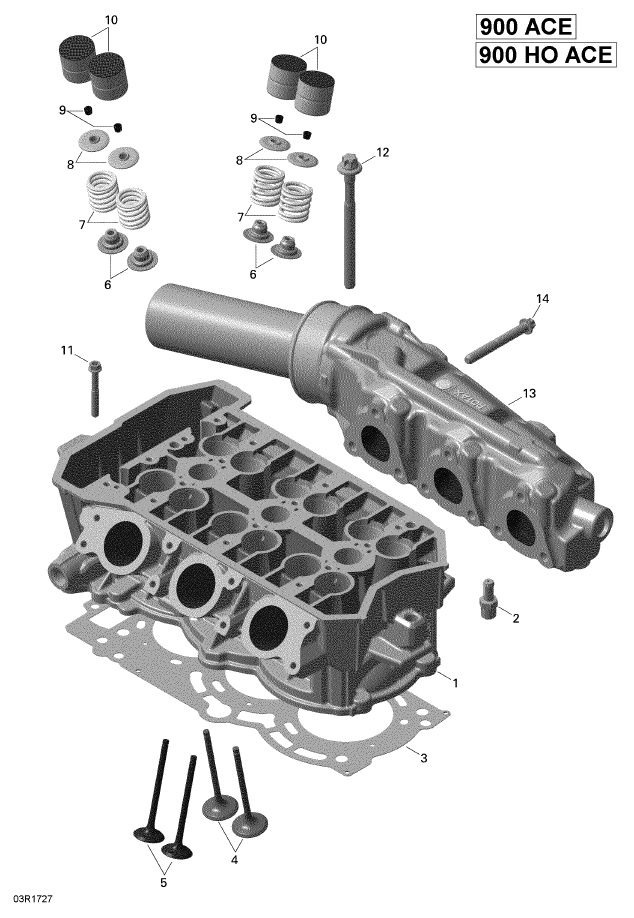

見出番号 |
部品番号 |
部品名 |
数量 |
1 |
420623877 |
HEAD-CYLINDER
Cylinder-Head-
|
|
2 |
420441420 |
HOSE NIPPLE
Hose-Nipple-
|
|
3 |
420431812 |
CYLINDER HEAD GASKET
Cylinder-Head-Gasket-
|
|
4 |
420855130 |
INTAKE VALVE 29MM
Intake-Valve,-29-mm-
|
|
5 |
420855145 |
EXHAUST VALVE
Exhaust-Valve,-25-mm-
|
|
6 |
420431671 |
VALVE STEM SEAL
Valve-Stem-Seal-
|
|
7 |
420939540 |
VALVE SPRING
Valve-Spring-
|
|
8 |
420855150 |
VALVE SPRING RETAINER
Valve-Spring-Retainer-
|
|
9 |
420254630 |
VALVE-COTTER
Cotter-Valve-
|
|
10 |
420855164 |
VALVE LIFTER BUCKET
Valve-Lifter-Bucket-Bloc-
|
|
11 |
420440324 |
SCREW
Flanged-Torx-Screw-M6-X-45-
|
|
12 |
420940945 |
TORX-REDUCED SHAFT SCREW M9X113
Flanged-Torx-Screw-M9-X-113-
|
|
13 |
420673510 |
EXHAUST MANIFOLD
Exhaust-Manifold-
|
|
14 |
420640333 |
FLANGED TORX SCREW M8 X 6
Flanged-Torx-Screw-M8-x-65-
|
|
