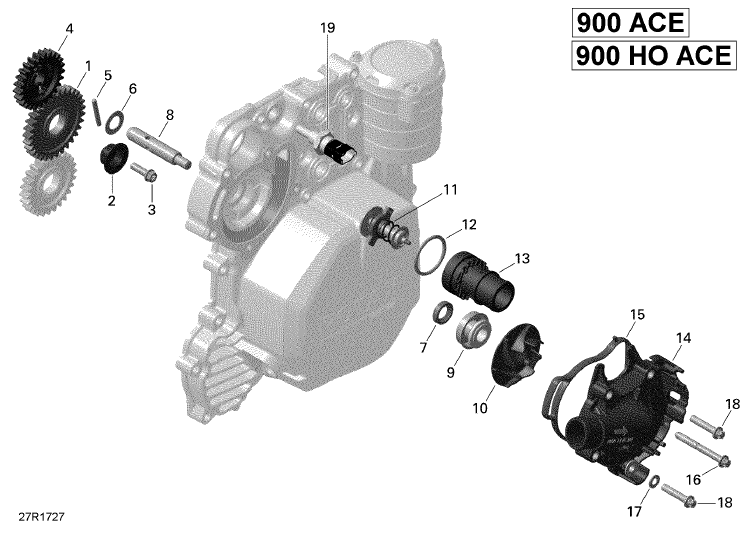

1

420835059

IDLE GEAR 31TH
Idle-Gear,-31-Teeth-

2

420947394

GRADUATED SPACER
Spacer-

3

420440207

SCREW TORX FLANGE M6 X 20
Flanged-Torx-Screw-M6-X-20-

4

420835230

WATER PUMP GEAR
Water-Pump-Gear-

5

420232431

NEEDLE PIN
Needle-Pin-

6

420827261

WASHER-THRUST
Thrust-Washer-

7

420931802

SEAL-OIL
Oil-Seal-

8

420820150

WATERPUMP SHAFT
Waterpump-Shaft-

9

420850946

SEAL
Seal-

10

420222880

IMPELLER-WATER
Water-Impeller-

11

420822651

THERMOSTAT
Thermostat-80°-

12

420950893

O RING
O-Ring-

13

420922155

THERMOSTAT COVER
Thermostat-Cover-

14

420922292

WATER PUMP HOUSING
Water-Pump-Housing.-Includes-14-to-15-

15

420431680

GASKET
Gasket-

16

420840673

FLANGED TORX SCREW M6 X 5
Flanged-Torx-Screw-M6-X-55-

17

404146600

WASHER-SEALING
Sealing-Washer-

18

420840663

FLANGED TORX SCREW M6 X 3
Flanged-Torx-Screw-M6-X-30-

19

278002895

SENSOR-LIQUID
Temperature-Sensor-
