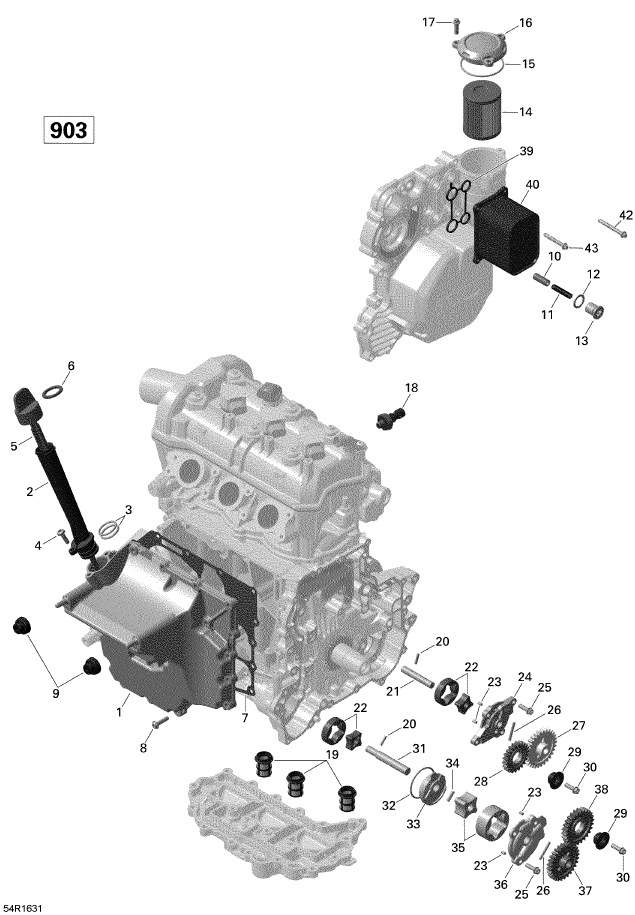

1

420656705

OIL SUMP COVER
Oil-Sump-Cover-

2

420656900

OIL FILLER TUBE
Oil-Filler-Tube-

3

420430440

O RING
O-Ring-

4

420441383

FLANGED TORX SCREW M6 X 2
Flanged-Torx-Screw-M6-X-20-

5

420856667

OIL LEVER TUBE
Oil-Lever-Tube.-Includes-5-to-6-

6

420431790

GASKET RING
Gasket-Ring-

7

420431840

GASKET
Gasket-

8

420841548

FLANGED TORX SCREW M6 X 2
Flanged-Torx-Screw-M6-X-25-

9

420860150

RUBBER GROMMET
Rubber-Grommet-

10

420256518

PRESSION REGULATING PISTON
Pression-Regulating-Piston-

11

420239445

SPRING
Spring-

12

420430623

GASKET RING A
Gasket-Ring-

13

420441373

PLUG SCREW
Plug-Screw-

14

420956123

FILTER　SPARK用
Oil-Filter-

15

420650500

O RING
O-Ring-

16

420612131

OIL FILTER COVER
Oil-Filter-Cover-

17

420441693

FLANGED TORX SCREW M6 X 2
Flanged-Torx-Screw-M6-X-20-

18

420856536

OIL PRESSURE SWITCH
Oil-Pressure-Switch-

19

420656680

SIEVE-OIL
Oil-Sieve-

20

420232731

PIN-NEEDLE
Needle-Pin-

21

420820120

SHAFT-PUMP OIL
Oil-Pump-Shaft-

22

420256348

ROTOR-PUMP OIL
Oil-Pump-Rotor-

23

420929075

PIN-NEEDLE
Needle-Pin-

24

420911080

COVER-PUMP OIL
Oil-Pump-Cover-

25

420440207

SCREW TORX FLANGE M6 X 20
Flanged-Torx-Screw-M6-X-20-

26

420232431

NEEDLE PIN
Needle-Pin-

27

420834882

GEAR-PUMP OIL
Oil-Pump-Gear,-29-Teeth-

28

420835400

IDLE GEAR 22 TEETH
Idle-Gear,-22-Teeth-

29

420947394

GRADUATED SPACER
Spacer-

30

420440207

SCREW TORX FLANGE M6 X 20
Flanged-Torx-Screw-M6-X-20-

31

420837916

SHAFT-PUMP OIL
Oil-Pump-Shaft-

32

420631830

O RING
O-Ring-

33

420611950

COVER-PUMP OIL
Oil-Pump-Cover-

34

420632220

PIN-NEEDLE
Needle-Pin-

35

420256836

ROTOR-PUMP OIL
Oil-Pump-Rotor-

36

420611980

COVER-PUMP OIL
Oil-Pump-Cover-

37

420834887

GEAR-PUMP OIL
Oil-Pump-Gear,-28-Teeth-

38

420835321

IDLE GEAR 26 TH
Idle-Gear,-26-Teeth-

39

420431870

GASKET
Gasket-

40

420656000

OIL RADIATOR
Oil-Radiator-

42

420840673

FLANGED TORX SCREW M6 X 5
Flanged-Torx-Screw-M6-X-55-

43

420641198

TORX FLANGE SCREW
Flanged-Torx-Screw-M6-X-45-
