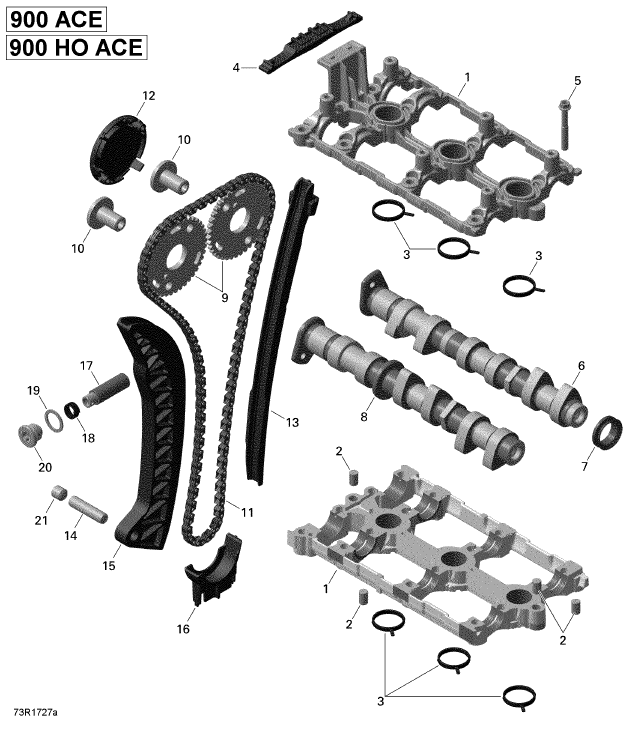

1

420911475

CAMSHAFT HOUSING ASS Y
Camshaft-Housing-Ass'y.-Includes-1-to-2-

2

420632010

PIN-CENTER
Center-Pin-8-X-12-

3

420431760

GASKET
Gasket-

4

420936500

CHAIN GUIDE UPPER
Chain-Guide,-Upper-

5

420440324

SCREW
Flanged-Torx-Screw-M6-X-45-

6

420820210

CAMSHAFT EXHAUST
Camshaft-Exhaust-

7

420630127

V RING
V-Ring-

8

420820200

CAMSHAFT INTAKE
Camshaft-Intake-

9

420855120

CAMSHAFT SPROCKET 40 T
Camshaft-Sprocket,-40-Teeth-

10

420441360

FLAT SCREW M14X1-5
Flat-Head-Screw-M14-X-1.5-

11

420297086

CAMSHAFT CHAIN
Camshaft-Chain-

12

420460920

COVER
Cover-

13

420936010

CHAIN GUIDE
Chain-Guide-

14

420929937

PIN-NEEDLE
Needle-Pin-

15

420936020

CHAIN TENSION GUIDE
Chain-Tension-Guide-

16

420936510

CHAIN GUIDE
Chain-Guide-

17

420236256

CHAIN TENSIONER
Chain-Tensioner-

18

420238732

COMPRESSION SPRING
Compression-Spring-

19

420430623

GASKET RING A
Gasket-Ring-

20

420840593

PLUG SCREW
Plug-Screw-

21

420840508

PIN-THREADED
Threaded-Pin-
