純正パーツカタログよりご注文又はお見積

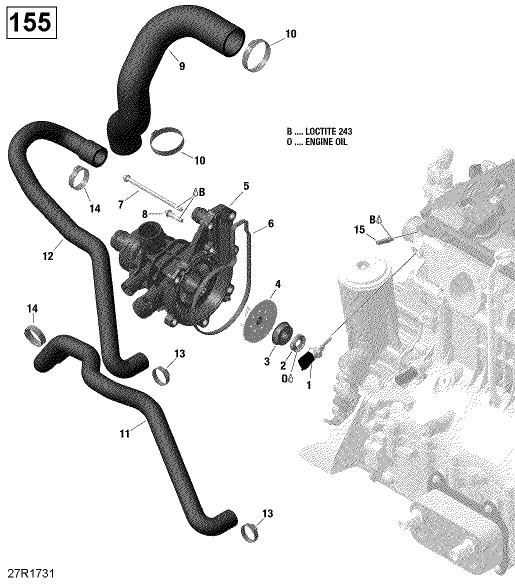

BRP　SEA DOO  2017年式  WAKE Family ＞ Engine Cooling - 130-155 Model Without Suspension
>>セクション一覧    >>モデル一覧

見出番号

部品番号

部品名

数量

1

278002895

SENSOR-LIQUID
Temperature-Sensor-

2

420650310

【品番変更→420650315 】OIL SEAL
Oil-Seal-

3

420650370

SEAL-OIL
Rotary-Seal-

4

420922801

IMPELLER
Impeller-

5-6

420922686

WATER PUMP HOUSING
Water-Pump-Housing-Ass'y-

6

420950840

GASKET
Gasket-

7

420641338

TORX FLANGE SCREW
Torx-Flanged-Screw-M6-X-105-

8

420641238

SCREW-TORX FLANGE
Flanged-Torx-Screw-M6-X-25-

9

420922825

FORMED HOSE
Formed-Hose-

10

420851683

GEAR CLAMP
Gear-Clamp-

11

420922798

FORMED HOSE
Formed-Hose-

12

420922792

FORMED HOSE
Formed-Hose-

13

420851668

GEAR CLAMP
Gear-Clamp-

14

420851673

GEAR CLAMP
Gear-Clamp-

15

XXX


Hose-Nipple-
