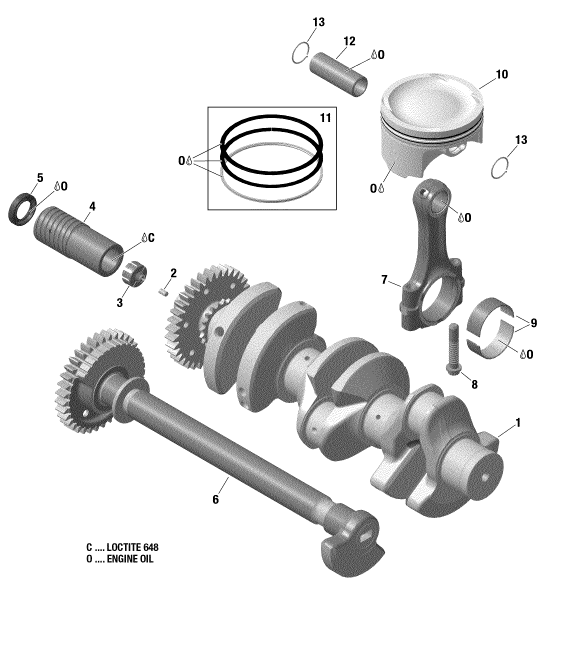

見出番号 |
部品番号 |
部品名 |
数量 |
1-2 |
420819495 |
CRANKSHAFT ASSY
CrankshaftAss'y*1
|
|
2 |
420929650 |
PIN-DRIVE 5X10
DrivePin5X10*1
|
|
3 |
420660280 |
STOP SLEEVE
StopSleeve*1
|
|
4 |
420947770 |
OUTPUT SLEEVE
OutputSleeve*1
|
|
5 |
420630551 |
SEALING
SealingRing*1
|
|
6 |
420820275 |
BALANCE SHAFT ASSY
BalanceShaftAss'y*1
|
|
7-8 |
420917757 |
CONNECTING ROD ASSY
ConnectingRodAss'y*3
|
|
8 |
420640990 |
CONNECTING ROD SCREW
ConnectingRodScrew*2
|
|
9 |
420933523 |
PLAIN BUSHING
Half-Bearing*6
|
|
10-11 |
420892738 |
PISTON ASS 99.94mm
PistonAss'y,99.94mm*3
|
|
11 |
420890385 |
PISTON SET RING
PistonSetRing,Standard*1
|
|
12 |
420916472 |
PISTON PIN
PistonPin*3
|
|
13 |
420245436 |
CIRCLIP-#22
PistonCirclip*6
|
|
