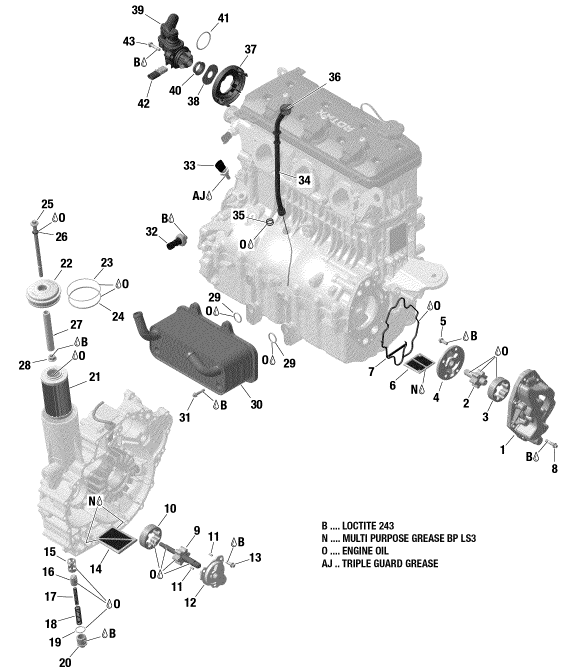

1

420812725

OIL PUMP HOUSING
OilPumpHousing*1

2

420837543

PUMP SHAFT ASSY
OilPumpShaft*1

3

420956675

OUTER ROTOR 16MM
OilPumpRotor16mm*1

4

420811850

OIL PUMP COVER
OilPumpCover*1

5

420641048

TORX FLANGE SCREW
FlangedTorxScrewM6X16*4

6

420856520

OIL SIEVE
OilSieve*1

7

420631486

GASKET
Gasket*1

8

420641238

SCREW-TORX FLANGE
FlangedTorxScrewM6X25*8

9

420837472

PUMP SHAFT ASSY
PumpShaftAss'y*1

10

420956675

OUTER ROTOR 16MM
OilPumpRotor16mm*1

11

420929070

NEEDLE PIN
NeedlePin*2

12

420811590

OIL PUMP COVER
OilPumpCover*1

13

420641048

TORX FLANGE SCREW
FlangedTorxScrewM6X16*3

14

420956950

OIL SIEVE
OilSieve*1

15

420256606

VALVE SEAT SLEEVE
ValveSeatSleeve*1

16

420256630

VALVE-PISTON
PistonValve*1

17

420939401

COMPRESSION SPRING
CompressionSpring*1

18

420939211

COMPRESSION SPRING
CompressionSpring*1

19

420230890

O RING
O-Ring*1

20

420641052

PLUG SCREW M20
PlugScrewM20X1.5*1

21

420956744

FILTER OIL　ROTAX1603ACEHO
OilFilter*1

22

420612080

OIL FILTER COVER
OilFilterCover*1

23

420850500

RING-O
O-Ring*1

24

420230920

O-RING
O-Ring*1

25

420641103

SCREW-HEX.M8
Hex.ScrewM8X140.5*1

26

420950860

O-RING
O-Ring*1

27

420857229

SPACER
Spacer*1

28

420842610

HEX NUT M8
Hex.NutM8*1

29

420250055

O-RING
O-Ring*2

30

420888875

OIL RADIATOR
OilRadiator*1

31

420641238

SCREW-TORX FLANGE
FlangedTorxScrewM6X25*4

32

420256919

OIL PRESSURE SWITCH
OilPressureSwitch*1

33

278002895

SENSOR-LIQUID
TemperatureSensor*1

34-35

420956944

OIL LEVEL TUBE
OilLevelTube*1

35

420950810

O-RING
O-Ring*2

36

420956932

OIL LEVEL GAUGE
OilLevelGauge*1

37

420660037

COVER
Cover*1

38

420627494

THRUST WASHER
ThrustWasher*1

39-42

420856504

VENT VALVE ASSY
VentValveAss'y*1

40

420630125

V-RING
V-Ring*1

41

420950870

O-RING
O-Ring*1

42

420665951

TOPS SWITCH
TOPSSwitch*1

43

420641238

SCREW-TORX FLANGE
FlangedTorxScrewM6X25*2
