見出番号 |
部品番号 |
部品名 |
数量 |

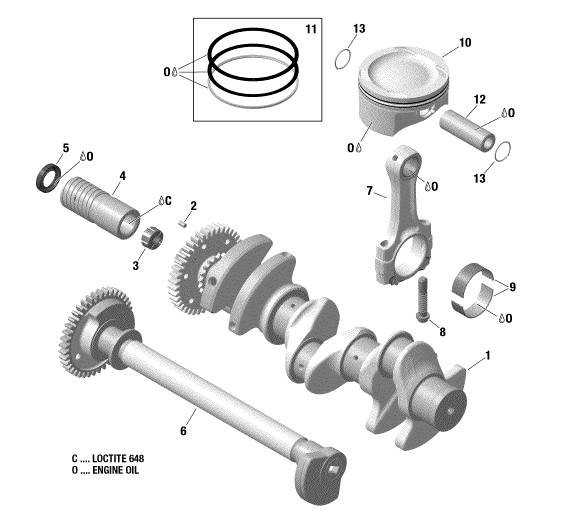

1-2 |
420819348 |
CRANKSHAFT ASSY.
CrankshaftAss'y*1
|
|
2 |
420929650 |
PIN-DRIVE 5X10
DrivePin5X10*1
|
|
3 |
420660280 |
STOP SLEEVE
StopSleeve*1
|
|
4 |
420947770 |
OUTPUT SLEEVE
OutputSleeve*1
|
|
5 |
420630551 |
SEALING
SealingRing*1
|
|
6 |
420837556 |
BALANCE SHAFT ASSY
BalanceShaftAss'y*1
|
|
7-9 |
420917516 |
CONNECTING ROD ASSY.
ConnectingRodAss'y*3
|
|
8 |
420640990 |
CONNECTING ROD SCREW
ConnectingRodScrew*2
|
|
9 |
420933510 |
BEARING SLEEVE
BearingSleeve*1
|
|
10-11 |
420892735 |
PISTON-ASSY
PistonAss'y,Standard,99.94mm*3
|
|
11 |
420890385 |
PISTON SET RING
PistonSetRing,Standard*1
|
|
12 |
420216250 |
PISTON PIN
PistonPin*3
|
|
13 |
420845580 |
MONOHOOK CIRCLIP
Circlip*6
|
|
