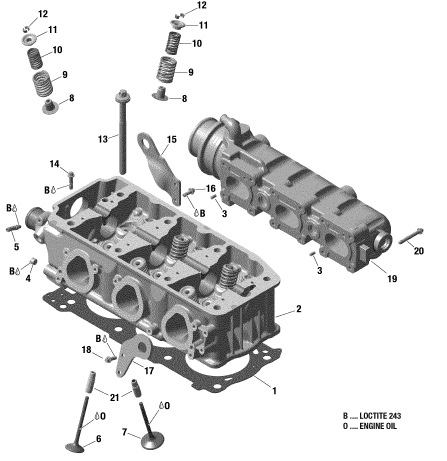

見出番号 |
部品番号 |
部品名 |
数量 |
1 |
420950772 |
CYLINDER HEAD GASKET
CylinderHeadGasket*1
|
|
2-5 |
420413258 |
CYLINDER HEAD ASS Y
CylinderHeadAss'y*1
|
|
3 |
420929650 |
PIN-DRIVE 5X10
DrivePin5X10*2
|
|
4 |
420641323 |
SCREW
PlugScrewM10X1*1
|
|
5 |
420924724 |
HOSE NIPPLE
HoseNipple*1
|
|
6 |
420254682 |
EXHAUST VALVE
ExhaustValve,31mm*6
|
|
7 |
420254298 |
INTAKE VALVE 38 MM
IntakeValve,38mm*6
|
|
8 |
420630202 |
VALVE STEM SEAL
ValveSteamSeal*12
|
|
9 |
420238180 |
VALVE SPRING
ValveSpring*12
|
|
10 |
420838280 |
VALVE SPRING INSIDE
ValveSpringInside*12
|
|
11 |
420254283 |
VALVE SPRING RETAINER
ValveSpringRetainer*12
|
|
12 |
420253645 |
VALVE COTTER
ValveCotter*24
|
|
13 |
420641115 |
TORX FLANGED SCREW M11 X 147
TorxFlangedScrewM11X147*8
|
|
14 |
420641238 |
SCREW-TORX FLANGE
FlangedTorxScrewM6X25*2
|
|
15 |
420851618 |
TRANSPORT BRACKET PTO
TransportBracketPTO*1
|
|
16 |
420641048 |
TORX FLANGE SCREW
FlangedTorxScrewM6X16*2
|
|
17 |
420951382 |
TRANSPORT BRACKET FRONT
TransportBracket*1
|
|
18 |
420641048 |
TORX FLANGE SCREW
FlangedTorxScrewM6X16*2
|
|
19 |
420673294 |
ENGINE EXHAUST MANIFOLD
EngineExhaustManifold*1
|
|
20 |
420641198 |
TORX FLANGE SCREW
FlangedTorxScrewM6X45*12
|
|
21 |
420254882 |
VALVE GUIDE
ValveGuide*12
|
|
