1-10

420893585

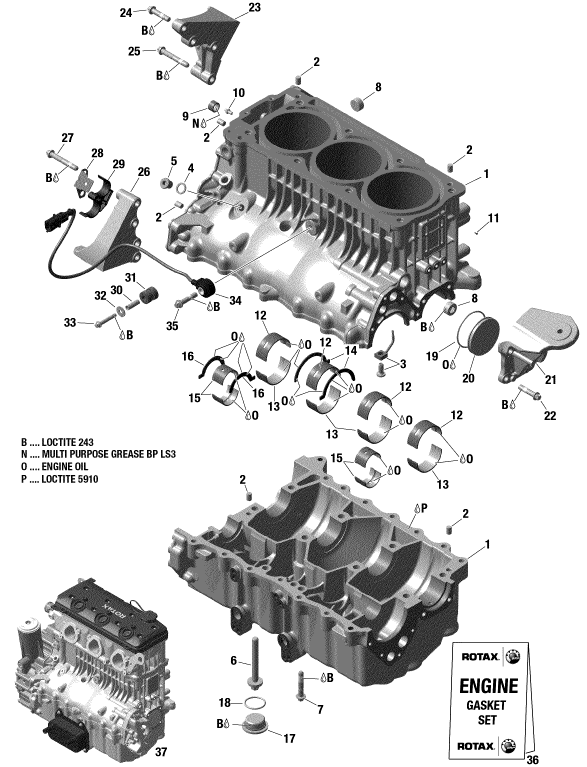

CYLINDER BLOCK 1503
CylinderBlock1503*1

2

420632010

PIN-CENTER
CenterPin8X12*4

3

420956827

OIL SPRAY NOZZLE
OilSprayNozzle*3

4

420250015

ALUMINUM WASHER
Washer,Copper*1

5

420841923

PLUG SCREW M12
PlugScrewM12*1

6

420641120

TORX-RED SHAFT SCREW M11X147
TorxFlangedScrewM10X82*8

7

420641208

HEX FLANGED SCREW M8 X 45
Hex.FlangedScrewM8X45*15

8

420641317

PLUG SCREW
PlugScrewM20X1.5*2

9

420232482

BUSHING-NEEDLE
NeedleBushing*1

10

420456431

OIL SPRAYING JET
OilSprayingJet*1

11

420249073

GROOVED PIN
GroovedPin*2

12

420933456

PLAIN BEARING HALF
PlainHalf-Bearing*4

13

420933466

PLAIN BEARING HALF
PlainHalf-Bearing*4

14

420933475

RING HALF
Half-Ring*2

15

420933442

PLAIN BEARING HALF
PlainBearingHalf*4

16

420933470

RING HALF
Half-Ring*2

17-18

420641171

PLUG SCREW M30
PlugScrewM30X1.5*8

18

420631300

O-RING
O-Ring*1

19

420430405

O-RING
O-Ring*1

20

420660110

PLUG COVER
PlugCover*1

21

420811794

FRONT ENGINE BRACKET
FrontEngineBracket*1

22

420641188

TORX FLANGE SCREW
FlangedTorxScrewM8X35*4

23

420811788

ENGINE BRACKET PTO. EXHAUST
EngineBracketPTO,Exhaust*1

24

420641188

TORX FLANGE SCREW
FlangedTorxScrewM8X35*2

25

420641213

TORX FLANGE SCREW
FlangedTorxScrewM8X55*2

26

420811784

ENGINE BRACKET PTO. INTAKE
EngineBracketPTO,Exhaust*1

27

420641213

TORX FLANGE SCREW
FlangedTorxScrewM8X55*4

28

420851740

RETAINING PLATE
RetainingPlate*1

29

420660290

HOSE BRACKET
HoseBracket*1

30

420847971

SPACER
Spacer*2

31

420660090

RUBBER BRACKET
RubberBracket*2

32

420827968

WASHER M6
FlatWasherM6*2

33

420641258

SCREW TORX FLANGE M6 X 35
FlangedTorxScrewM6X35*2

34

420664031

KNOCK SENSOR
NoiseSensor*1

35

420641188

TORX FLANGE SCREW
FlangedTorxScrewM8X35*1

36

420889776

ENGINE GASKET SET
EngineGasketSet*1

37

420150333

ENGINE LONG BLOCK 1503 HO
EngineLongBlock,1503*1
