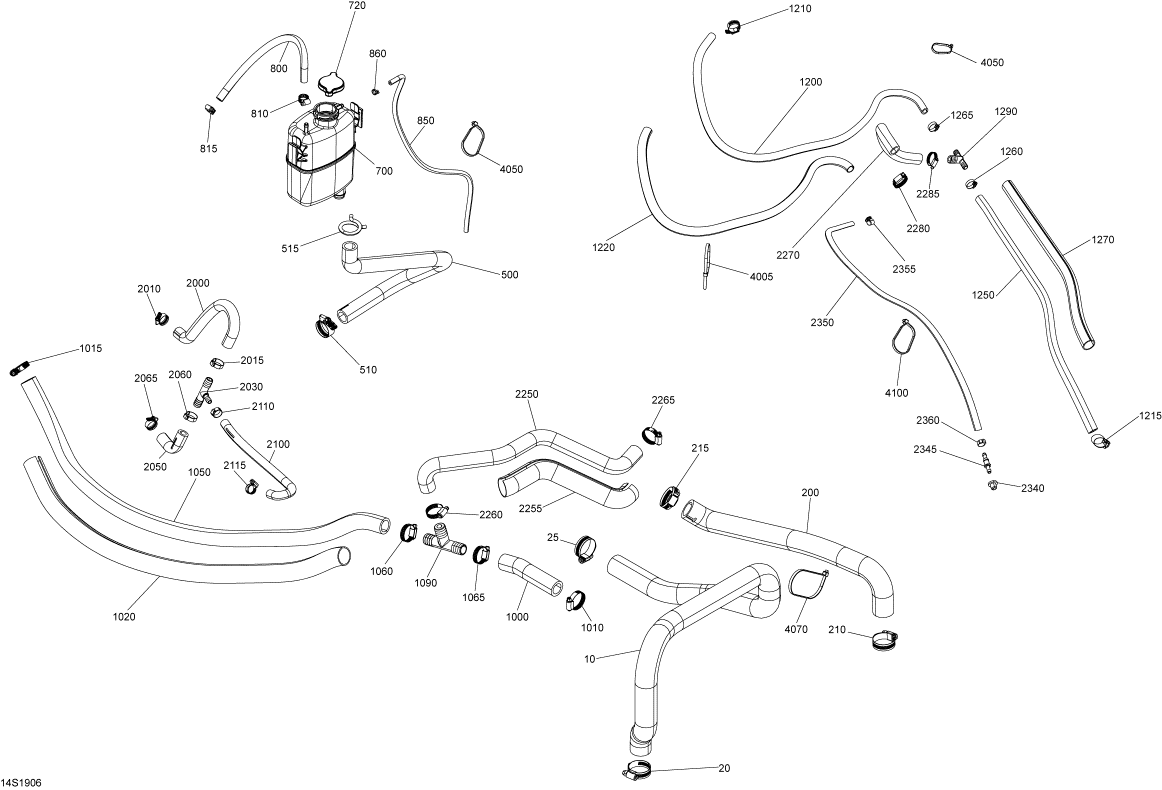

見出番号 |
部品番号 |
部品名 |
数量 |
10 |
276000426 |
HOSE-LEFT
RadiatorHose*1
|
|
20 |
293650280 |
CLAMP GEAR
ClampGear*1
|
|
25 |
293650280 |
CLAMP GEAR
ClampGear*1
|
|
200 |
276000248 |
HOSE-RIGHT
RHRadiatorHose*1
|
|
210 |
293650280 |
CLAMP GEAR
ClampGear*1
|
|
215 |
293650280 |
CLAMP GEAR
ClampGear*1
|
|
500 |
276000364 |
HOSE-MOLDED
Hose-Molded*1
|
|
510 |
293650290 |
CLAMP GEAR
ClampGear*1
|
|
515 |
293650115 |
CLAMP-SPRING
SpringClamp*1
|
|
700 |
276000086 |
TANK-COOLANT
CoolantTank*1
|
|
720 |
276000100 |
PRESSURE CAP ASSY
PressureCap*1
|
|
800 |
276000394 |
HOSE 6-4MM
Hose6.4mm*1
|
|
810 |
293650287 |
CLAMP GEAR
ClampGear*1
|
|
815 |
293650287 |
CLAMP GEAR
ClampGear*1
|
|
850 |
293830193 |
POLYURETHANE HOSE
PolyurethaneHose*1
|
|
860 |
293750001 |
TIE-RAP 94MM
Tie-Rap94mm*1
|
|
1000 |
276000158 |
HOSE-19MM (PC=1M)
Hose19mm*1
|
|
1010 |
293650284 |
CLAMP GEAR
ClampGear*1
|
|
1015 |
293650284 |
CLAMP GEAR
ClampGear*1
|
|
1020 |
409902200 |
TUBING-25MM
Tubing25mm*1
|
|
1050 |
276000158 |
HOSE-19MM (PC=1M)
Hose19mm*1
|
|
1060 |
293650284 |
CLAMP GEAR
ClampGear*1
|
|
1065 |
293650284 |
CLAMP GEAR
ClampGear*1
|
|
1090 |
293710131 |
FITTING-T
T-Fitting*1
|
|
1200 |
296000303 |
HOSE 12.5MM 3M/PAC
Hose12.5mm*1
|
|
1210 |
293650285 |
CLAMP GEAR
ClampGear*1
|
|
1215 |
293650285 |
CLAMP GEAR
ClampGear*1
|
|
1220 |
515175319 |
TUBING-22MM
Tubing22mm*1
|
|
1250 |
296000303 |
HOSE 12.5MM 3M/PAC
Hose12.5mm*1
|
|
1260 |
293650285 |
CLAMP GEAR
ClampGear*1
|
|
1265 |
293650285 |
CLAMP GEAR
ClampGear*1
|
|
1270 |
515175319 |
TUBING-22MM
Tubing22mm*1
|
|
1290 |
293710132 |
FITTING-T
T-Fitting*1
|
|
2000 |
276000244 |
HOSE-FORMED
FormedHose*1
|
|
2010 |
293650285 |
CLAMP GEAR
ClampGear*1
|
|
2015 |
293650012 |
CLAMP-OETIKER
OetikerClamp*1
|
|
2030 |
293710116 |
FITTING-T
T-Fitting*1
|
|
2050 |
276000245 |
HOSE-FORMED
LowerFormedHose*1
|
|
2060 |
293650012 |
CLAMP-OETIKER
OetikerClamp*1
|
|
2065 |
293650285 |
CLAMP GEAR
ClampGear*1
|
|
2100 |
276000246 |
HOSE-FORMED
FormedHose*1
|
|
2110 |
293650030 |
CLAMP-OETIKER 185
OetikerClamp*1
|
|
2115 |
293650285 |
CLAMP GEAR
ClampGear*1
|
|
2250 |
276000422 |
FORMED HOSE
FormedHose*1
|
|
2255 |
409902200 |
TUBING-25MM
Tubing25mm*1
|
|
2260 |
293650284 |
CLAMP GEAR
ClampGear*1
|
|
2265 |
293650284 |
CLAMP GEAR
ClampGear*1
|
|
2270 |
276000423 |
FORMED HOSE
FormedHose*1
|
|
2280 |
293650284 |
CLAMP GEAR
ClampGear*1
|
|
2285 |
293650284 |
CLAMP GEAR
ClampGear*1
|
|
2340 |
293720029 |
GROMMET
Grommet*1
|
|
2345 |
414518500 |
CONNECTOR-MALE
MaleConnector*1
|
|
2350 |
276000394 |
HOSE 6-4MM
Hose6.4mm*1
|
|
2355 |
293650287 |
CLAMP GEAR
ClampGear*1
|
|
2360 |
293650025 |
CLAMP-OETIKER
OetikerGearClamp*1
|
|
4005 |
293750008 |
TIE-RAP 350MM
Tie-Rap350mm*1
|
|
4050 |
414115200 |
TIE-RAP 180MM
Tie-Rap180mm*1
|
|
4070 |
293750008 |
TIE-RAP 350MM
Tie-Rap350mm*1
|
|
4100 |
414115200 |
TIE-RAP 180MM
Tie-Rap180mm*1
|
|
